24-port NWay Ethernet Switch User’s Guide

122 Web-Based Network Management

Note: You cannot mirror a fast port onto a slower port. For

example, if you try to mirror the traffic from a 100

Mbps port onto a 10 Mbps port, this can cause

throughput problems. The port you are copying frames

from should always support an equal or lower speed

than the port to which you are sending the copies.

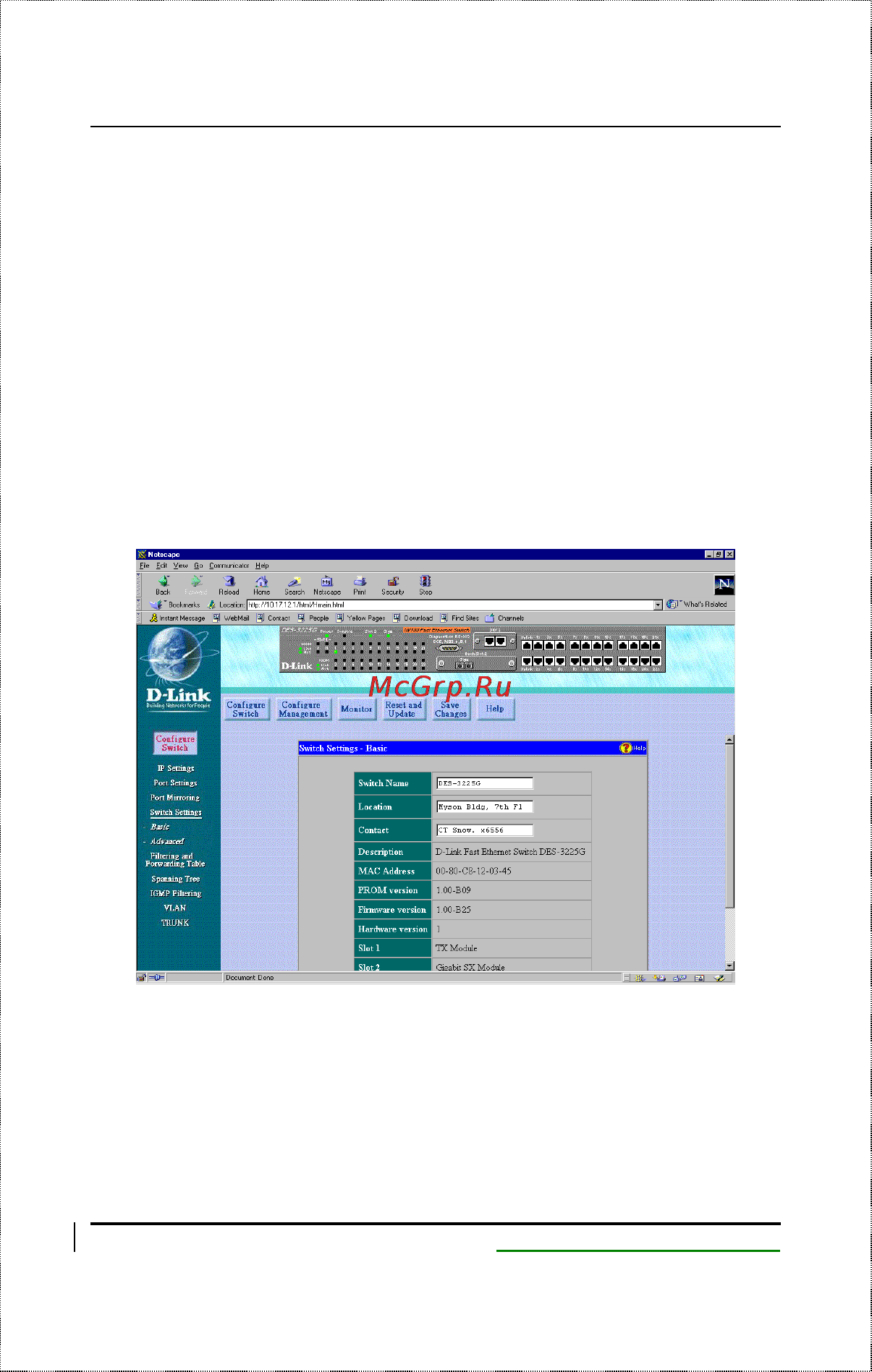

Switch Settings

Basic

To set basic switch settings, enter a Switch Name in the first

field, the physical location of the Switch in the Location field, and

the name of the contact person should a problem with the Switch

occur in the Contact field. Then click Apply.

The information is described as follows:
