D-Link DES-2108/E [163/199] Console port settings

24-port NWay Ethernet Switch User’s Guide

Web-Based Network Management 149

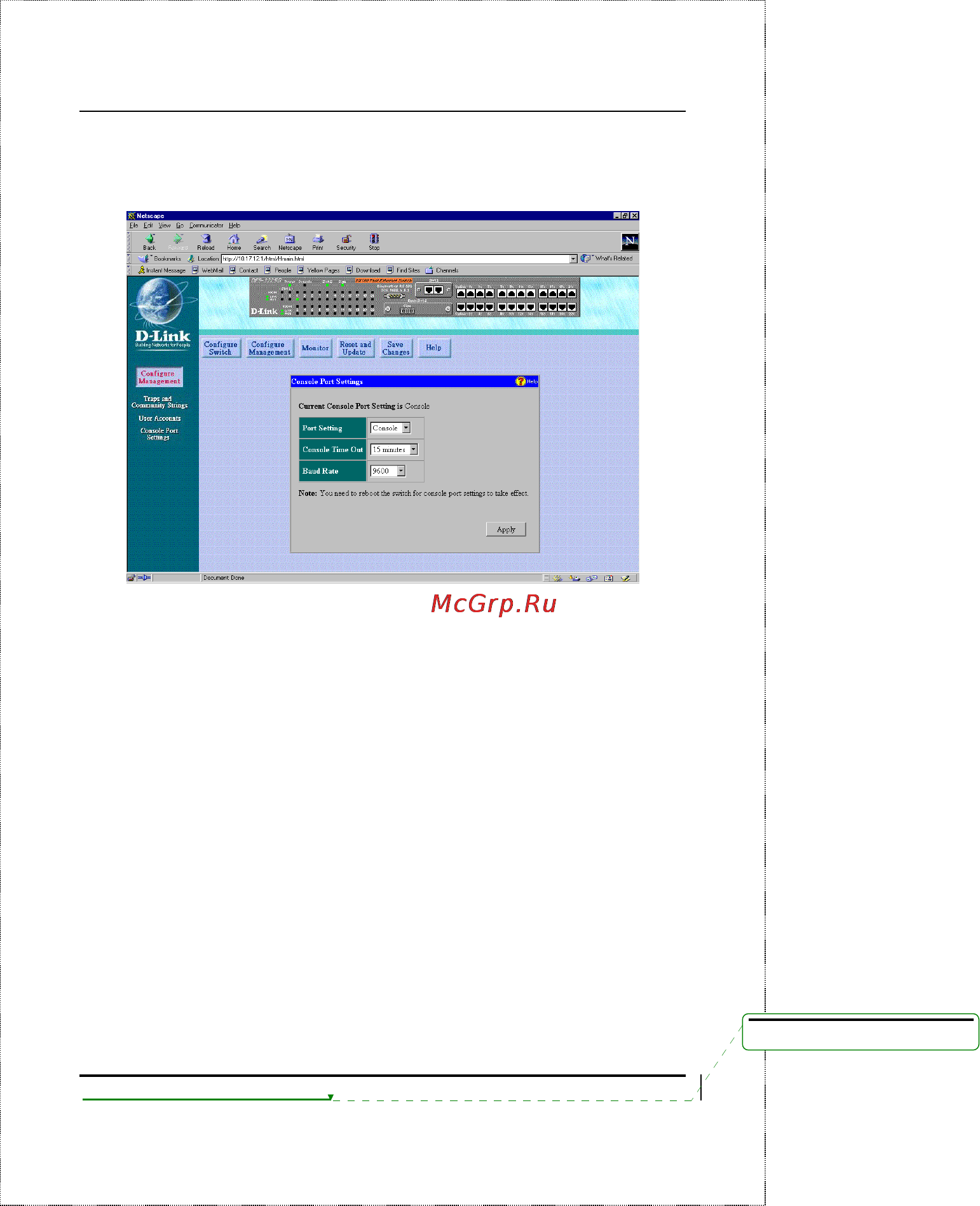

Console Port Settings

This window allows you to select the protocol for

communicating through the console port, Console or SLIP, in

the Port Setting field. Use SLIP for out-of-band

management. You can also choose the refresh rate in the

Console Time Out field (15 minutes, 30 minutes, 45

minutes, 60 minutes or Never). If SLIP is being used, you may

also set the Baud Rate in the last field. Click Apply and

then reboot the Switch for console port settings to take effect.

The default serial port settings are:

Baud Rate=9600

Data Bits=8

Flow Control=X on/X off

Parity=None
