24-port NWay Ethernet Switch User’s Guide

148 Web-Based Network Management

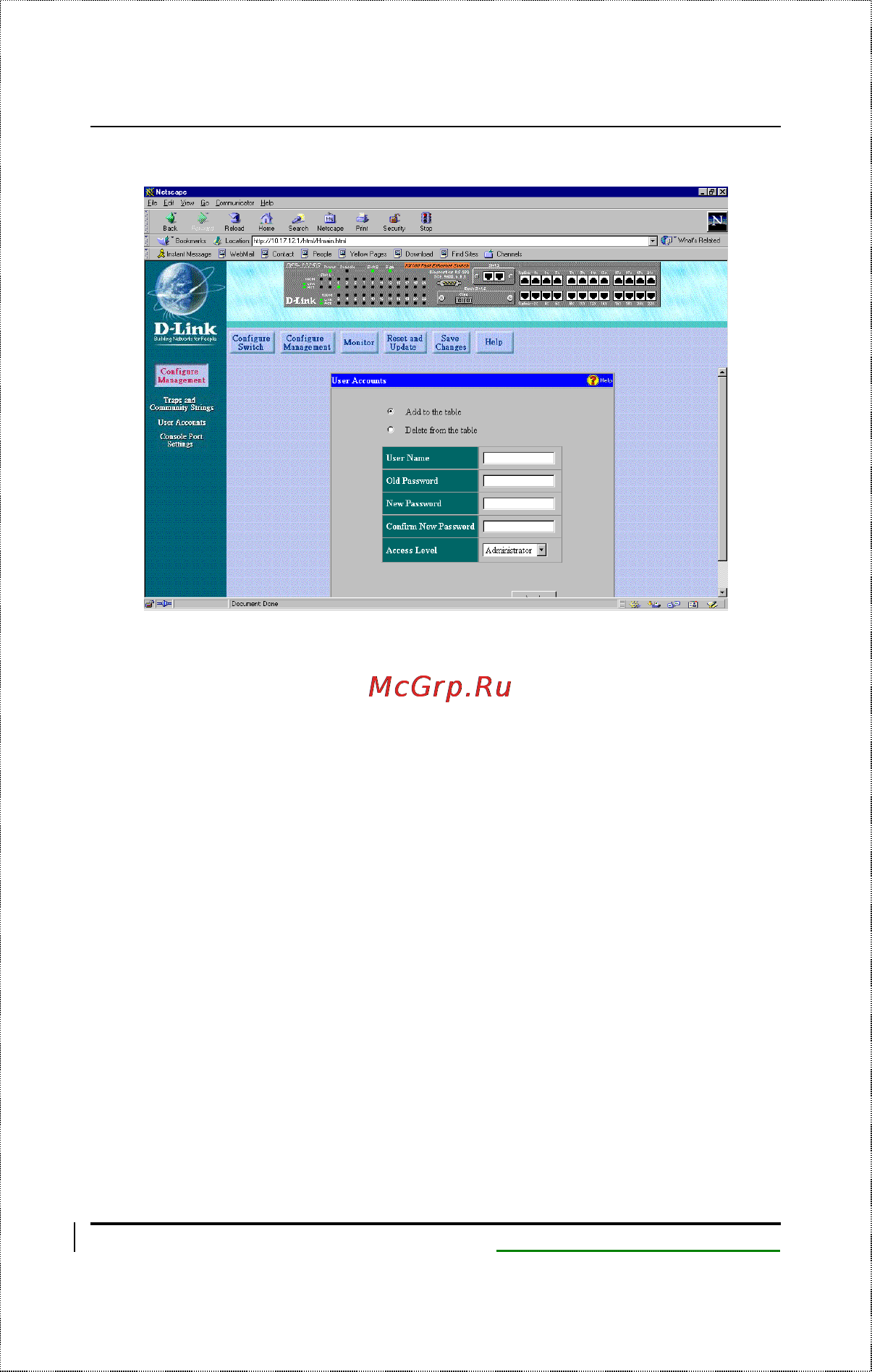

To add or delete a User Account, fill in the appropriate

information in the User Name, Old Password, New

Password, and Confirm New Password fields. Then select

the desired access, Normal User or Administrator in the

Access Level control and click Apply.
