D-Link DES-2108/E [166/199] Port statistics

24-port NWay Ethernet Switch User’s Guide

152 Web-Based Network Management

Port Statistics

The port statistics shown by default are those for the port you

last configured. Once in the Port Statistics screens, you can

click any port on the switch graphic to show statistics for that

port. Click the Reset Counter button at the bottom of the

screen to clear the counters.

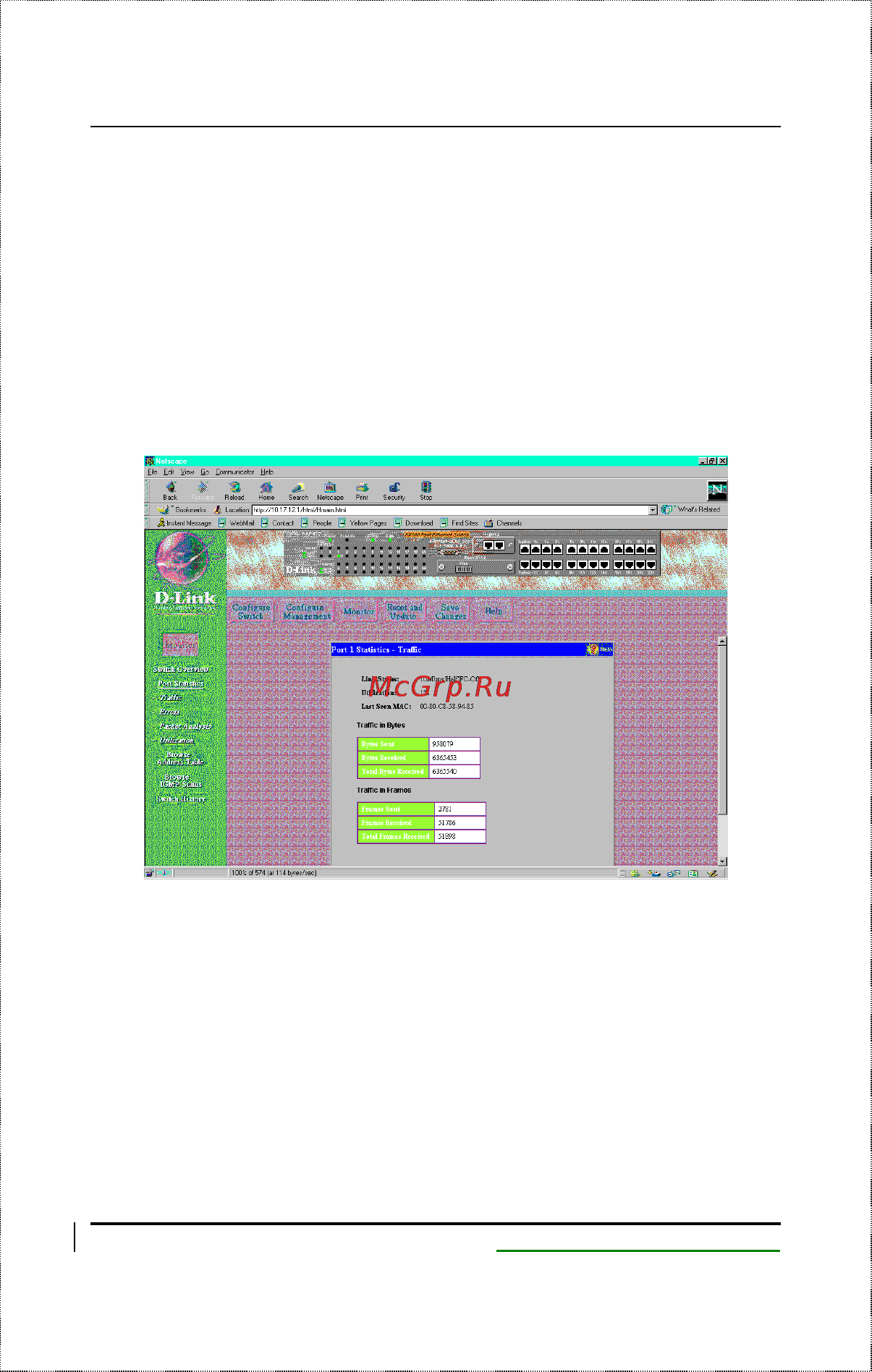

Traffic

The information is described as follows:

♦ Link Status Indicates whether the port is online and

working (On) or not (Off).

♦ Utilization Current utilization for the port, as a

percentage of total available bandwidth.

♦ Last Screen MAC The MAC address of the most recent

screen.
