D-Link DES-2108/E [115/199] Statistics overview

24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 101

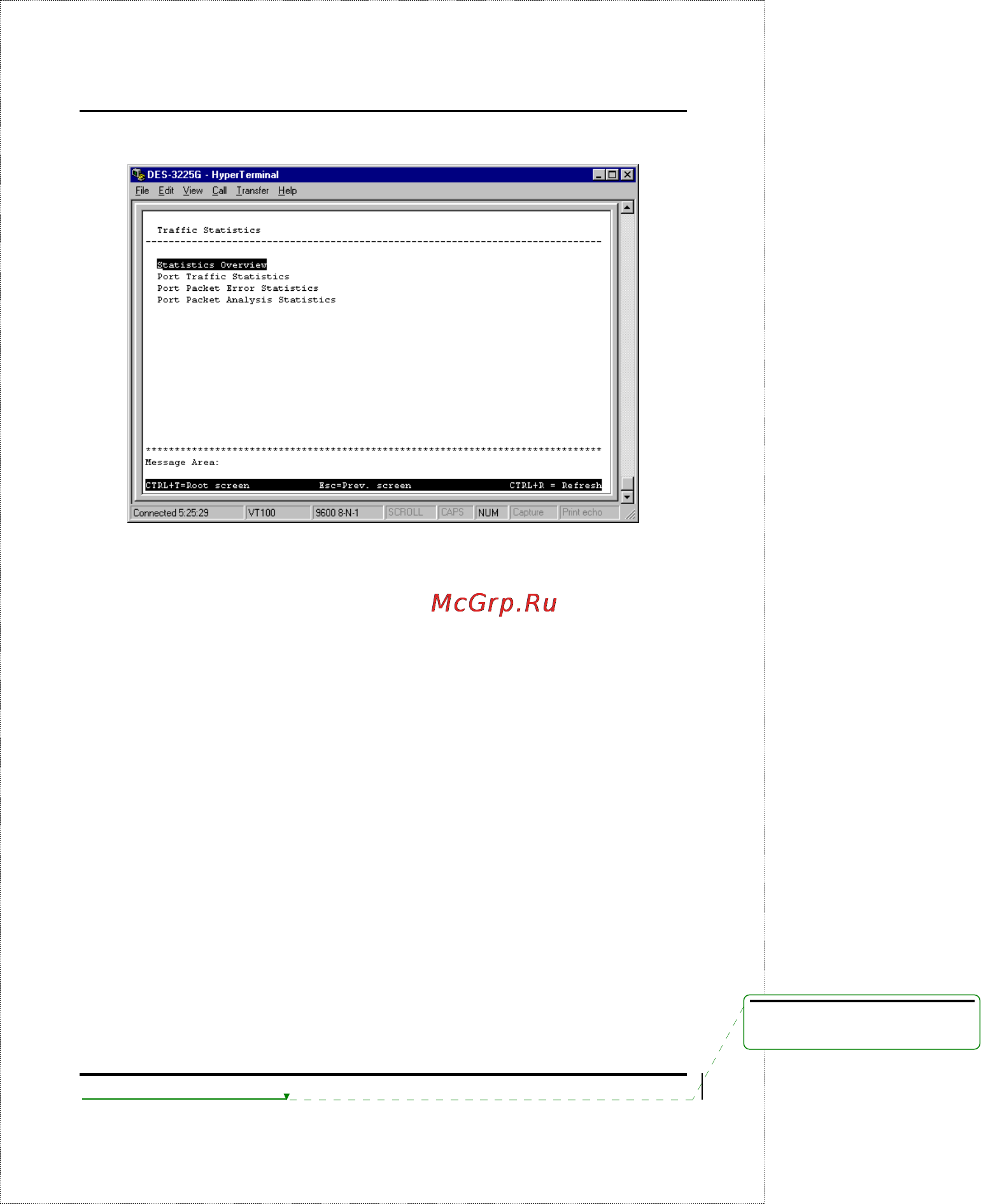

Figure 6-41. Traffic Statistics menu

Statistics Overview

To access the first item on the Traffic Statistics menu, choose

Statistics Overview. The following table appears:
