D-Link DES-2108/E [146/199] Spanning tree

24-port NWay Ethernet Switch User’s Guide

132 Web-Based Network Management

Spanning Tree

The Switch supports 801.2d Spanning Tree Protocol, which allows

you to create alternative paths (with multiple switches or other

types of bridges) in your network. See the Spanning Tree Algorithm

section of the ‘‘Switch Management’’ chapter for a detailed

explanation.

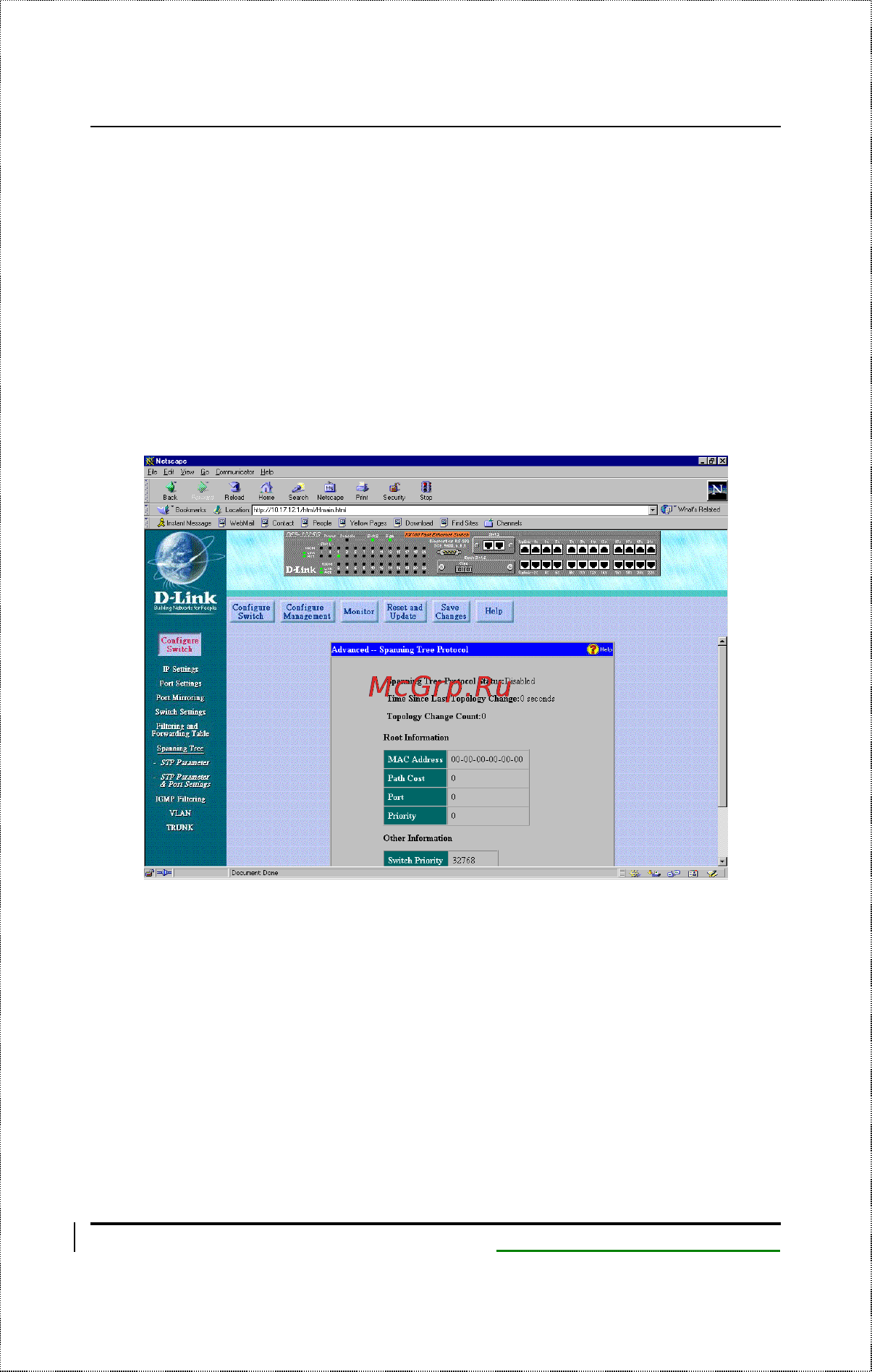

STP Parameter

The information above is described as follows:

♦ Spanning Tree Protocol Status Displays the current

Spanning Tree Protocol setting.

♦ Time Since Last Topology Change Displays the last time

changes were made to the network topology. These changes

usually occur when backup paths are activated due to primary

path failures.
