24-port NWay Ethernet Switch User’s Guide
Web-Based Network Management 131

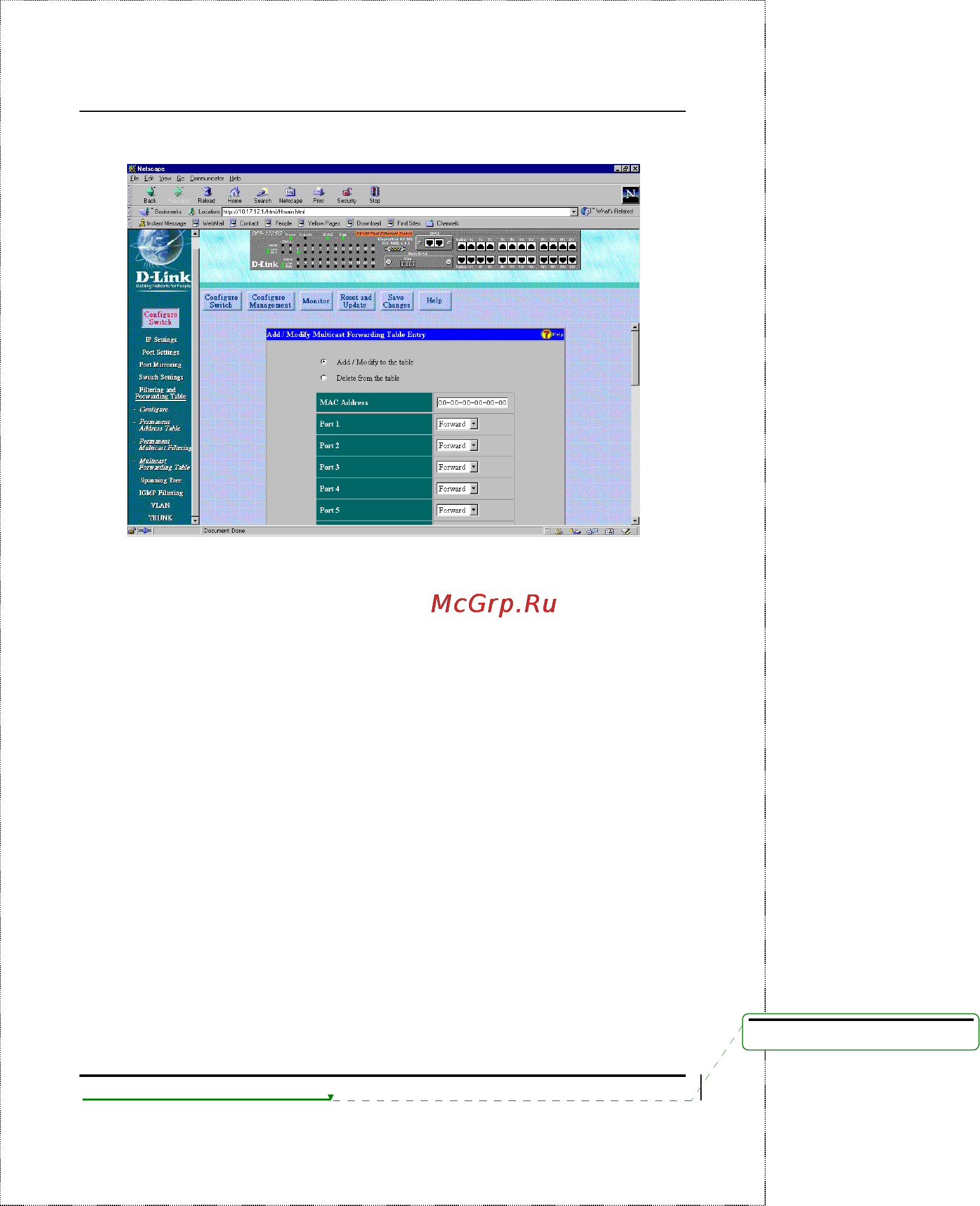

To Add/Modify to the table or Delete from the table, check the
desired option button, enter the MAC address in the MAC
Address field, select Forward or Block for each port, deciding
whether that port transmits or blocks traffic for the specified
multicast group. Click Apply to let the changes take effect.
The information above is described as follows:
♦ Add/Modify to the table Allows you to create or edit a
filter for the Multicast Forwarding Table which will
either forward or block multicast traffic.
♦ Delete from the table Allows you to delete a filter from
the Multicast Forwarding Table.
♦ MAC Address The Ethernet address of the Multicast
Forwarding Table entry.
