24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 109

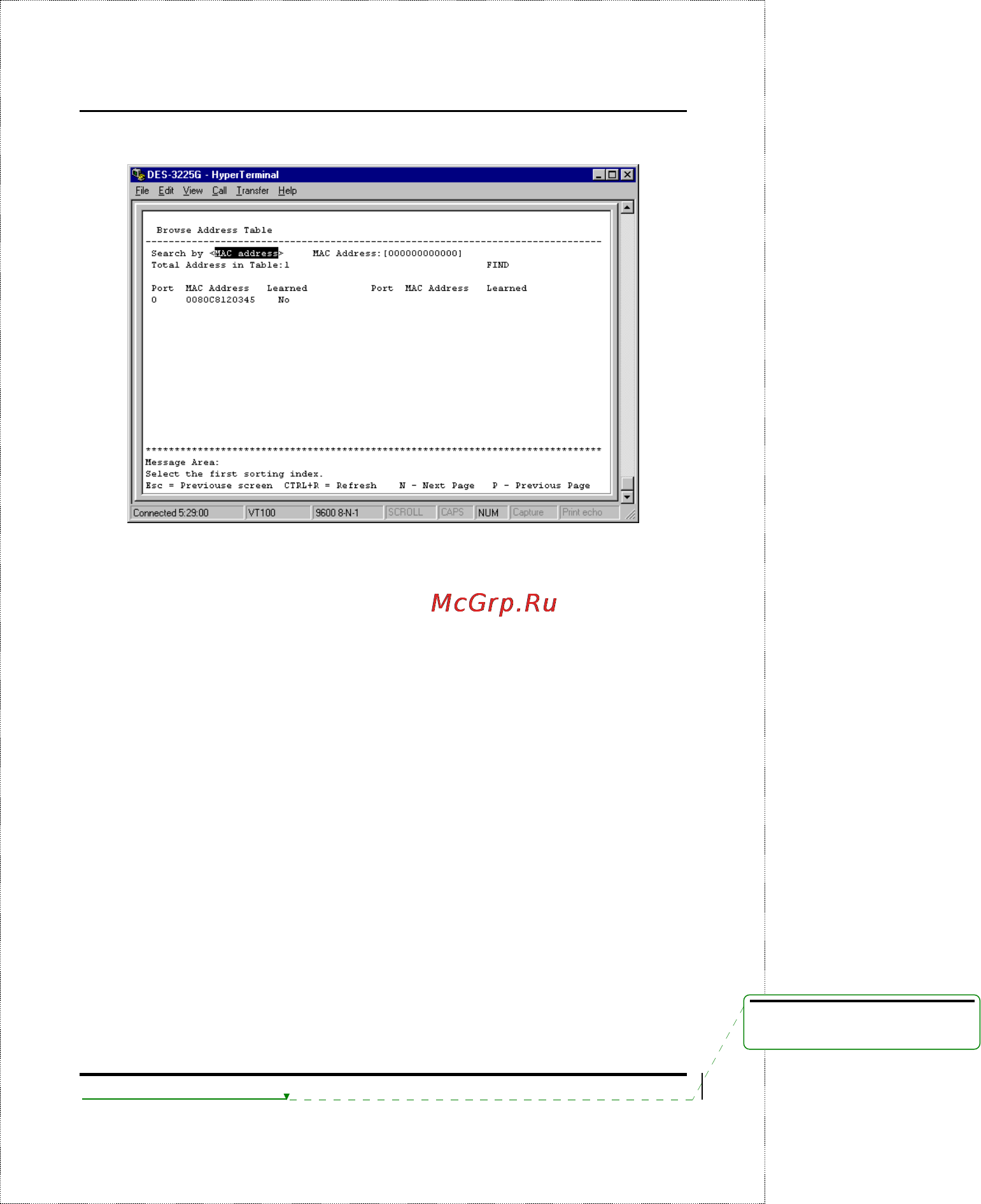

Figure 6-46. Browse Address Table
To browse by MAC address, select MAC address in the Search by
field, enter the desired MAC address in the next field, and then
press FIND.
To browse by port number, select Port in the Search by field, enter
the desired port in the next field, and then press FIND.
The lower part of the screen is a read-only Browse Address Table
that contains Port, MAC Address and Learned status of each
entry. Use N to advance to the next page and P to return to the
previous page.
Browse IGMP Status
The Browse IGMP Status function allows you to browse Internet
Group Management Protocol (IGMP). The Switch is able to
recognize IGMP queries and reports sent between stations and an
IGMP router. When enabled for IGMP snooping, the switch can
Удалено: Using the Console
Interface
