D-Link DES-2108/E [144/199] Multicast forwarding table

24-port NWay Ethernet Switch User’s Guide

130 Web-Based Network Management

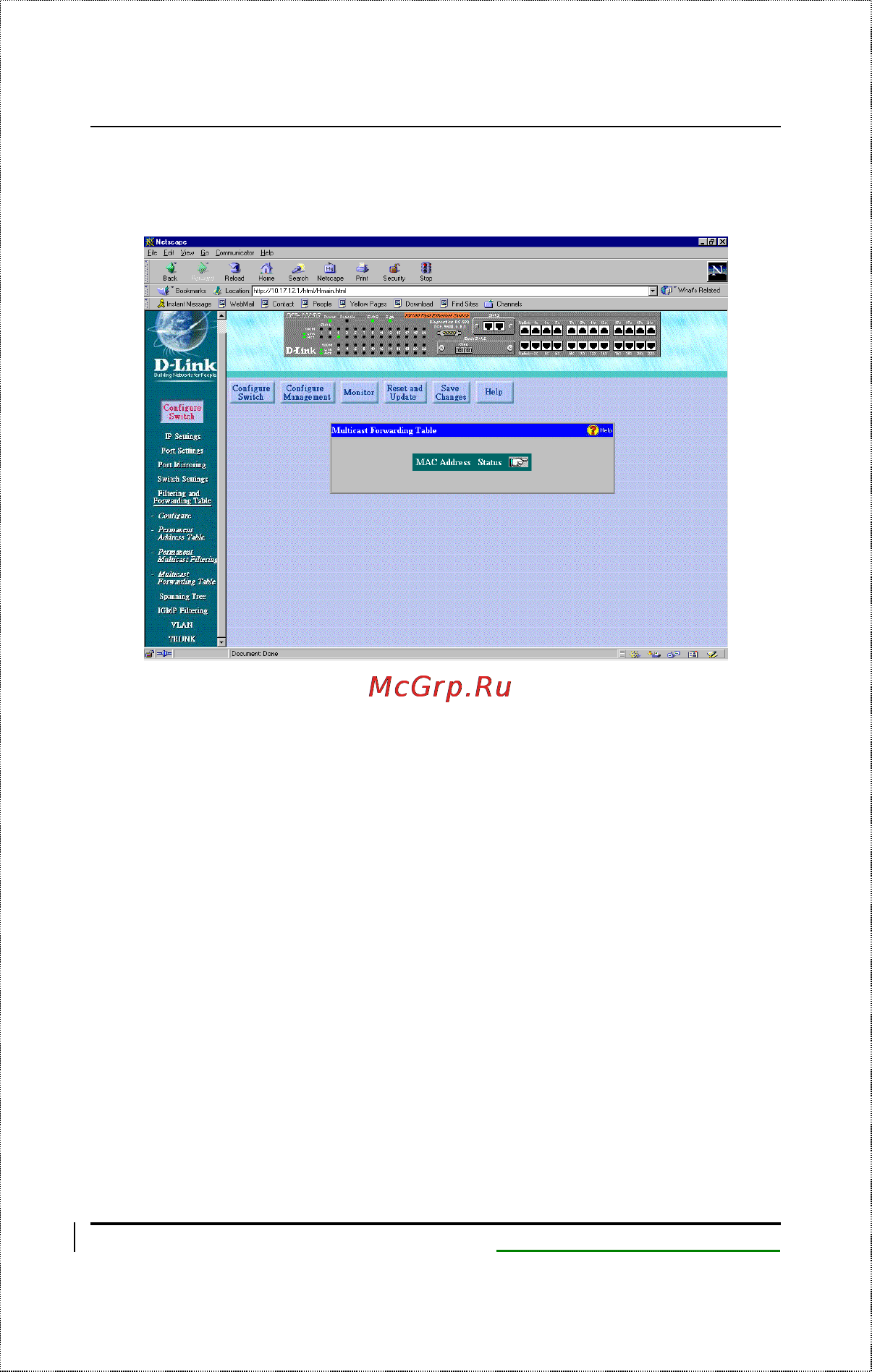

Multicast Forwarding Table

Multicast filtering blocks or forwards traffic over each port for one

multicast group. You can configure each port on the Switch to

forward traffic for the specified multicast group.

Click the pointer icon on the right side of the table to access

the Add/Modify Multicast Forwarding Table Entry

window:
