24-port NWay Ethernet Switch User’s Guide
126 Web-Based Network Management
♦ Lock Address Table (Stops learning new address) Mostly
used for security purposes, when the forwarding table is locked
the Switch will no longer learn the MAC addresses for new
hosts. If your network configuration doesn’t change, locking the
forwarding table helps keep intruders off your network since
any packet coming from an unknown source address will be
dropped by the Switch.
♦ Address Look-up Mode Select from: Level 1, Level 2, Level 3,
Level 4, Level 5, Level 6, Level 7, or Default.
♦ MAC Address Aging Enter the desired MAC address age-out
time in this field (10 to 9999 seconds).

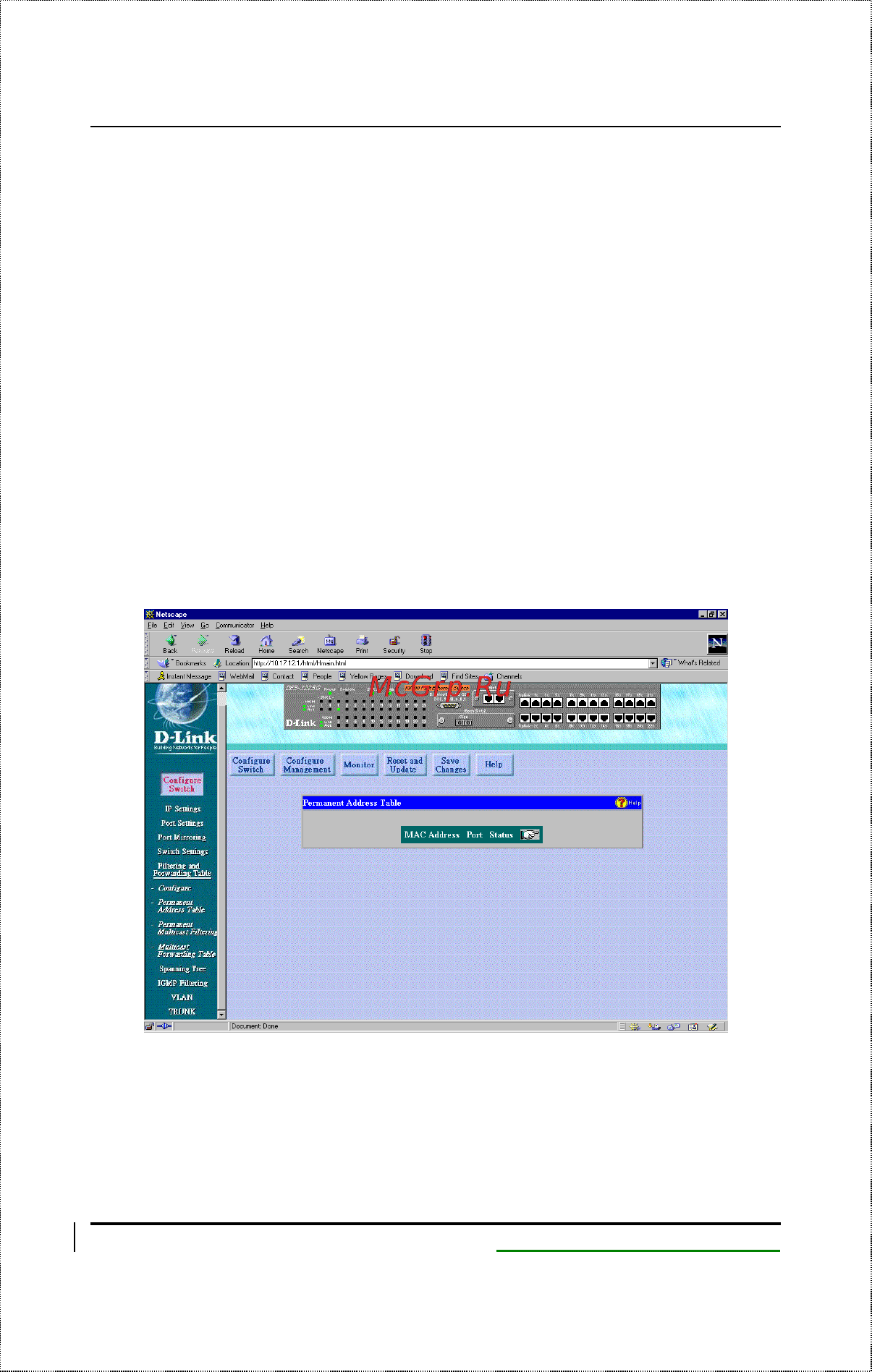

Permanent Address Table
MAC forwarding allows the Switch to permanently forward
outbound traffic to specific destination MAC addresses over a
specified port. You can also use this feature to restrict inbound
traffic based on source MAC addresses.
