24-port NWay Ethernet Switch User’s Guide
Web-Based Network Management 127

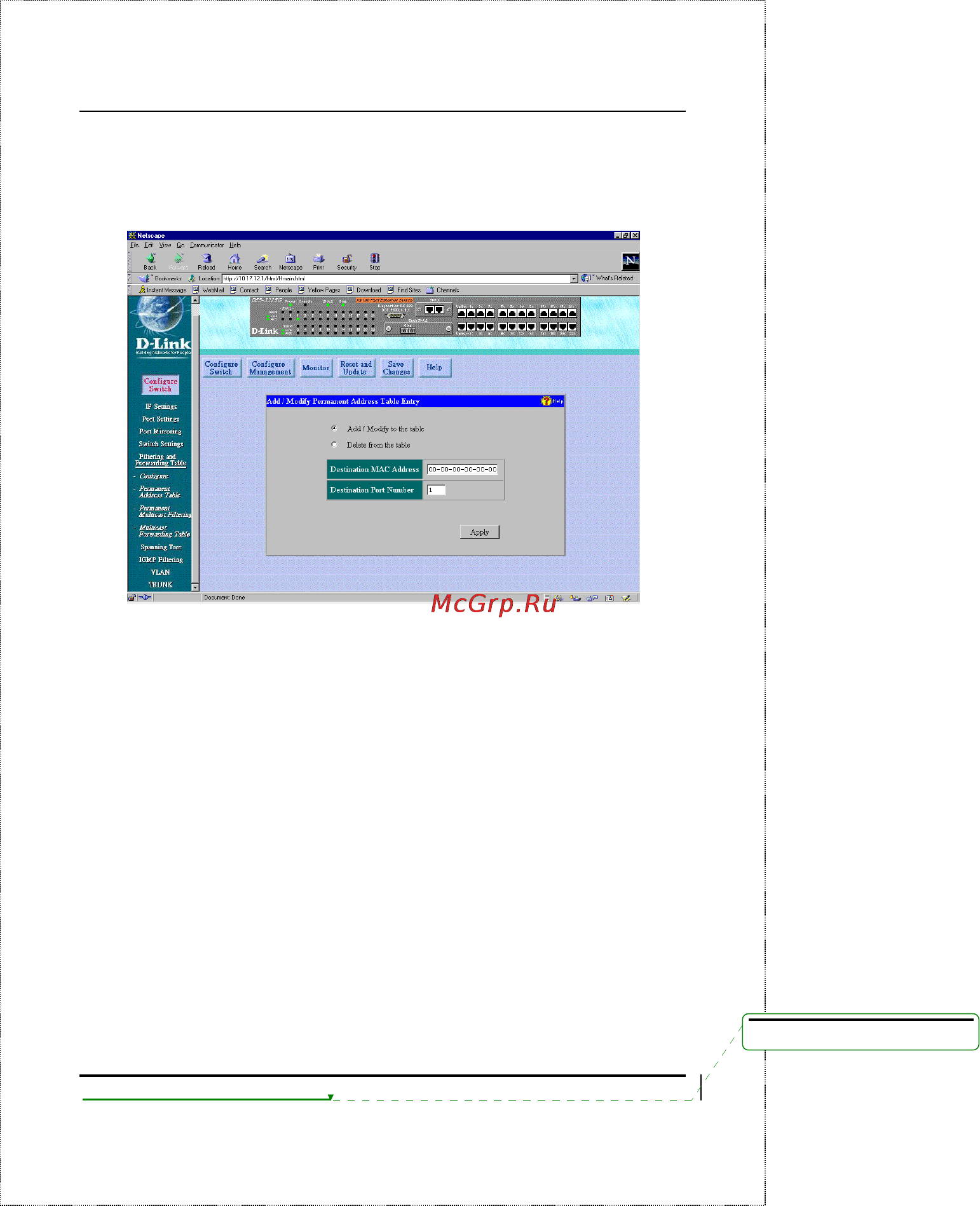

Click the pointer icon on the right side of the table to access the
Add/Modify Permanent Address Table Entry window:
To use the MAC forwarding function, check either the Add/Modify
to the table option button or the Delete from the table option
button, enter the MAC address of the device to which the specified
port permanently forwards traffic in the Destination MAC
Address field, and enter the port number that permanently
forwards traffic from the specified device in the Destination Port
Number field. Then click Apply.
The information in the screen is described as follows:
♦ Add/Modify to the table/Delete from the table Choose
one of the desired options to add/modify or delete an entry
from the table.
♦ Destination MAC Address The MAC address of the
device to which the specified port permanently forwards
traffic.
