24-port NWay Ethernet Switch User’s Guide
92 Using the Console Interface
Update Firmware and Configuration Files
The Switch is capable of obtaining its boot-time configuration
information, as well as updated versions of its internal firmware,
using TFTP (the Trivial File Transfer Protocol) and BOOTP (the
BOOTstrap Protocol). You can use the Update Firmware and
Configuration Files screen to control this feature.
Choose Update Firmware and Configuration Files to access
the fourth item on the Switch’s main menu. The following screen
appears:

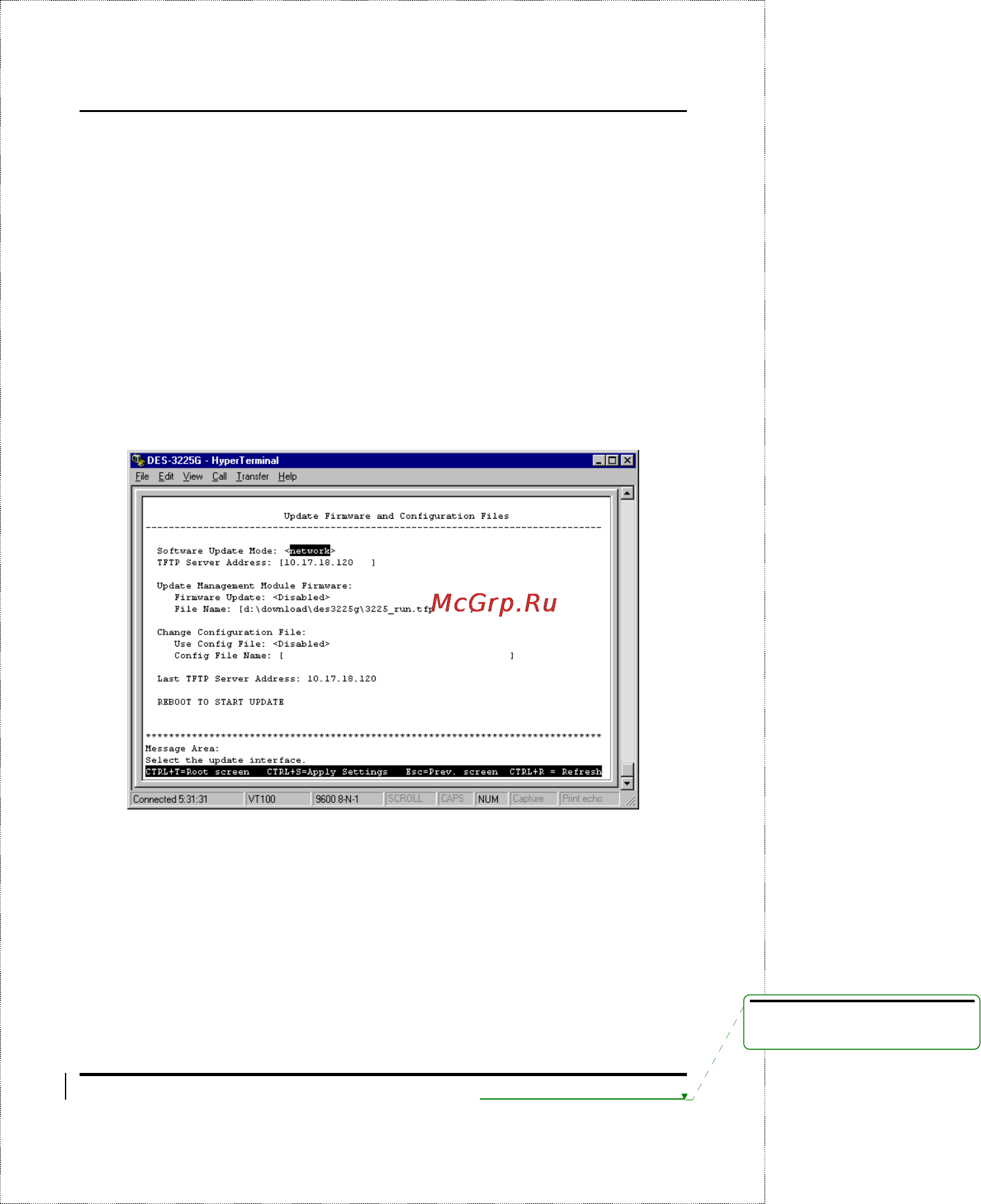

Figure 6-34. Update Firmware and Configuration Files screen
After making your changes in the fields above, press REBOOT TO
START UPDATE to initiate the update sequence.
The fields you can set are:
