24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 103
Port Traffic Statistics
To access the second item on the Traffic Statistics menu, choose
Port Traffic Statistics. The following table appears:

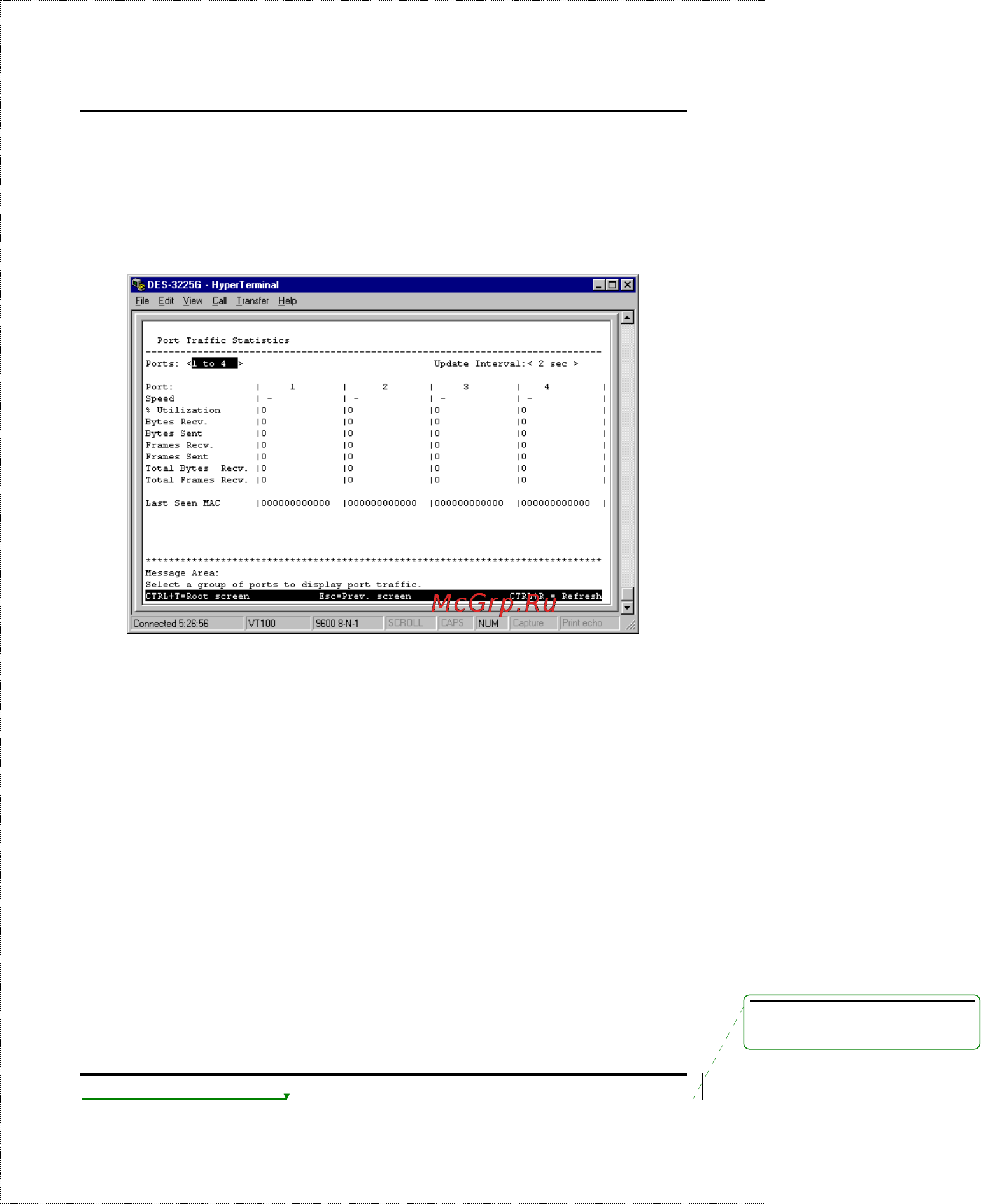

Figure 6-43. Port Traffic Statistics screen
Select the desired setting in the Ports field: 1 to 4, 5 to 8, 9 to 12,
13 to 16, 17 to 20, 21-S1P2, or Slot 2 and the desired increment
setting in the Update Interval field: 2 sec, 5 sec, 15 sec, 30 sec, 1
min, or Suspend.
The statistic counters displayed are defined as follows:
♦ Speed If the link is up, the speed and duplex status will be
displayed; if the link is down ‘‘-” will be displayed.
♦ % Utilization This shows the percentage of available
bandwidth each port is using over the amount of time specified
by the update interval. For example, when a 10 Mbps port is
relaying packets at 5 Mbps, the utilization is 50%.
