24-port NWay Ethernet Switch User’s Guide
Web-Based Network Management 151

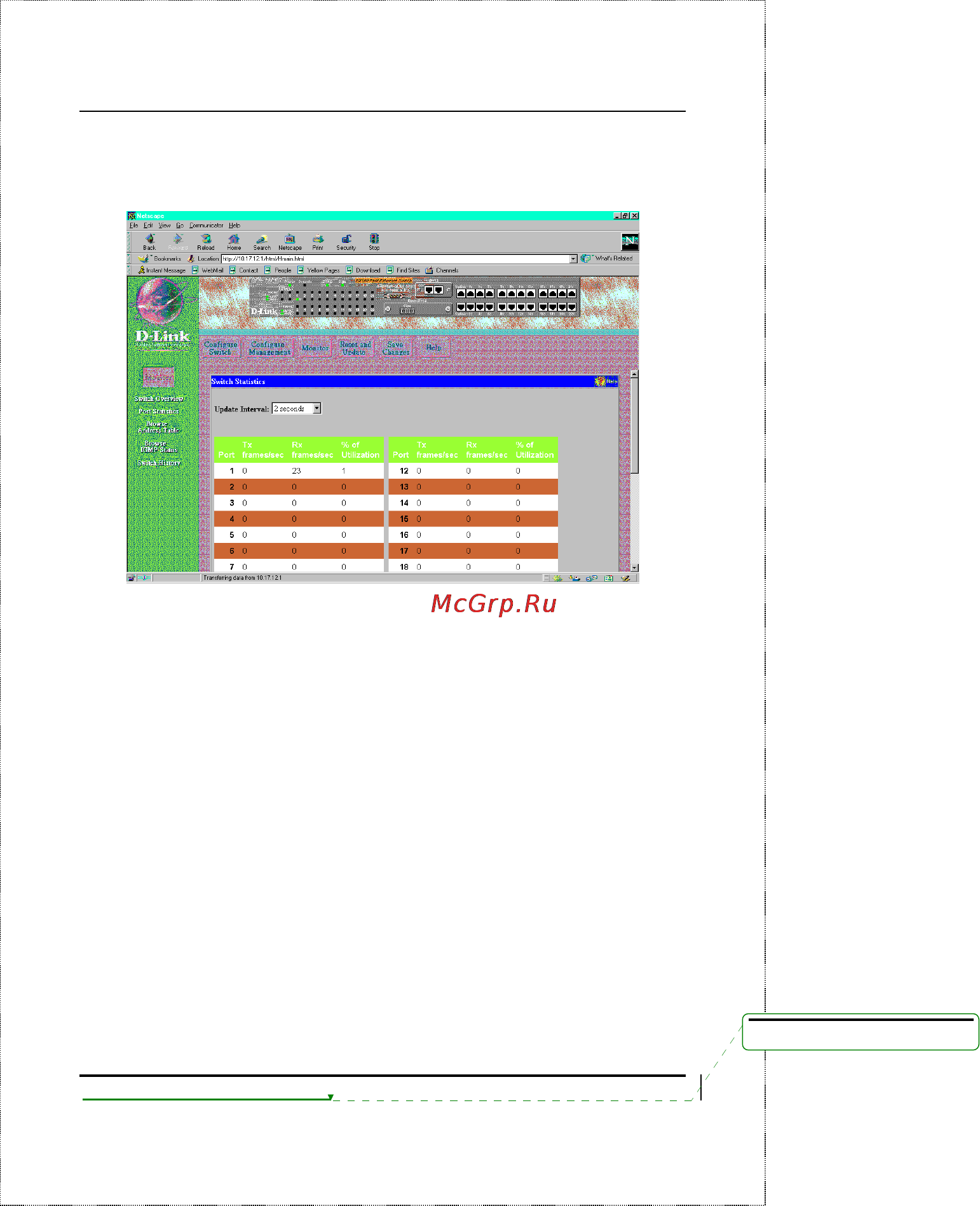

Switch Overview
The information is described as follows:
♦ Update Interval Choose the desired setting: 2 seconds, 5
seconds, 15 seconds, 30 seconds, 60 seconds or Suspend.
♦ Port The selected port to be monitored.
♦ TX frames/sec Counts the total number of frames
transmitted from a selected port per second since the
Switch was last rebooted.
♦ RX frames/sec Counts all valid frames received on the
port per second since the Switch was last rebooted.
♦ % of Utilization This shows the percentage of available
bandwidth each port is using over the amount of time
specified by the update interval. For example, when a 10
Mbps port is relaying packets at 5 Mbps, the utilization is
50%.
