24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 61

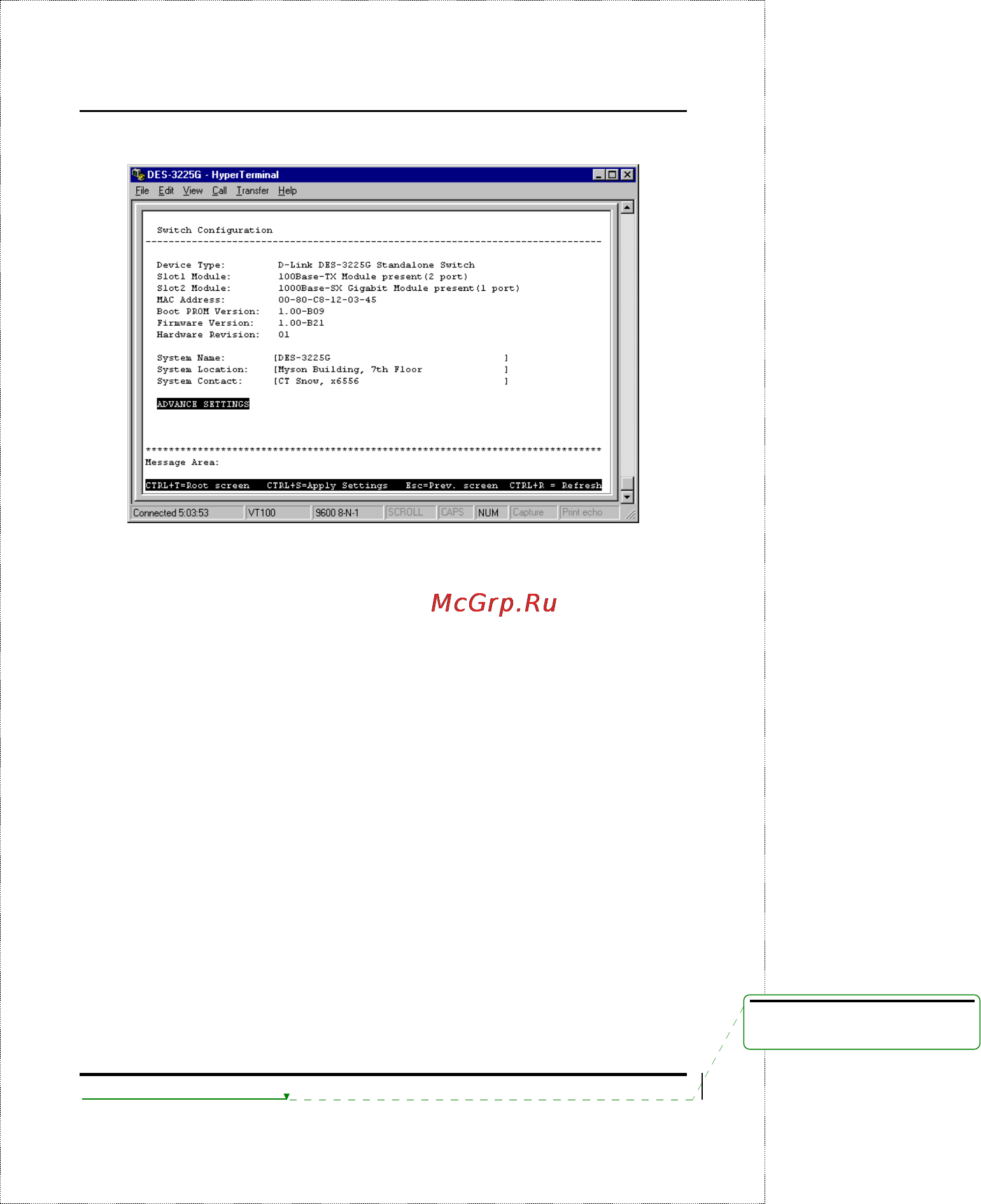

Figure 6-10. Switch Configuration screen

The fields you can set are:

♦ System Name Corresponds to the SNMP MIB II variable

system.sysName

, and is used to give a name to the Switch

for administrative purposes. The Switch’s fully qualified

domain name is often used, provided a name has been

assigned.

♦ System Location Corresponds to the SNMP MIB II

variable

system.sysLocation

, and is used to indicate

the physical location of the Switch for administrative

purposes.

♦ System Contact Corresponds to the SNMP MIB II variable

sysContact

, and is used to give the name and contact

information for the person responsible for administering the

Switch.
