24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 81

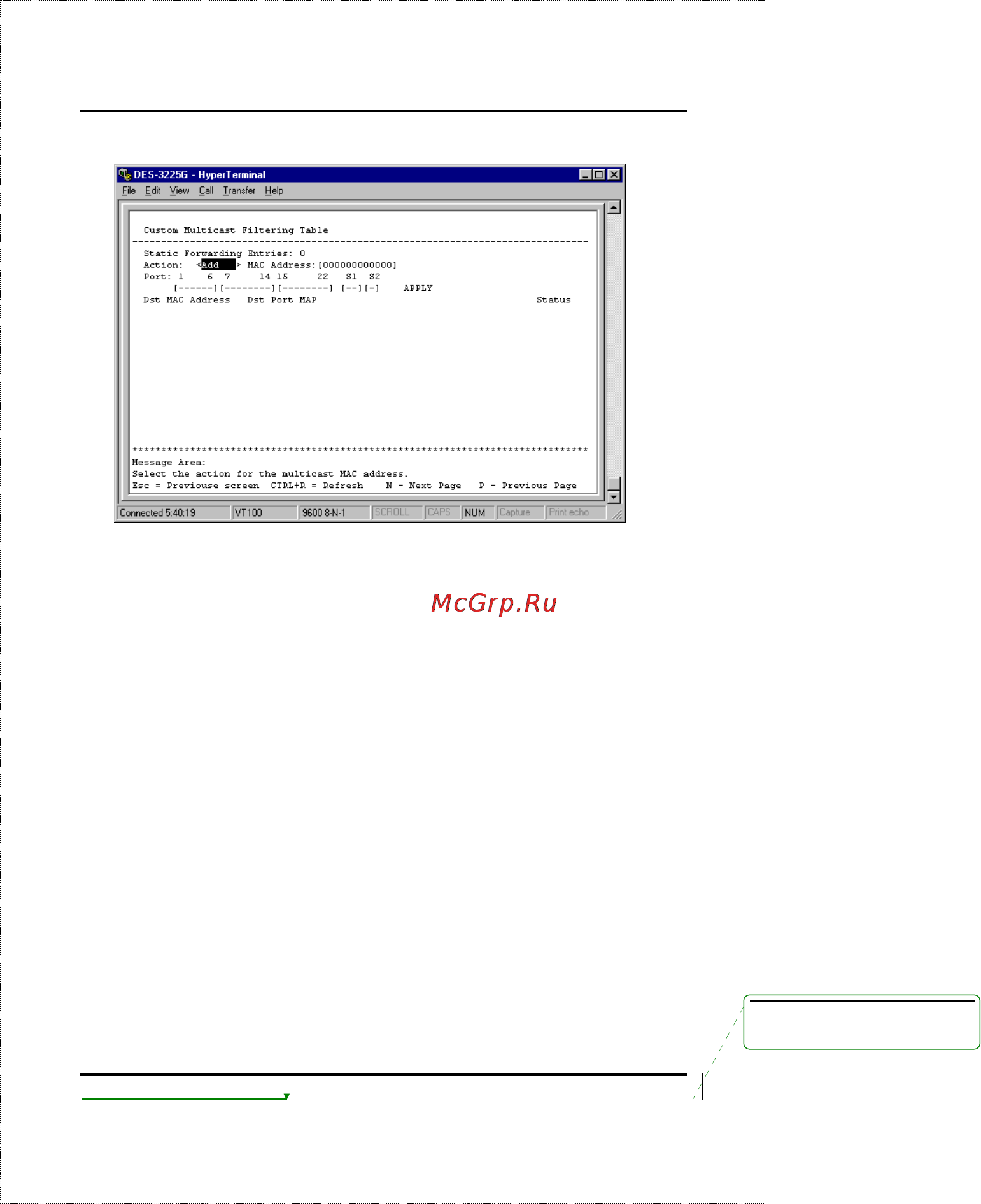

Figure 6-22. Custom Multicast Filtering Table screen
To make a change to the Custom Filtering Table, choose Add or
Remove in the Action field. Then enter the MAC Address, and the
Port number in one of the five fields: 1-6, 7-14, 15-22, S1, and S2.
Press APPLY to put the change into effect.
Configure IGMP Filtering
Internet Group Management Protocol (IGMP) snooping allows the
Switch to recognize IGMP queries and reports sent between
network stations or devices and an IGMP router. When enabled for
IGMP snooping, the Switch can open or close a port to a specific
device based on IGMP messages sent from the device to the router
or vice versa.
To access the IGMP Configuration screen, choose Configure
IGMP Filtering from the Configuration menu. The follow screen
appears:
