D-Link DES-2108/E [97/199] Configure mac based vlan

24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 83

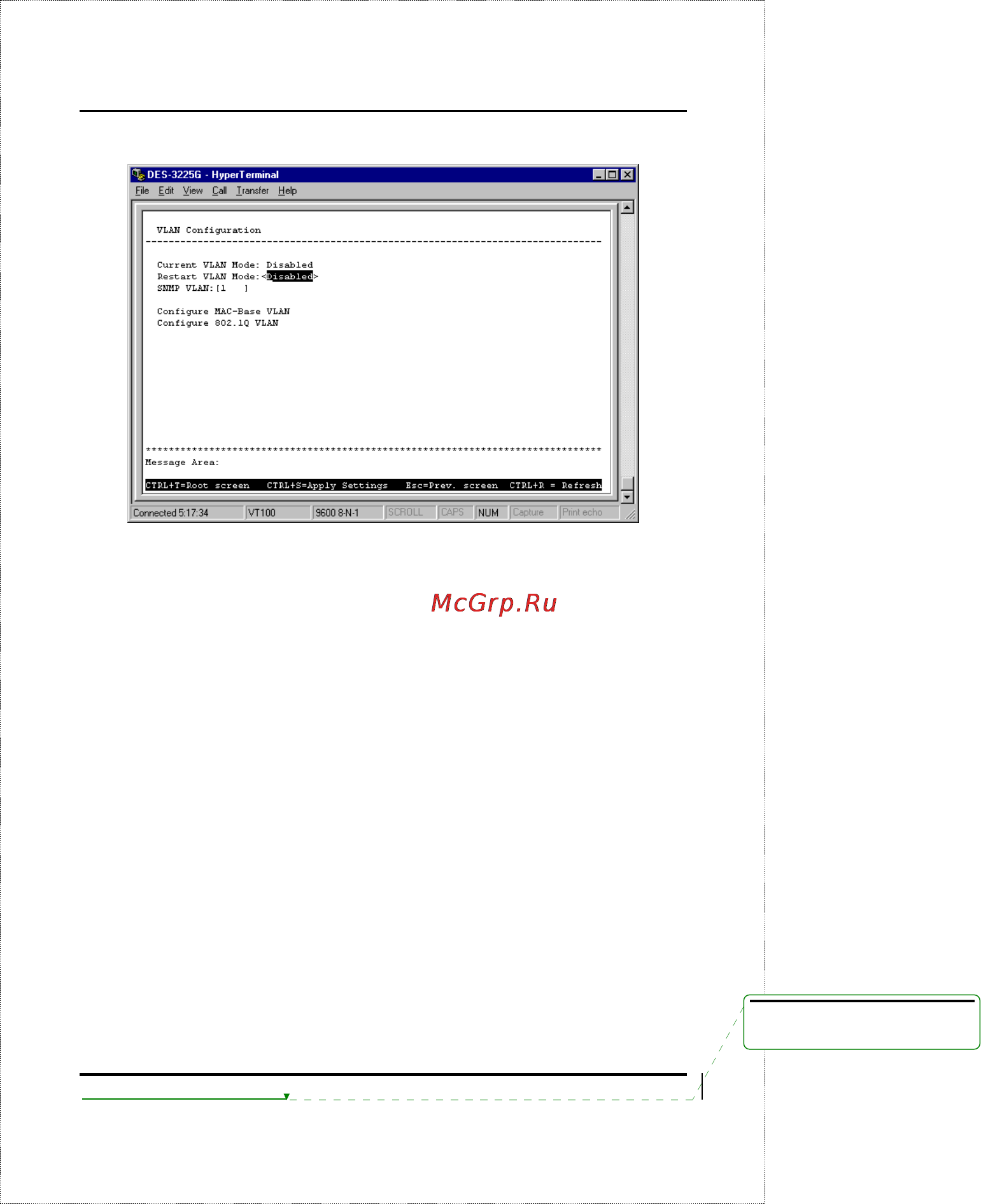

Figure 6-24. VLAN Configuration screen

The information on the top of the screen is described as follows:

♦ Current VLAN Mode Displays the status of the current

VLAN mode

♦ Restart VLAN Mode Choose from three settings for this

mode: Disabled, MAC Base, or 802.1Q.

♦ SNMP VLAN Enter the SNMP VLAN ID in this field.

Configure MAC-Based VLAN

Choose Configure MAC-Based VLAN from the bottom of the

screen above to access the MAC-Based VLAN Configuration

menu:

Удалено: Using the Console

Interface
