24-port NWay Ethernet Switch User’s Guide

Web-Based Network Management 139

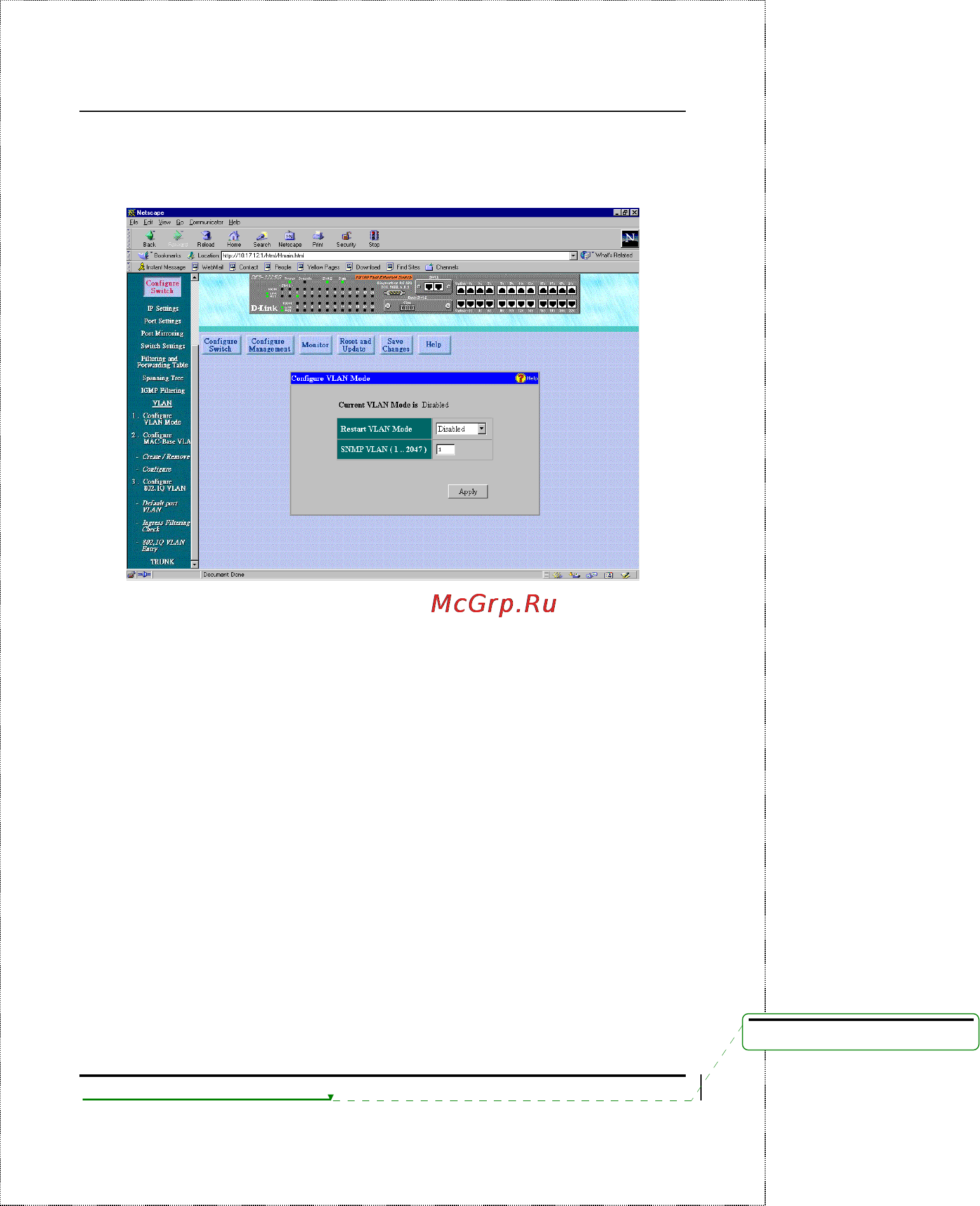

Configure VLAN Mode

To use the VLAN mode, select MAC Base or 802.1Q under Restart

VLAN Mode--otherwise, leave the setting at Disabled. Then

specify the VLAN ID number in the SNMP VLAN (1.. 2047) field

and click Apply.
