24-port NWay Ethernet Switch User’s Guide
156 Web-Based Network Management

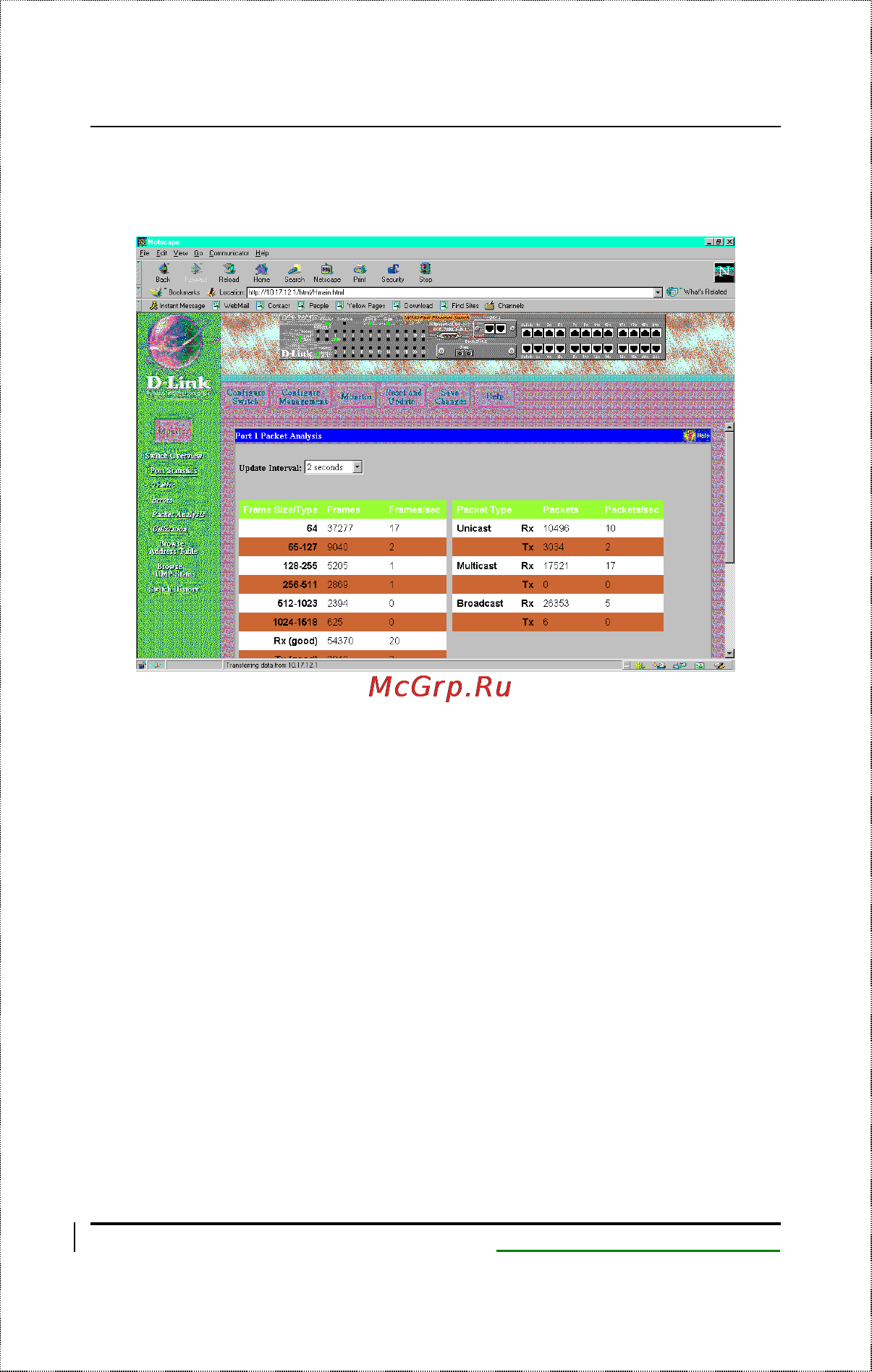

Packet Analysis
The information is described as follows:
♦ Update Interval Choose the desired setting: 2 seconds, 5
seconds, 15 seconds, 30 seconds, 60 seconds or Suspend.
♦ 64 The total number of packets (including bad packets)
received that were 64 octets in length (excluding framing
bits but including FCS octets).
♦ 65-127 The total number of packets (including bad
packets) received that were between 65 and 127 octets in
length inclusive (excluding framing bits but including FCS
octets).
♦ 128----255 The total number of packets (including bad
packets) received that were between 128 and 255 octets in
length inclusive (excluding framing bits but including FCS
octets).
