D-Link DES-2108/E [114/199] Traffic statistics

24-port NWay Ethernet Switch User’s Guide

100 Using the Console Interface

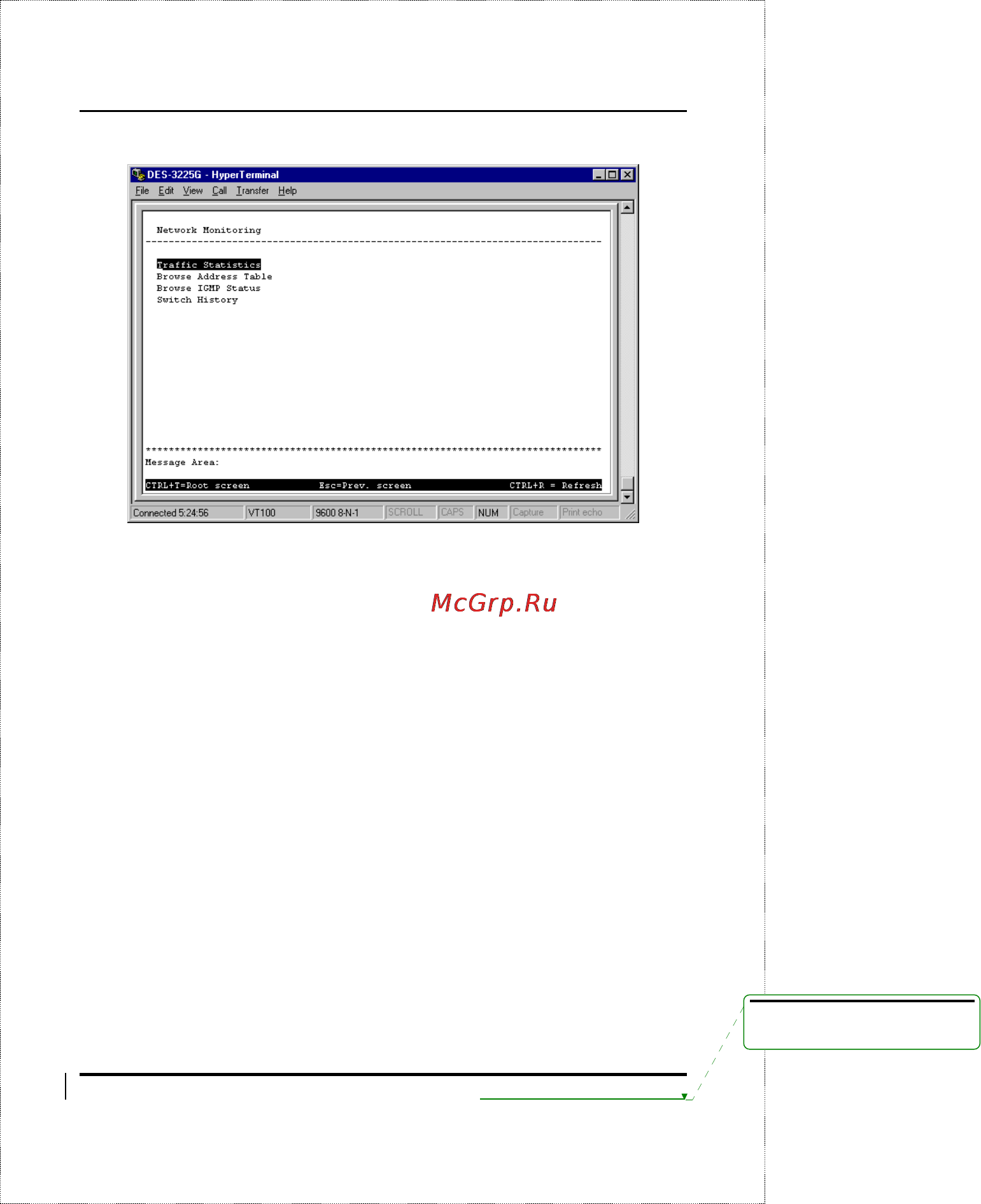

Figure 6-40. Network Monitoring menu

The first item on this menu permits you to access four different

tables that observe the condition of each individual port.

Traffic Statistics

To display the Traffic Statistics menu, choose the first item on

the Network Monitoring menu. The following menu appears:

Удалено: Using the Console

Interface
