24-port NWay Ethernet Switch User’s Guide

162 Web-Based Network Management

Reset and Update

The fourth category includes: Reboot Switch, Reset to Factory

Default, Update Firmware, Change Configuration File,

Upload Configure File, and Upload Log File.

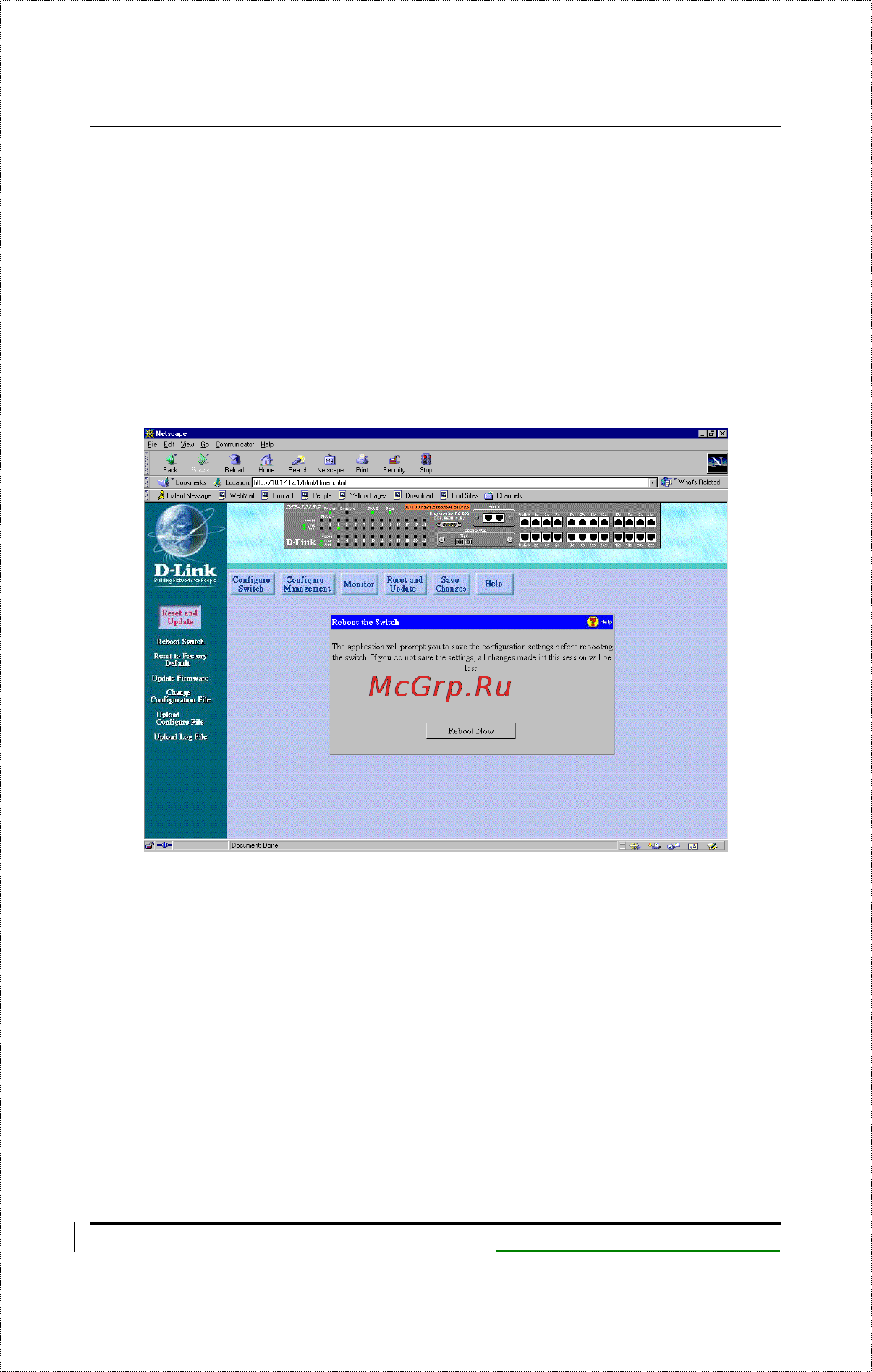

Reboot Switch

To perform a reboot of the Switch, which resets the system, click

the Reboot Now button.
