D-Link DES-2108/E [96/199] Configure vlan

24-port NWay Ethernet Switch User’s Guide

82 Using the Console Interface

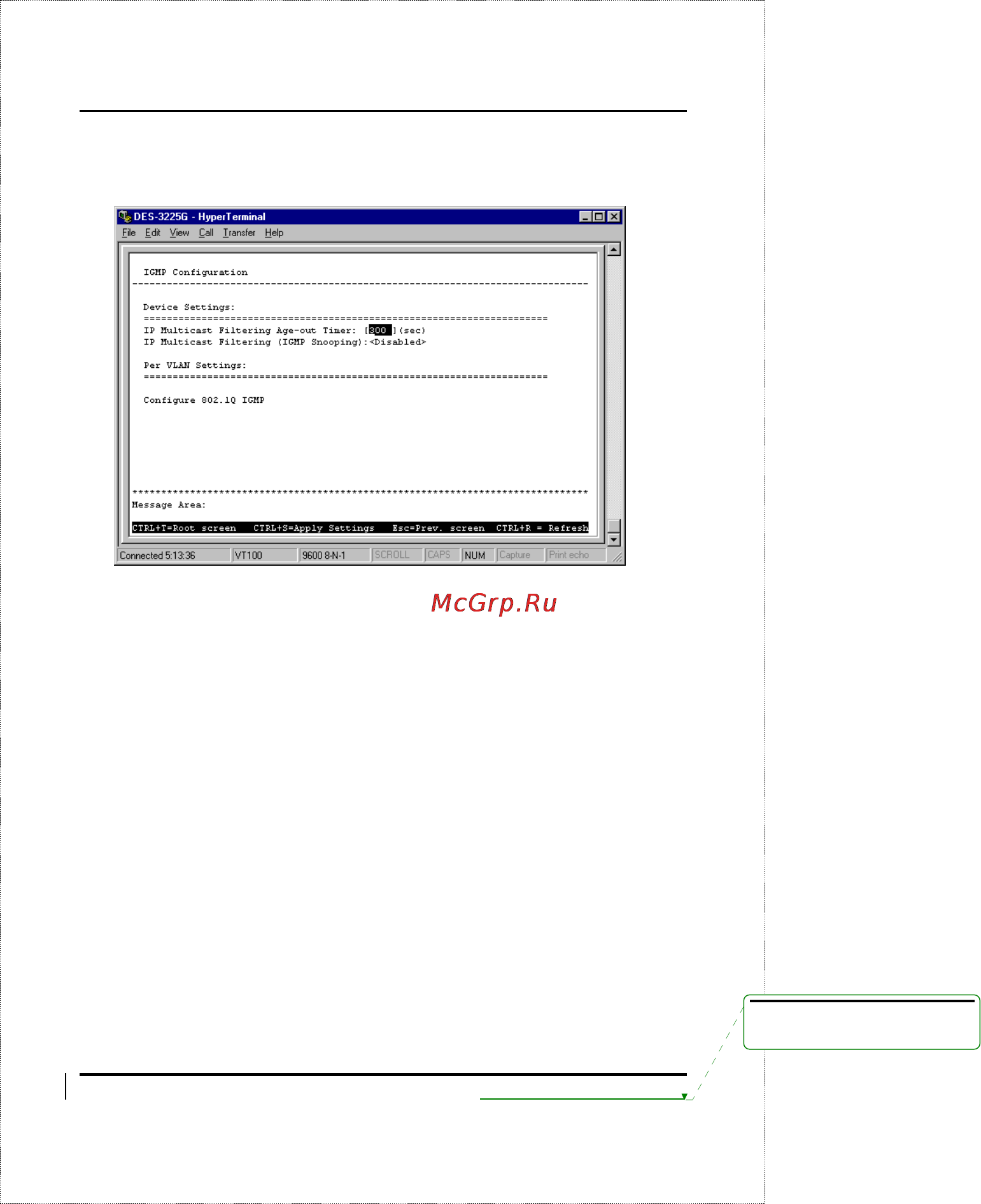

Figure 6-23. IGMP Configuration screen

To configure the IGMP, enter a value between 30 and 9999 seconds

in the IP Multicast Filtering Age-out Timer field and then

change the IP Multicast Filtering (IGMP Snooping) setting

from Disabled to Enabled.

Configure VLAN

The VLAN Configuration menu displays the status of the current

VLAN mode and allows a user to restart the VLAN mode in either

802.1Q or MAC-Base, or to disable this feature. You can also access

two additional screens, Configure MAC-Base VLAN and

Configure 802.1Q VLAN.

Choose Configure VLAN on the Configuration menu to access

the VLAN Configuration menu:

Удалено: Using the Console

Interface
