24-port NWay Ethernet Switch User’s Guide
118 Web-Based Network Management

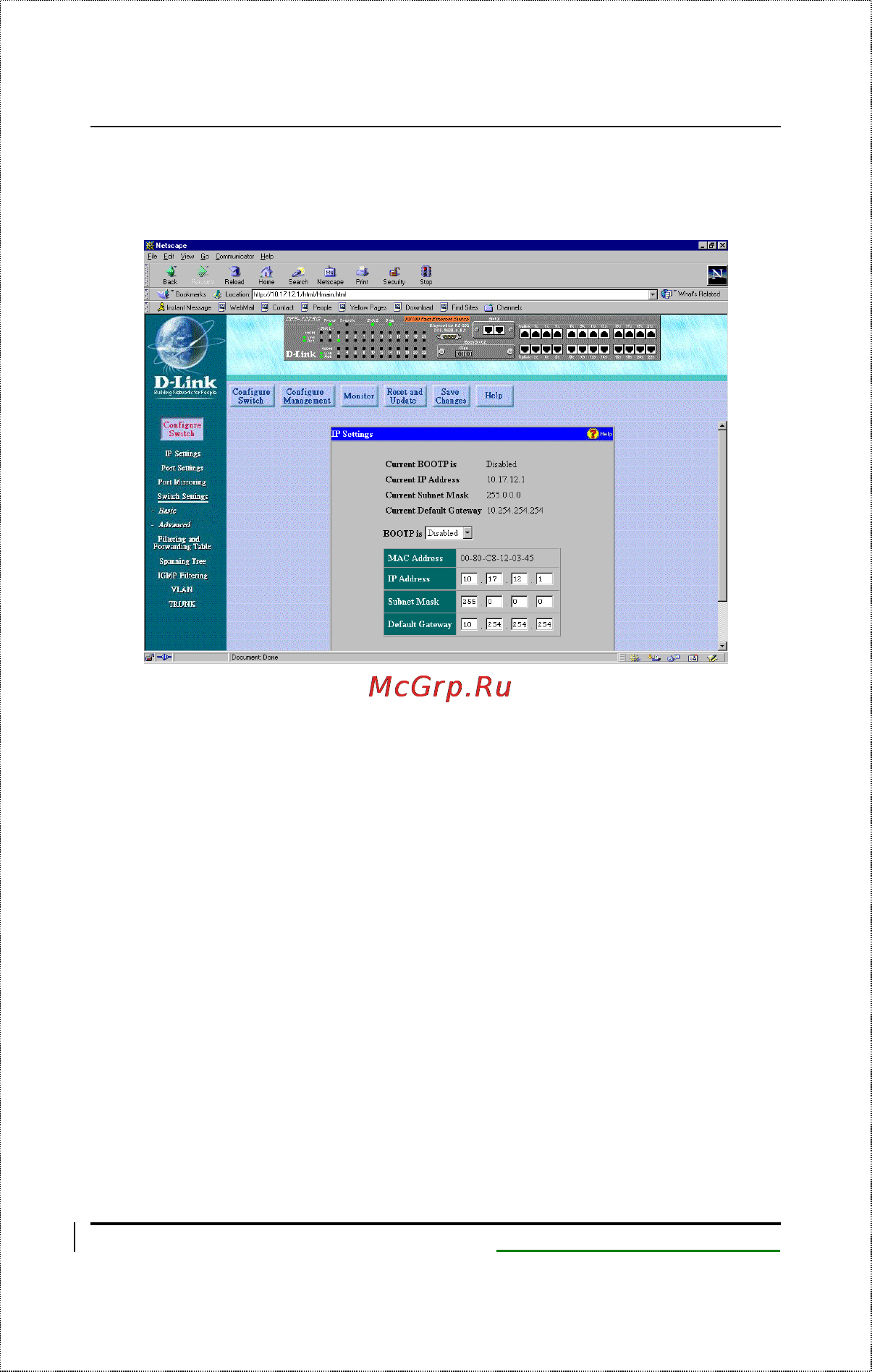

IP Settings
You can change the IP Address, Subnet Mask, and Default
Gateway on the Switch. If you are not using BOOTP, enter the IP
Address, Subnet Mask, and Default Gateway of the Switch. If
you enable BOOTP, you do not need to configure any IP
parameters because a BOOTP server automatically assigns IP
configuration parameters to the switch. Click Apply to activate the
new settings.
The information is described as follows:
♦ BOOTP is The BOOTP protocol allows IP addresses,
subnet masks, and default gateways to be assigned on a
central BOOTP server. If this option is enabled, when the
Switch is first powered up it will look for a BOOTP server
to provide it with this information before using the
supplied settings.
♦ MAC Address The Ethernet address for the device. Also
known as the physical address
