24-port NWay Ethernet Switch User’s Guide
50 Using the Console Interface

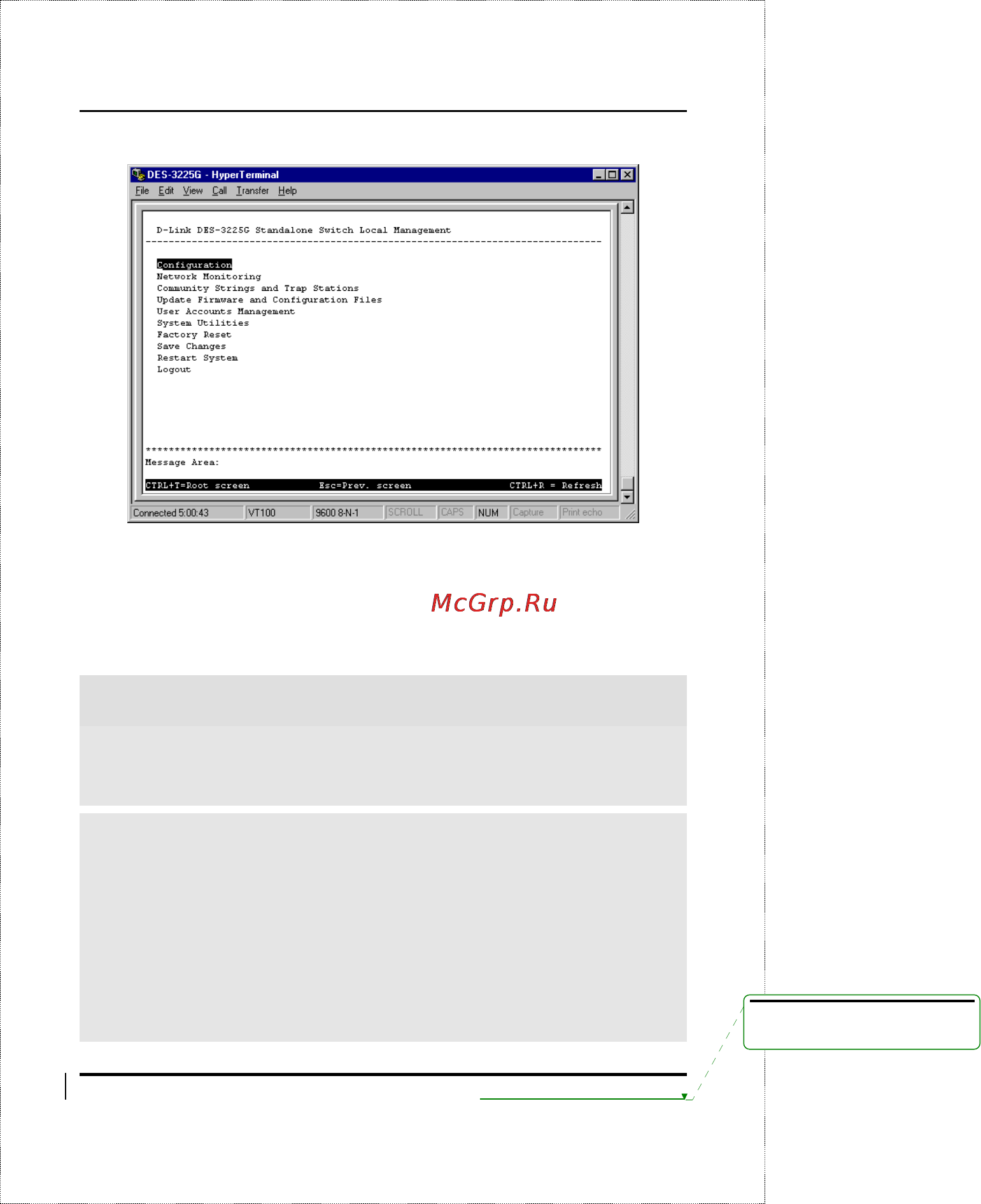

Figure 6-2. Main Menu
The first user automatically gets Administrator privileges
(See Table 6-1). It is recommended to create at least one
Administrator-level user for the Switch.
User Accounts Management
From the screen above, move the cursor to the User Accounts
Management menu and press Enter, then the Users Accounts
Management menu appears.
1. Choose Create/Modify User Accounts from the User
Accounts Management menu and the Add/Modify User
Accounts menu appears.
2. Enter the new user name, assign an initial password, and then
confirm the new password. Determine whether the new user
should have Administrator or Normal User privileges. (Use
the space bar to toggle between the two options).
3. Press APPLY to let the user addition take effect.
