24-port NWay Ethernet Switch User’s Guide

88 Using the Console Interface

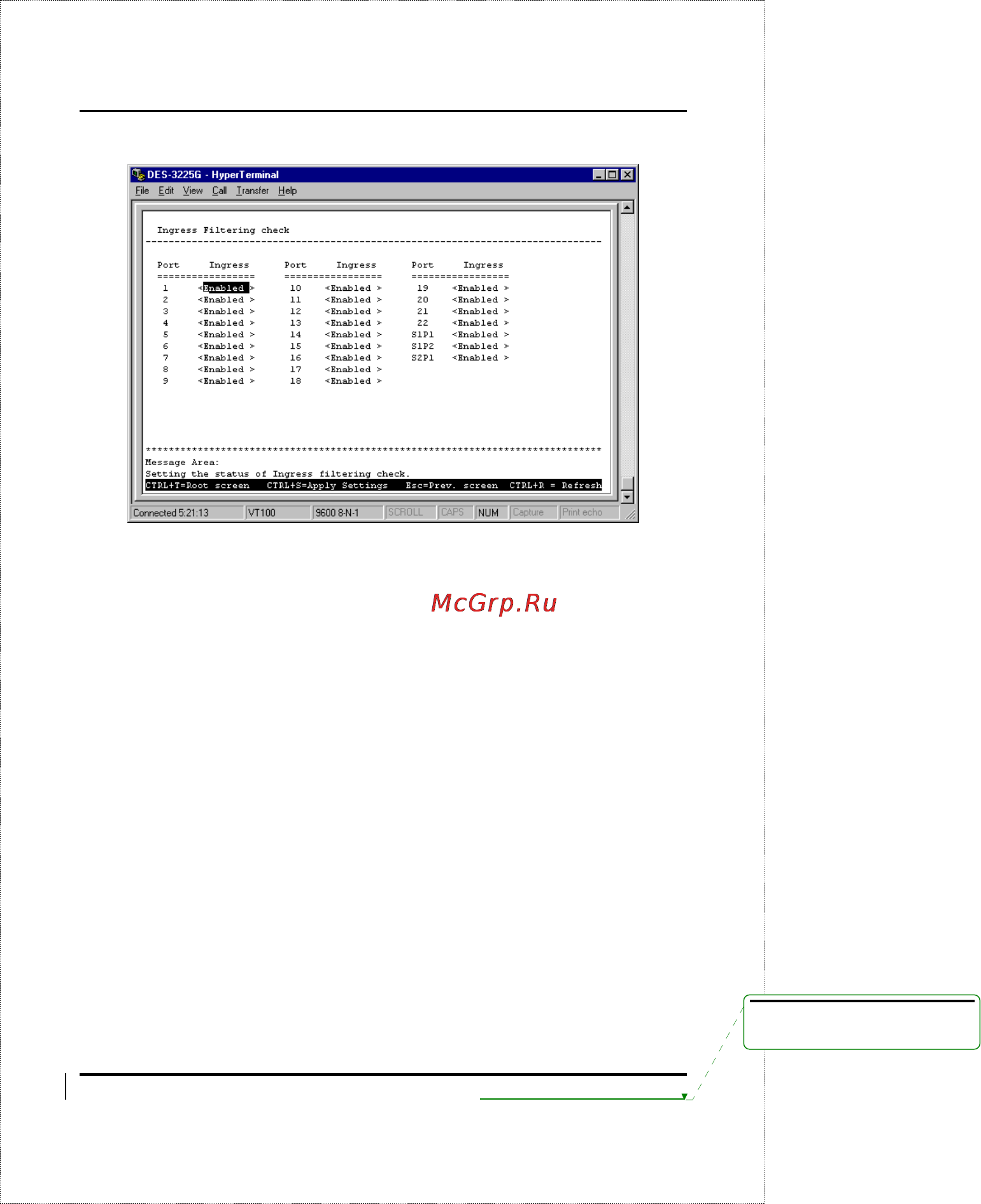

Figure 6-30. Ingress Filtering check screen

This screen allows you to set the status of the Ingress filtering

check for the selected port by toggling between Disabled and

Enabled.

Choose Configure Default Port VLAN ID to access the second

item on the 802.1Q VLAN Configuration menu. The following

Default port VLAN assignment screen appears:

Удалено: Using the Console

Interface
