24-port NWay Ethernet Switch User’s Guide

Using the Console Interface 89

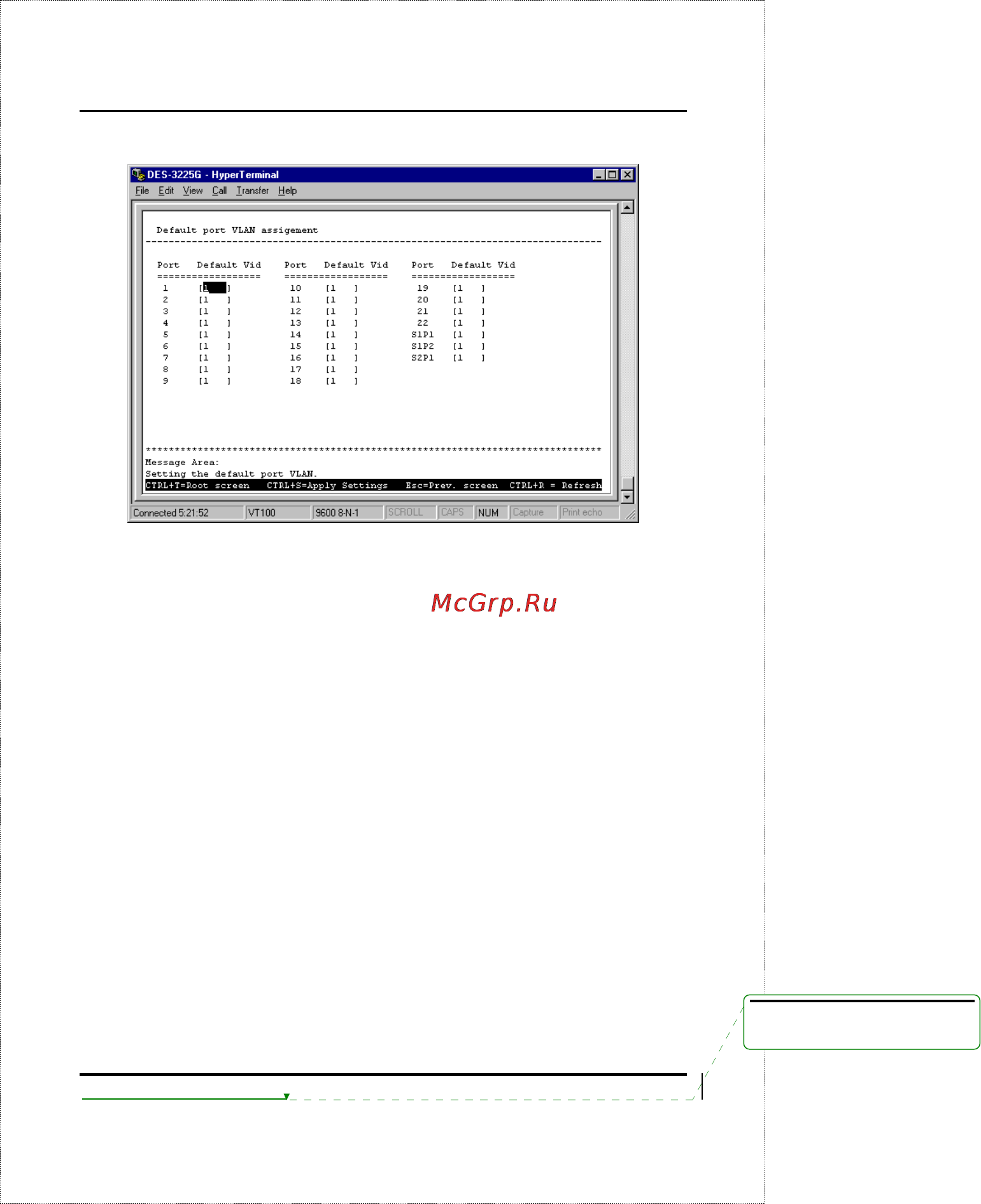

Figure 6-31. Default port VLAN assignment screen

This screen allows you to set a default port VLAN in the field

beside each port number. Press CTRL+S to let the changes take

effect.

Choose Configure 802.1Q Static VLAN Entry to access the third

item on the 802.1Q VLAN Configuration menu. The following

802.1Q Static VLAN Settings screen appears:

Удалено: Using the Console

Interface
