24-port NWay Ethernet Switch User’s Guide

90 Using the Console Interface

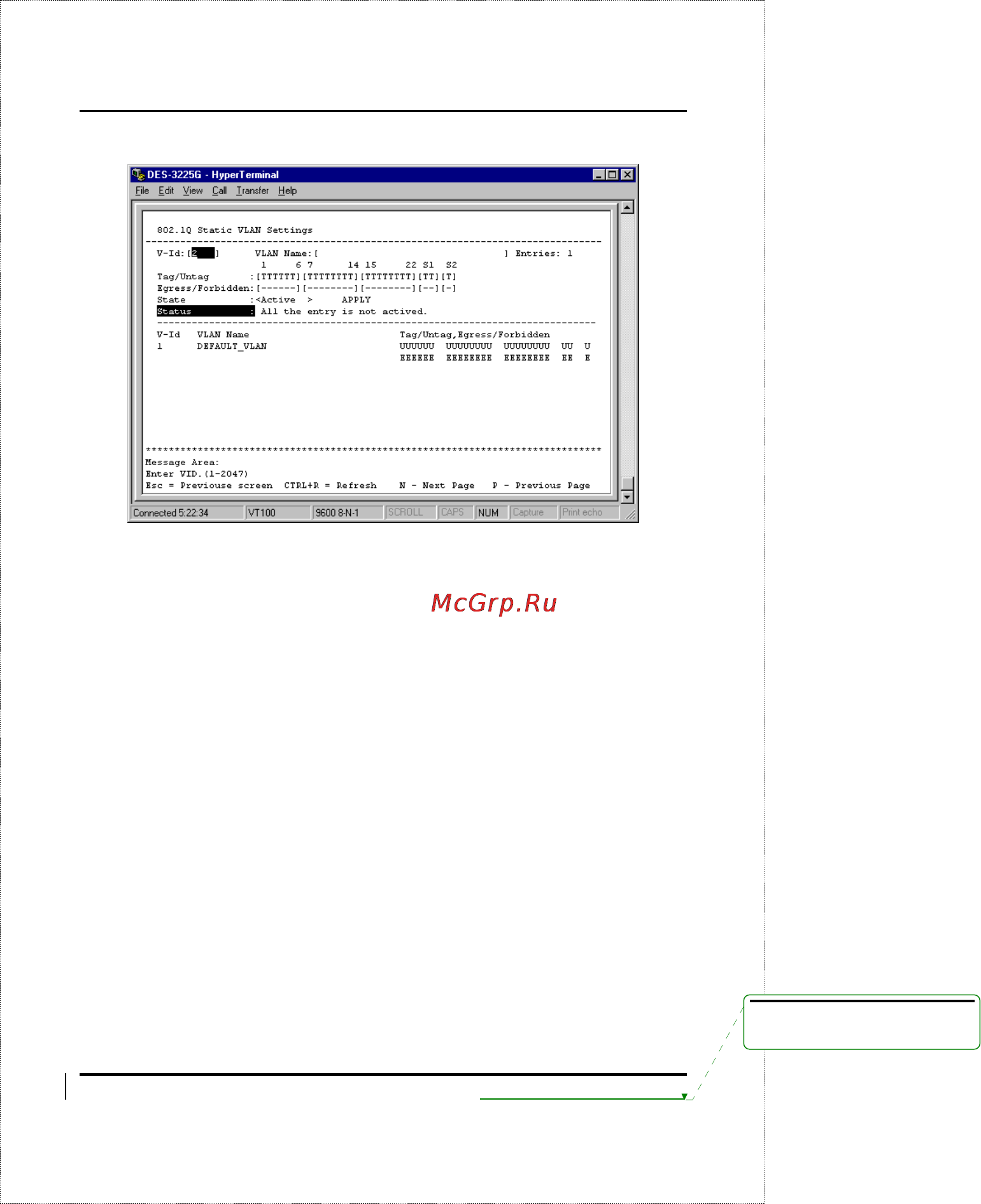

Figure 6-32. 802.1Q Static VLAN Settings screen

The fields you can set are:

♦ Vid Enter a VLAN ID from 2 to 2048.

♦ VLAN Name Description of the VLAN.

♦ Tag/Untag Toggle between ‘‘T’’ for tag and ‘‘U’’ for untag for

each port.

♦ Egress/Forbidden Select ‘‘E’’ for Egress, ‘‘F’’ for forbidden, or ‘‘-

‘‘ for ______ for each port.

♦ State Toggle between Active and Inactive.

A table on the lower part of the screen displays the current V-Id,

VLAN Name, and Tag/Untag, Egress/Forbidden status for all

802.1q static VLAN entries.

Удалено: Using the Console

Interface
