24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 105

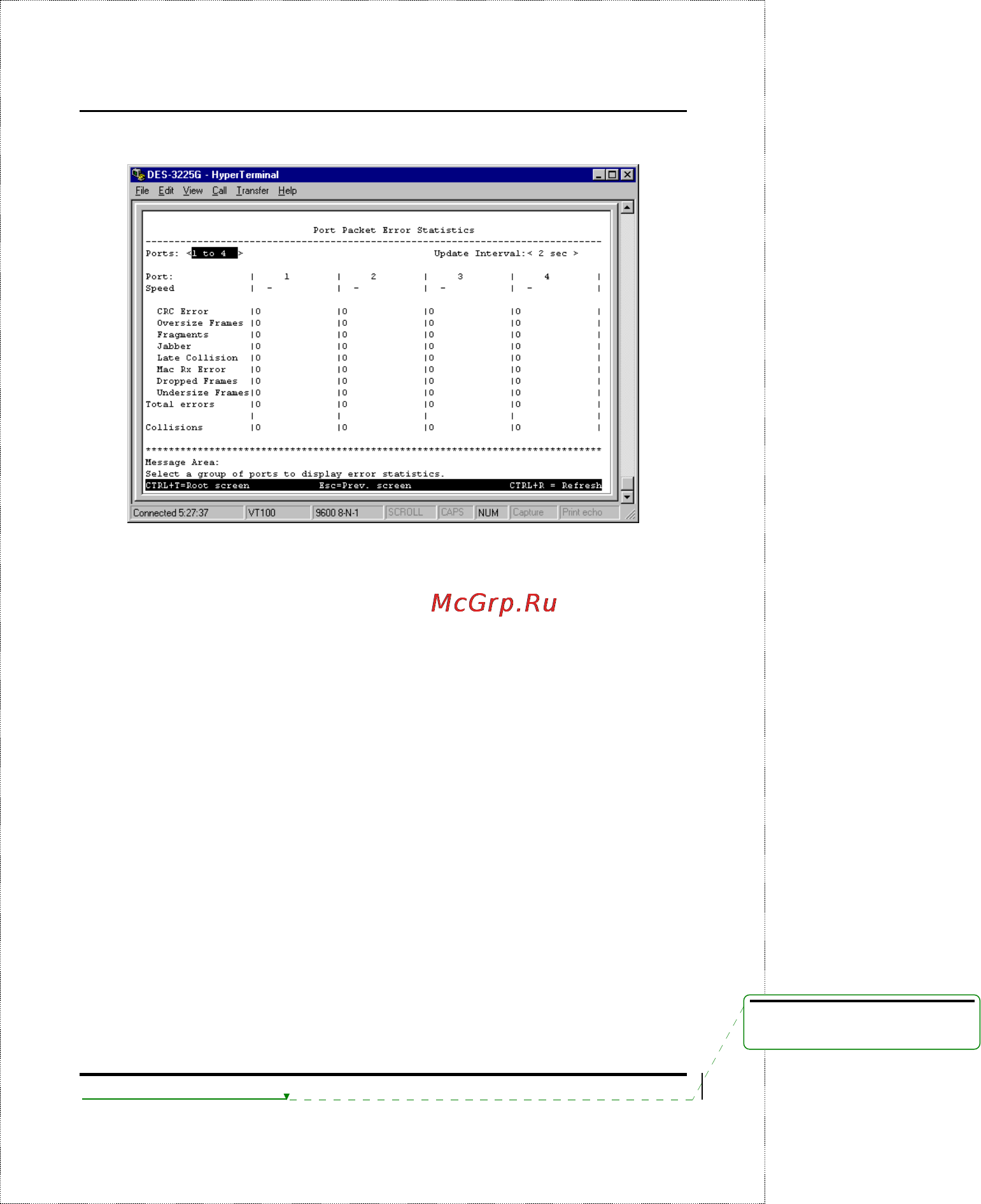

Figure 6-44. Port Packet Error Statistics table
Select the desired setting in the Ports field: 1 to 4, 5 to 8, 9 to 12,
13 to 16, 17 to 20, 21-S1P2, or Slot 2 and the desired increment
setting in the Update Interval field: 2 sec, 5 sec, 15 sec, 30 sec, 1
min, or Suspend.
The statistic counters displayed are defined as follows:
♦ Speed If the link is up, the speed and duplex status will be
displayed; if the link is down ‘‘-” will be displayed.
♦ CRC Error The number of frames that fail the CRC
integrity check.
♦ Oversize Frames The number of good frames with length
greater than 1518 bytes and therefore are greater than the
maximum legal length.
Удалено: Using the Console
Interface
