24-port NWay Ethernet Switch User’s Guide
Using the Console Interface 107

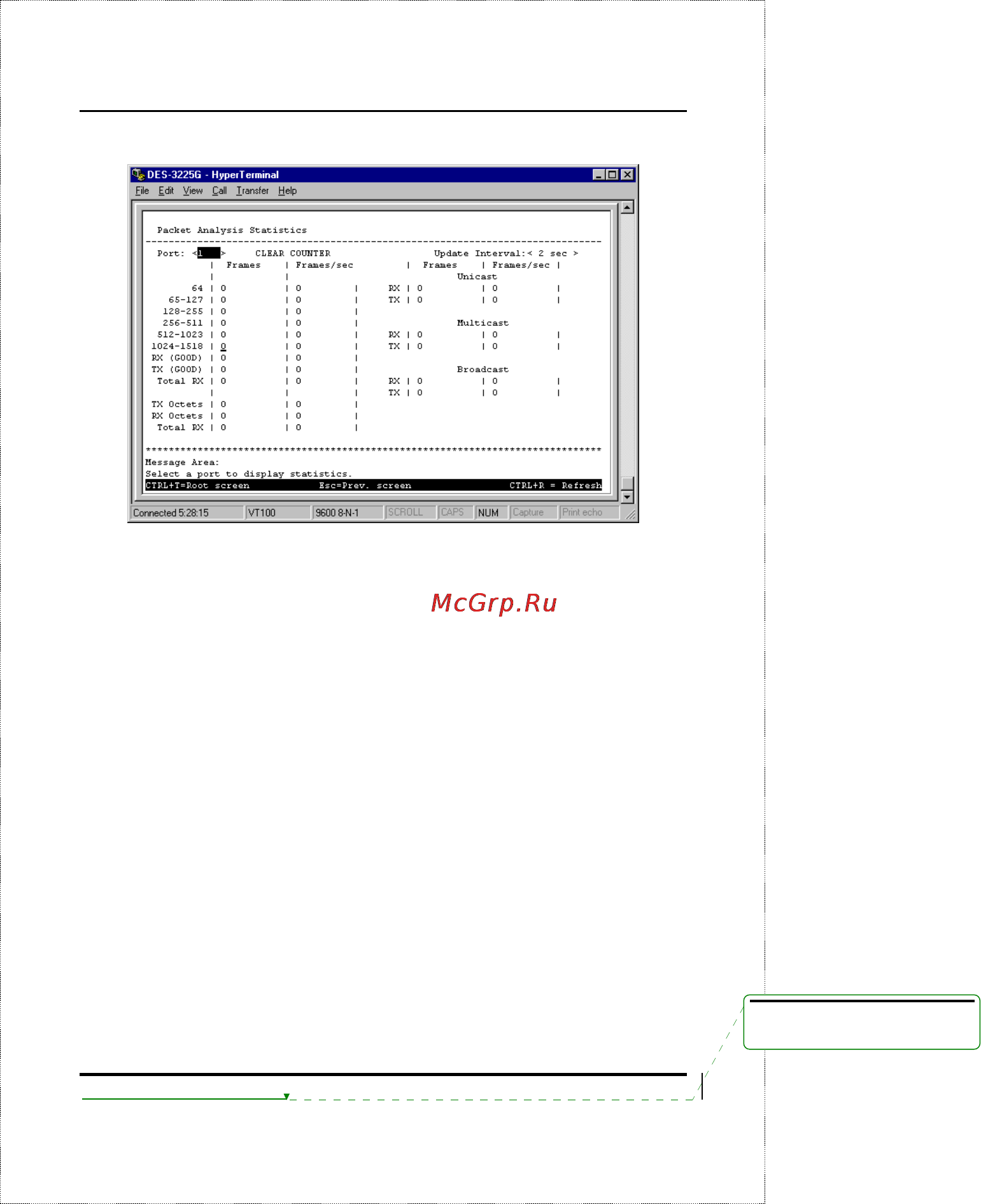

Figure 6-45. Packet Analysis Statistics table
Select the desired setting in the Ports field: 1 to 4, 5 to 8, 9 to 12,
13 to 16, 17 to 20, 21-S1P2, or Slot 2 and the desired increment
setting in the Update Interval field: 2 sec, 5 sec, 15 sec, 30 sec, 1
min, or Suspend. Press CLEAR to reset the counters.
The statistic counters displayed are defined as follows:
♦ 64, 65-127, 128-255, 256-511, 512-1023, 1024-1518 The
number of good frames of various length ranges, both valid
and invalid.
♦ RX (GOOD) The number of good frames received. This also
includes local and dropped packets.
♦ TX (GOOD) The number of good frames sent from the
respective port.
♦ Total RX The number of frames received, good and bad.
