24-port NWay Ethernet Switch User’s Guide

54 Using the Console Interface

Figure 6-4. User Accounts Management menu

2. Choose Create/Modify User Accounts. The following

screen appears:

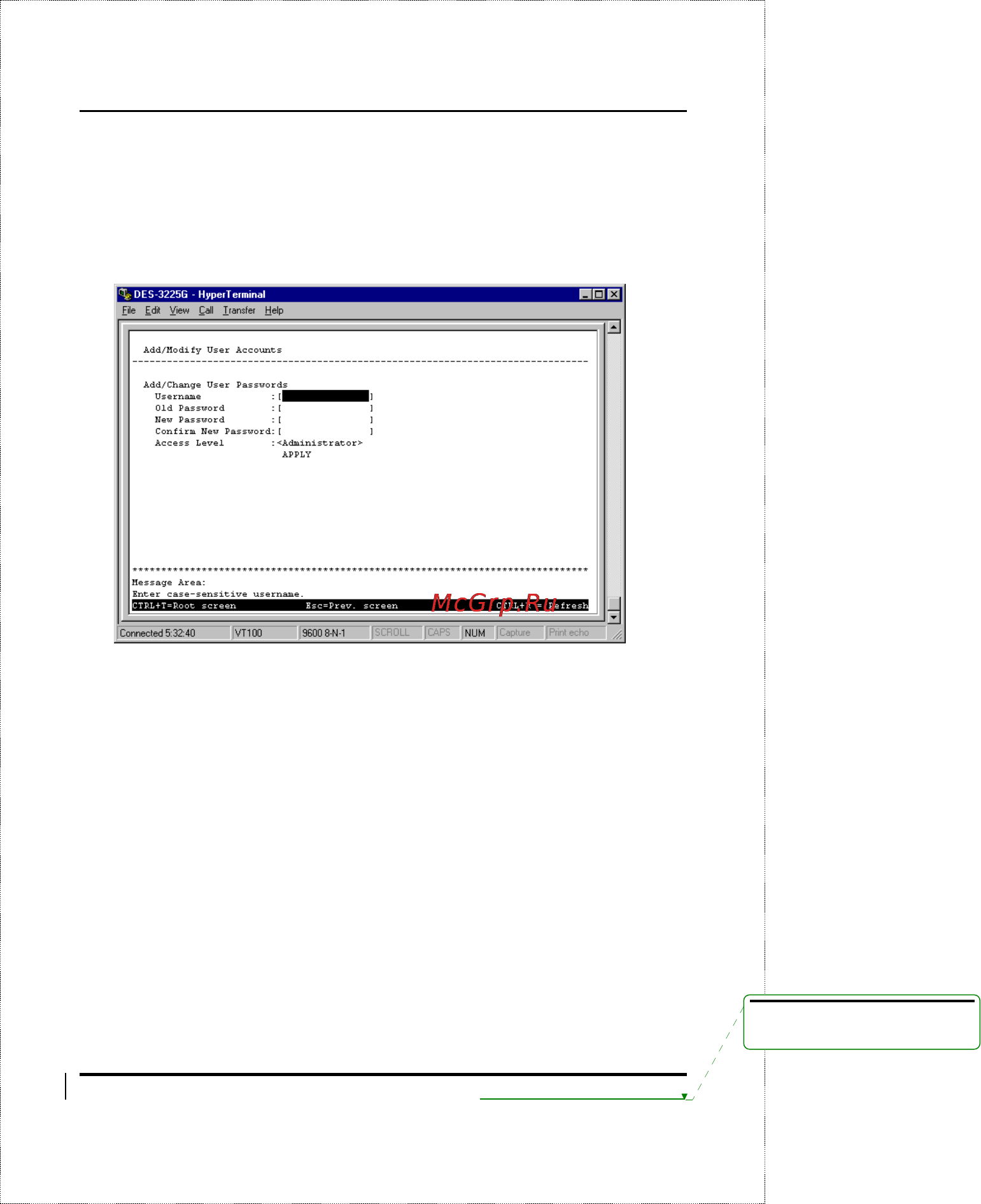

Figure 6-5. Add/Modify User Accounts screen

3. Type in your Username and press Enter.

4. If you are a new user, type in the Old Password and press

Enter.

5. Type in the New Password you have chosen, and press

Enter. Type in the same new password in the following field

to verify that you have not mistyped it.

6. Determine whether the new user should have Normal User

or Administrator privileges.

7. Choose the APPLY command to let the password change take

effect.
