24-port NWay Ethernet Switch User’s Guide
68 Using the Console Interface

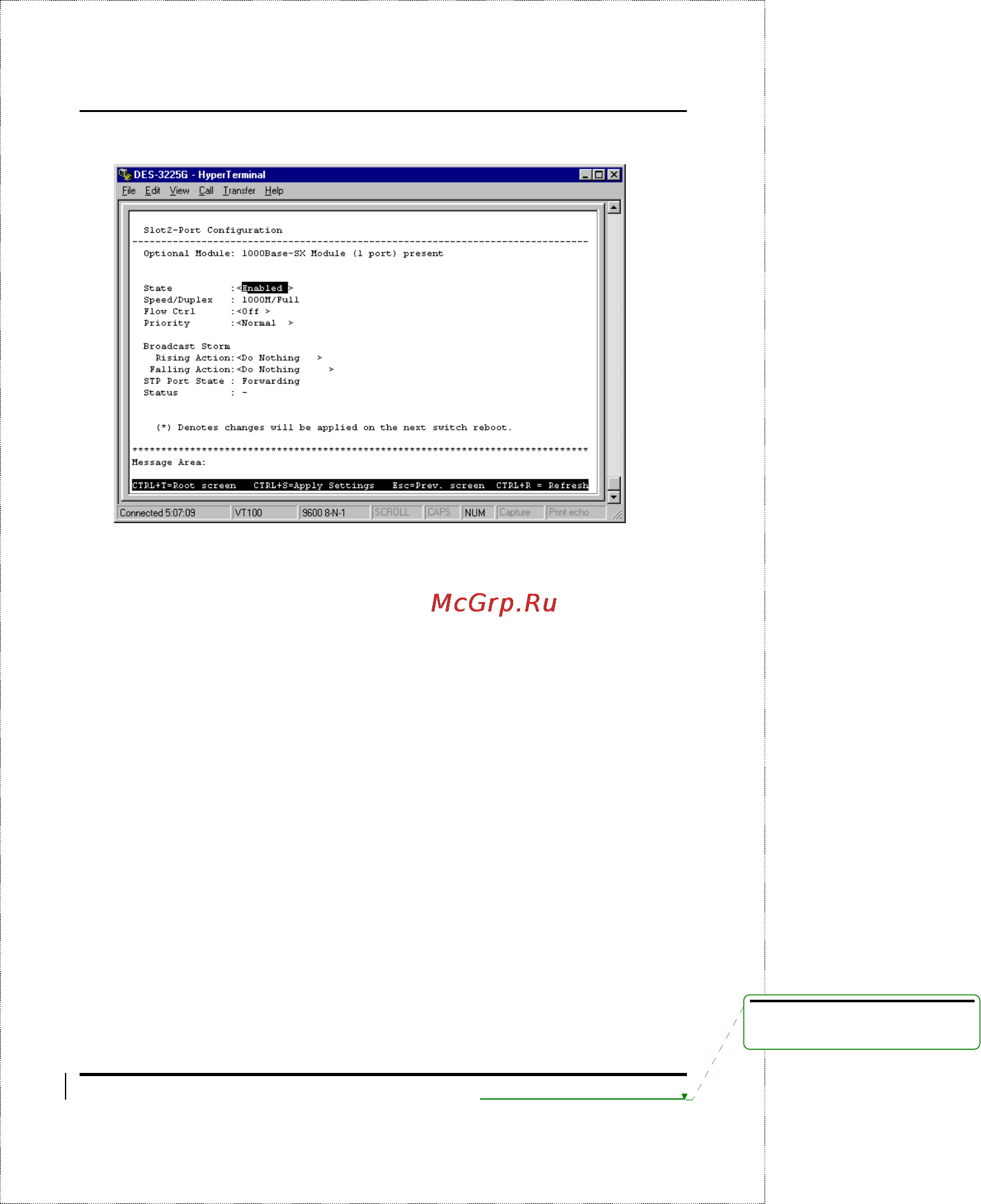

Figure 6-14. Slot2-Port Configuration screen
2. In the State field, change the port state to Enabled or
Disabled.
3. In the Flow Ctrl field, toggle On or Off. When Auto-
Negotiation is enabled, Flow Control capability exists but is
not necessarily functioning at that moment. Confirm that
Flow Control is in force by checking the Status field.
4. In the Priority field, select Normal, High or Low. The
Normal setting depends on the packet priority level. High
and Low refer to allowing a port either the first or last
priority.
5. In the first Broadcast Storm field, Rising Action, select
from Do Nothing, Blocking, or Blocking-Trap. Blocking
means only multicast and unicast packets can enter this
port. Blocking-Trap means only multicast and unicast
packets can enter this port and a trap will be sent. The upper
Удалено: Using the Console
Interface
