SiE39-404 Field Setting
Test Operation 129

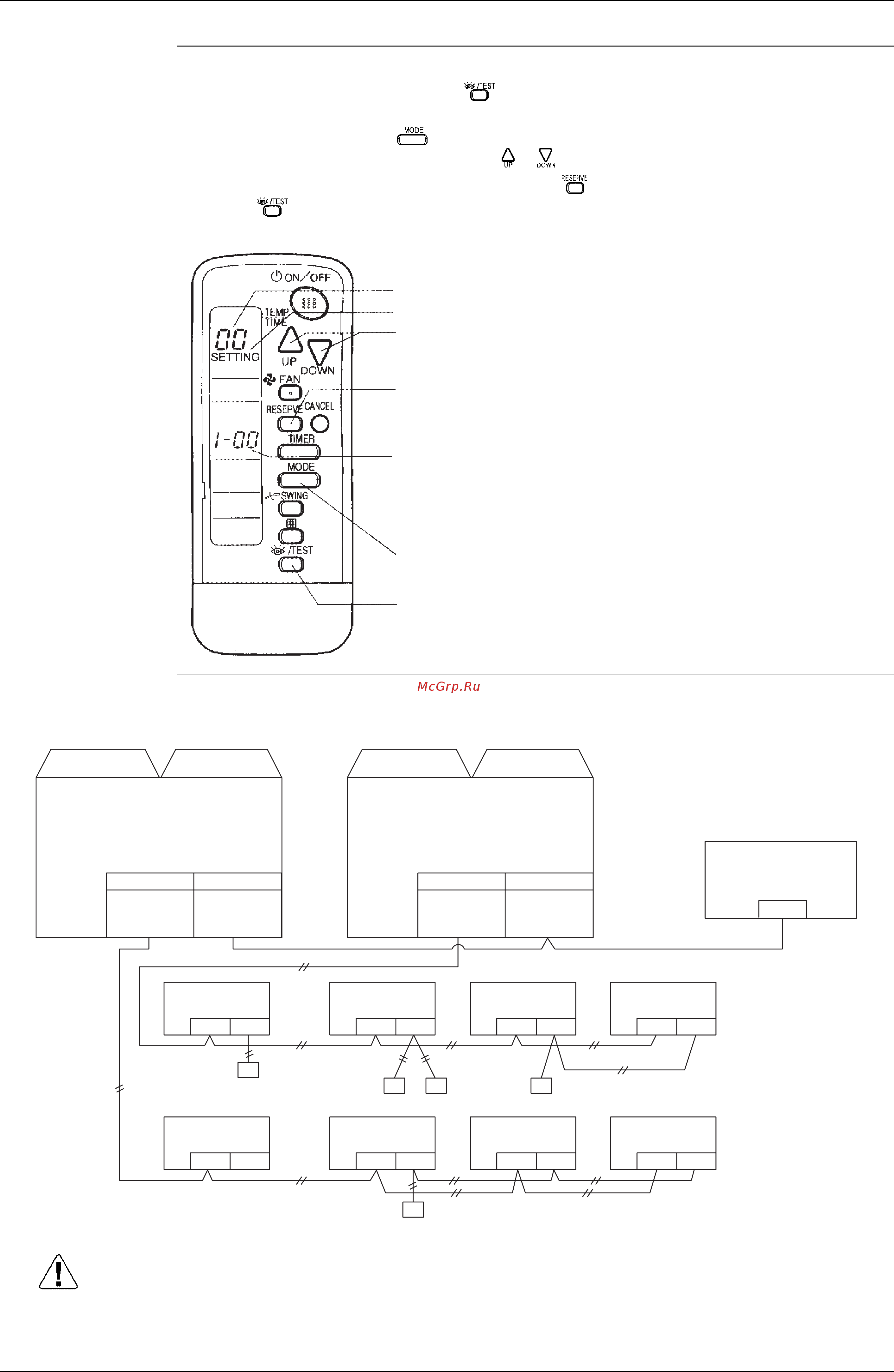

BRC7C Type Group No. setting by wireless remote controller for centralized control
1. When in the normal mode, push button for 4 seconds or more, and operation then
enters the “field set mode.”
2. Set mode No. “00” with button.
3. Set the group No. for each group with button (advance/backward).
4. Enter the selected group numbers by pushing button.
5. Push button and return to the normal mode.
BRC7C Type
Group No. Setting
Example
Caution When turning the power supply on, the unit may often not accept any operation while "88" is
displaying after all indications were displayed once for about 1 minute on the liquid crystal
display. This is not an operative fault.
GROUP NO.
4
3
MODE NO.
FIELD SET MODE
2
1, 5
(V0916)
F1 F2
F1 F2 F1 F2
F1 F2
P1 P2
RC
RC
RC RC RC
F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2
F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2
1-03
1-00
1-01
1-02
1-04
F1 F2 F1 F2
Indoor/Outdoor
Outdoor/Outdoor
Indoor/Outdoor
Outdoor/Outdoor
Centoral Remote
Control
Group Control by Remote Control
(automatic unit address)
Main
Sub
No Remote Control
(V0917)
