Daikin RXYQ16M7W1B [225/344] Troubleshooting
![Daikin RXYQ16M7W1B [225/344] Troubleshooting](/views2/1707433/page225/bge1.png)

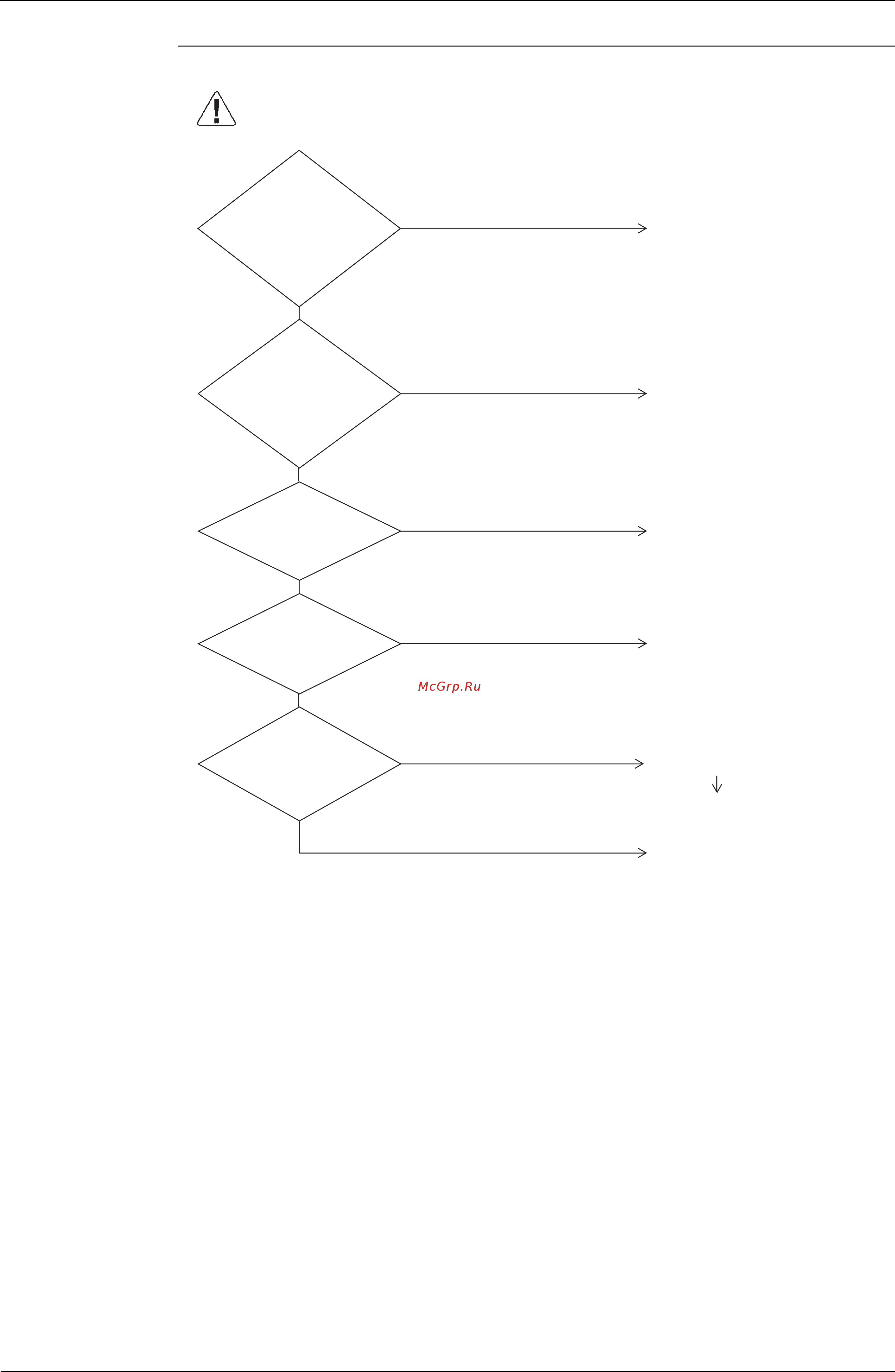

Troubleshooting by Indication on the Remote Controller SiE39-404
214 Troubleshooting
Troubleshooting
(V2815)
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
The
transmission
wiring between the
outdoor unit PC board,
fan drive board and
inverter unit is
disconnected.
Fix the disconnection and turn on
again.
Connect transmission wiring and
turn on again.
The
microcomputer
monitor (green) on
the inverter P.C.B
isblinking.
The voltage
between red and
white of X1A on the inverter
unit is 220 ~ 240 V.
Defect of outdoor main PC board
or defect of inverter PC boa
rd.
Check the noi
se filter (Z1F) for
disconnection, and check the
power supply wiring or the inverter
PC board.
Replace inverter PC board.
When the LC malfunction occur
again, replace control PC board.
The
microcomputer
monitor (green) on
fan drive board is
blinking.
Check connection of the connector.
Are the
connectors
between the main
PC board (A1P),
fan drive PC board (A3P)
and inverter PC board
(A2P) connected
securely?
Caution
NO
YES
YES
NO
NO
YES
YES
YES
NO
NO
