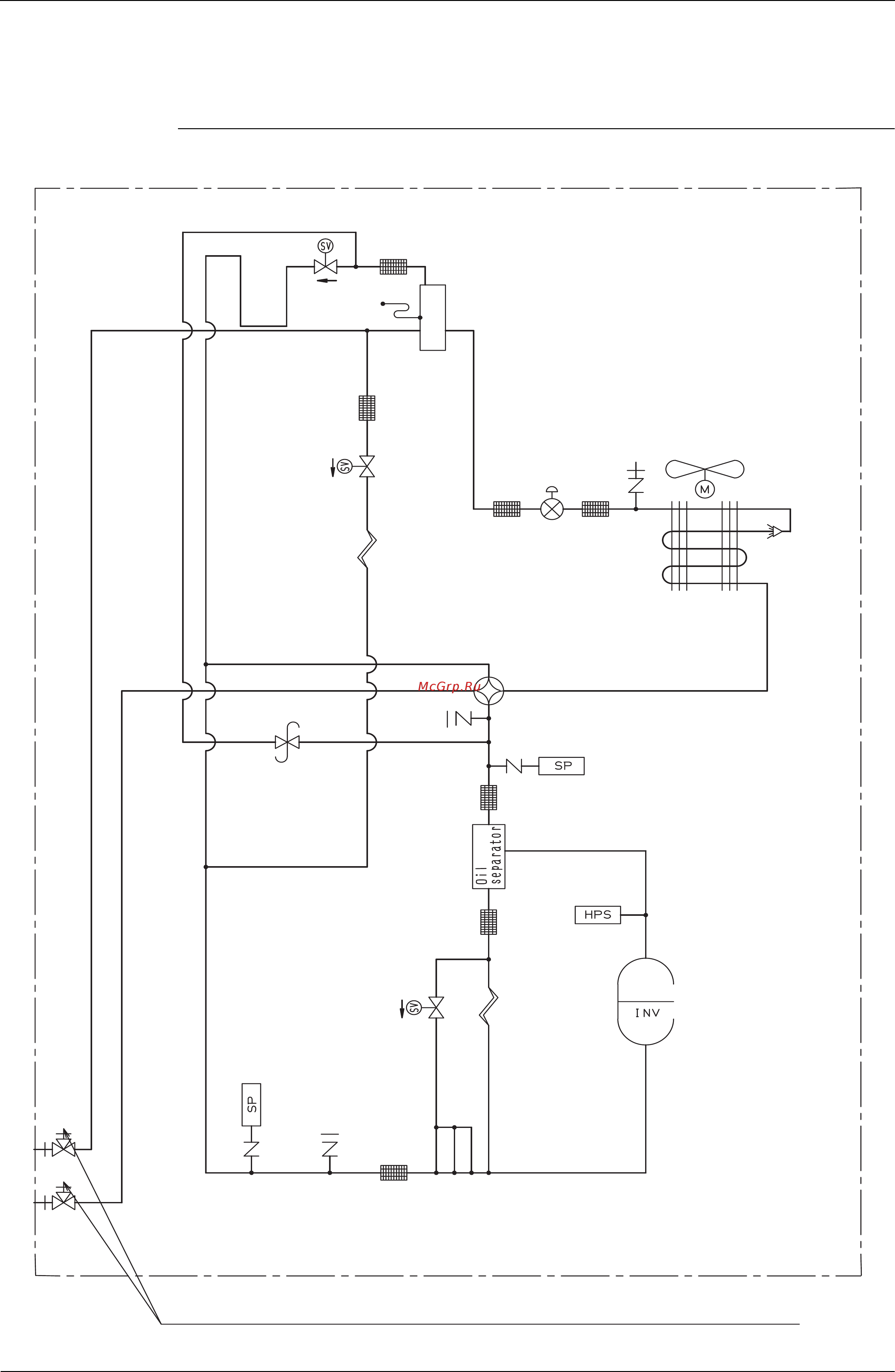

Piping Diagrams SiE39-404
260 Appendix
1. Piping Diagrams
1.1 Outdoor Unit
RXYQ5MY1B
Stop valve (with service port on on-site piping side ∅ 7.9 mm flare connection)
Low pressure
sensor
Pressure
regulating valve
Solenoid
valve
Capillary
tube
High pressure
switch
High pressure
switch
Filter
Filter
Compressor
Four way
valve
Solenoid
valve
Solenoid
valve
Filter
Filter
Capillary
tube
Filter
Heat exchanger
Electronic
expansion valve
Heat
exchanger pipe
Filter
Fan
Receiver
Filter
4D040337C
