Wiring Diagrams for Reference SiE39-404
280 Appendix

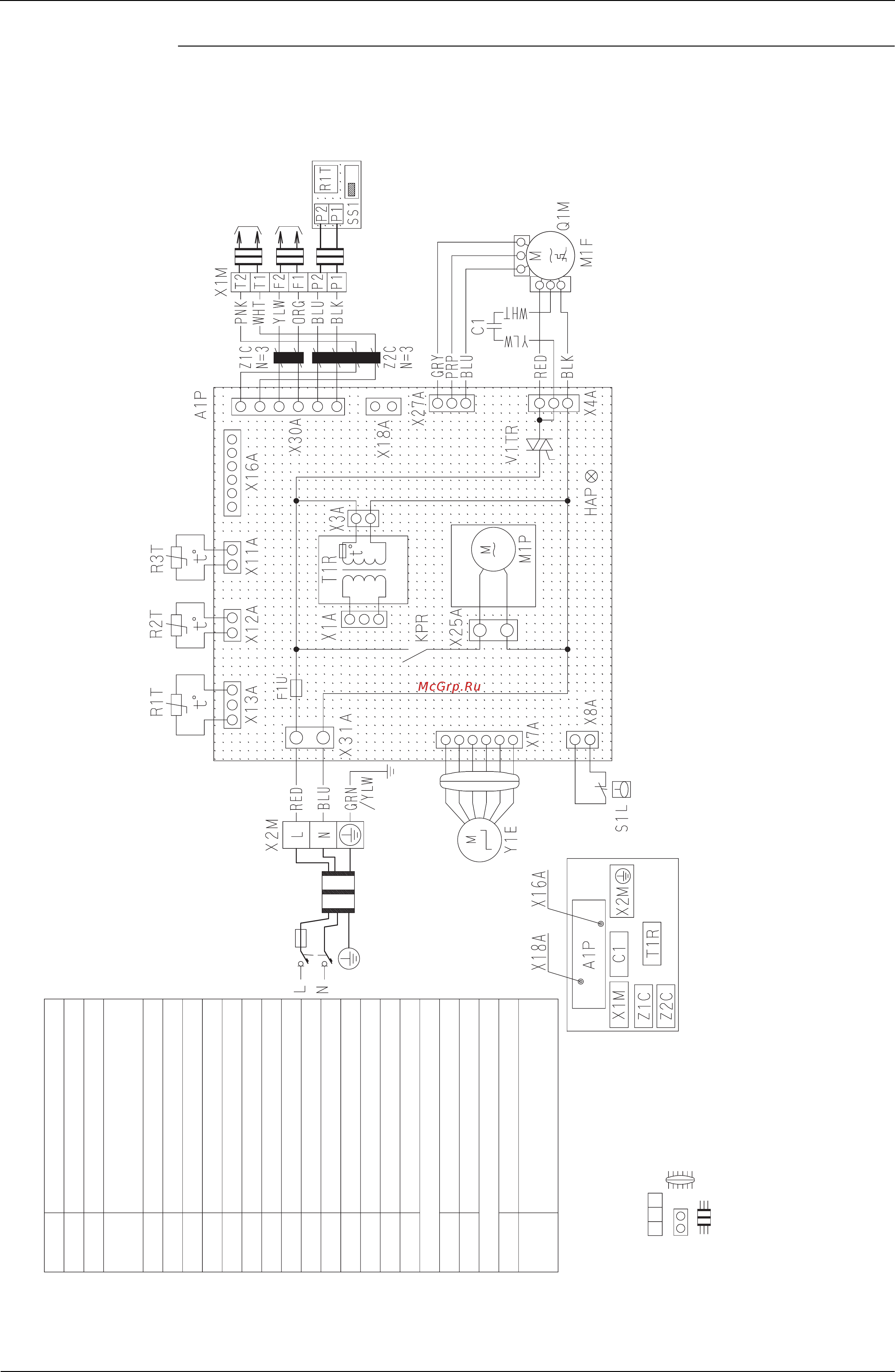

FXDQ20N / 25N / 32N / 40N / 50N / 63NVE
3D045500A
A1P
C1
F1U
HAP
KPR
M1F
M1P
Q1M
R1T
R2T
R3T
S1L
T1R
V1TR
X1M
X2M
Y1E
Z1C•Z2C
Printed circuit board
Capacitor (M1F)
Fuse (F5A/250V)
Light emitting diode
(Service monitor-green)
Magnetic relay (M1P)
Motor (Indoor fan)
Motor (Drain pump)
Thermal protector (M1F embedded)
Thermistor (Air)
Thermistor (Coil-1)
Thermistor (Coil-2)
Float switch
Transformer (220V/22V)
Phase control circuit
Terminal block
Terminal block
Electronic expansion valve
Noise filter (Ferrite core)
R1T
SS1
Thermistor (Air)
Selector switch (Main/Sub)
Wired remote control
Notes:
1. : Terminal
, : Connector
2. : Field wiring
3. In case using central remote control, connect it to the unit in accordance with the attached installation manual.
4. Remote control model variesaccording to the combination system, confirm engineering materialsand catalogs, etc. before connecting.
5. When connecting the input wires
from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation manual attached the unit.
6. Symbolsshowsas follows: RED: red, BLK: black, WHT: white, YLW: yellow, PRP: purple, GRY: gray, BLU: blue, PNK: pink, ORG:
orange, GRN: green.
X16A
X18A
Connector (Adaptor for wiring)
Connector (Wiring adaptor
for electrical appendices)
Connector for optional parts
Power supply
Transmission wiring
central remote control
Note: 3
Note: 5
Input from outside
Wired remote
control
220-240V
~
50Hz
220V
~
60Hz
Control box
