SiE39-404 Field Setting
Test Operation 133

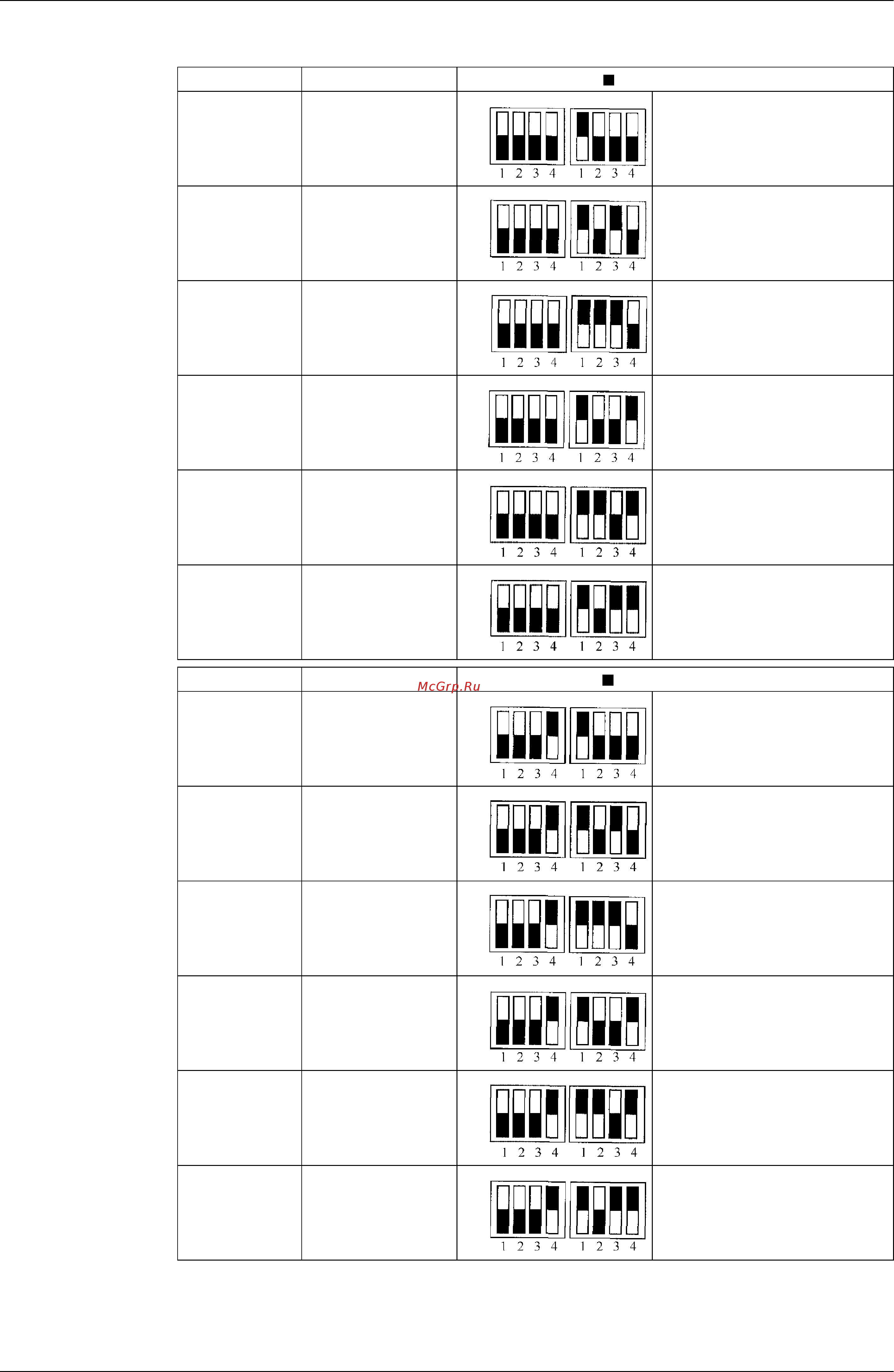

“Detail of DS1-4, DS2-1~4 setting”
Previous unit Mfg. No. Setting method ( represents the position of switches)
HEAT
PUNP(5HP)
RXYQ5MY1B
6300001~6300272 Set DS2-1 to ON.
HEAT
PUNP(8HP)
RXYQ8MY1B
6300001~6300491 Set DS2-1 and DS2-3 to ON.
HEAT
PUNP(10HP)
RXYQ10MY1B
6300001~6301014
Set DS2-1, DS2-2 and DS2-3
to ON.
HEAT
PUNP(12HP)
RXYQ12MY1B
6300001~6300276 Set DS2-1 and DS2-4 to ON.
HEAT
PUNP(14HP)
RXYQ14MY1B
6300001~6300314
Set DS2-1, DS2-2 and DS2-4
to ON.
HEAT
PUNP(16HP)
RXYQ16MY1B
6300001~6300500
Set DS2-1, DS2-3 and DS2-4
to ON.
New unit Mfg. No. Setting method ( represents the position of switches)
HEAT
PUNP(5HP)
RXYQ5MY1B
6300273~ Set DS1-4 and DS2-1 to ON.
HEAT
PUNP(8HP)
RXYQ8MY1B
6300492~
Set DS1-4, DS2-1 and DS2-3
to ON.
HEAT
PUNP(10HP)
RXYQ10MY1B
6301015~
Set DS1-4, DS2-1, DS2-2 and
DS2-3 to ON.
HEAT
PUNP(12HP)
RXYQ12MY1B
6300277~
Set DS1-4, DS2-1 and DS2-4
to ON.
HEAT
PUNP(14HP)
RXYQ14MY1B
6300315~
Set DS1-4, DS2-1, DS2-2 and
DS2-4 to ON.
HEAT
PUNP(16HP)
RXYQ16MY1B
6300501~
Set DS1-4, DS2-1, DS2-3 and
DS2-4 to ON.
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
