SiE39-404 Troubleshooting (OP: Schedule Timer)
Troubleshooting 245
4.3 “M8” Malfunction of Transmission Between Optional
Controllers for Centralized Control
Remote
Controller
Display
M8
Applicable
Models
All models of indoor units, schedule timer
Method of
Malfunction
Detection
Malfunction
Decision
Conditions
Supposed
Causes
Malfunction of transmission between optional controllers for centralized control
Defect of PC board of optional controllers for centralized control

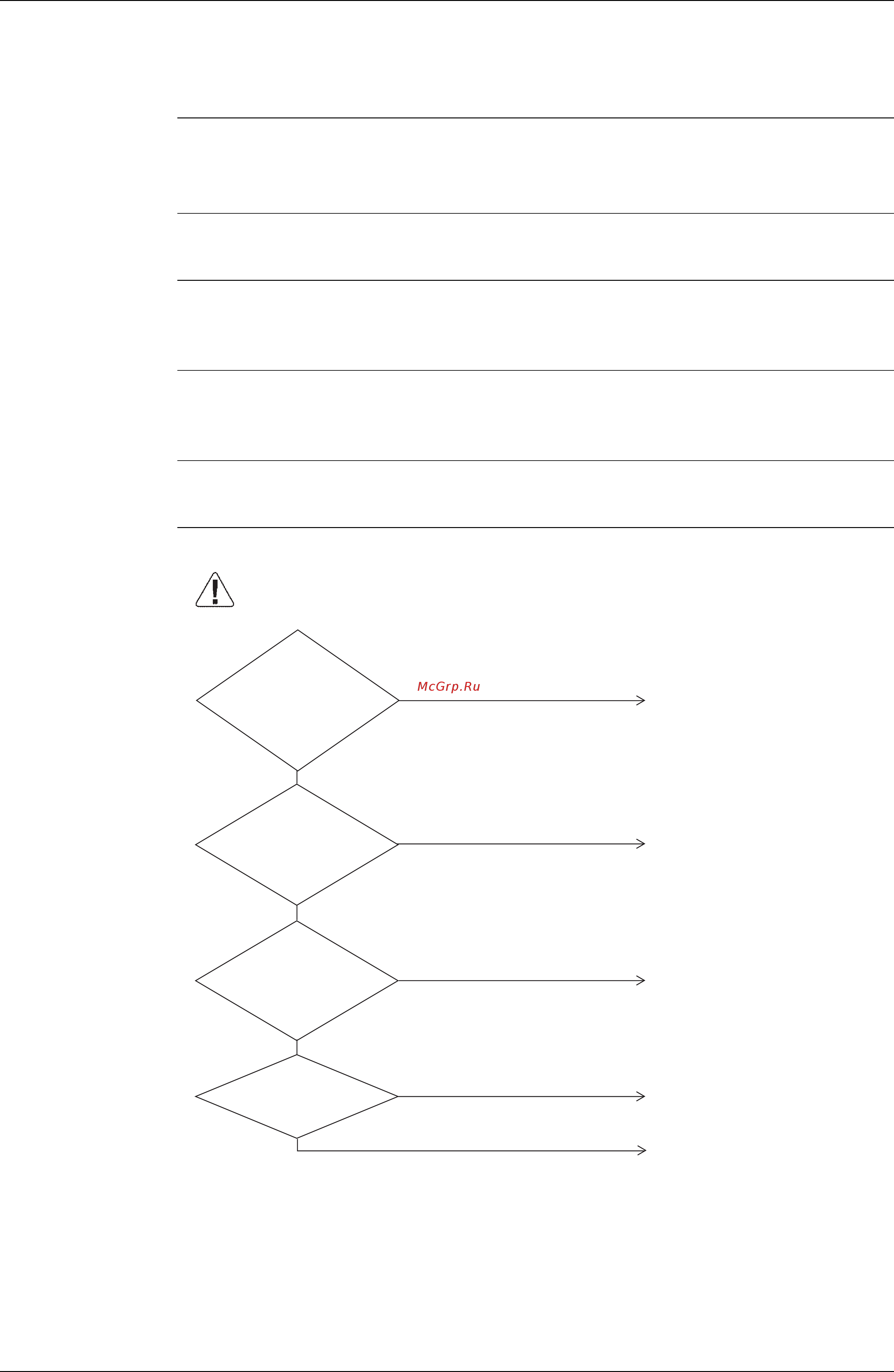

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2838)
Caution
Is
transmission wiring
disconnected or wired
incorrectly?
The PC board of one of the
optional controllers for centralized
control is defective. Try turning
on/off using each optional
controllers for centralized control,
and replace the PC board of the
one that isunable to control the
indoor unit.
Fix the wiring correctly.
Has a
once connected
optional controller for
centralized control been
disconnected or
itsaddress
changed?
Turn on power supply for all
optional controllers for centralized
control.
Reset power su
pply
simultaneously for all optional
controllers for centralized control.
Is
the power supply
turned on for all optional
controllers for
centralized
control?
Set reset switch to "normal."
Is
the reset switch
of all optional controllers
for centralized control
set to "normal" ?
YES
NO
NO
YES
NO
NO
YES
YES
