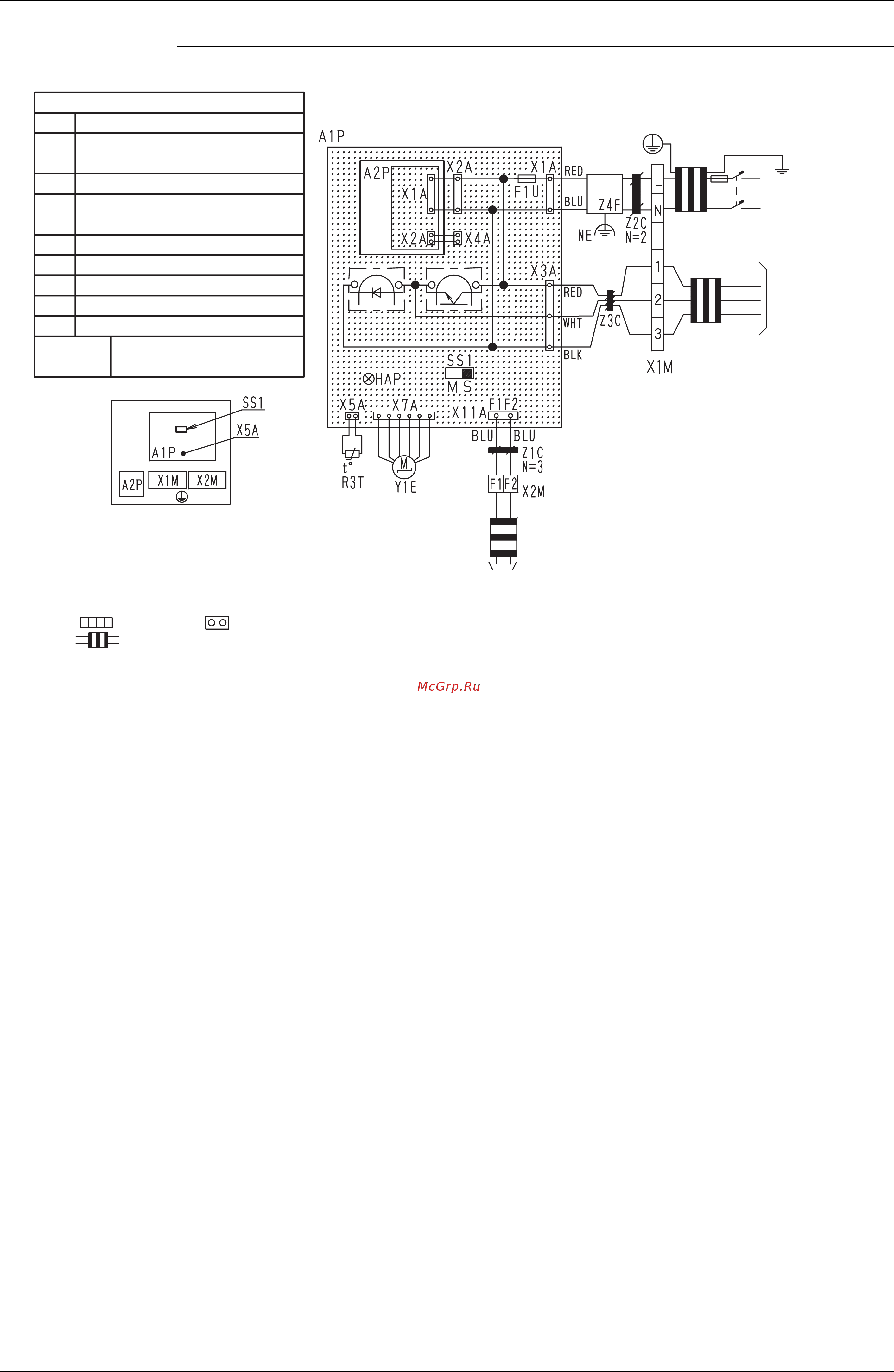

SiE39-404 Wiring Diagrams for Reference
Appendix 291
BEVQ50MVE
3D046579A
A1P
A2P
F1U
HAP
R3T
SS1
X1M
X2M
Y1E
Printed circuit board
Power supply printed circuit
board assy (220-240V/16V)
Fuse (훾, 10A, 250V)
Light emitting diode
(Service monitor-green)
Thermistor (Gas)
Selector switch (M/S)
Terminal strip (Power)
Terminal strip (Transmission)
Electronic expansion valve
Z1C • Z2C
Z3C • Z4C
Noise filter
Notes:
1. : Terminal, : Connector
2. : Field wiring.
3. This wiring diagram only shows the BEV unit.
S
ee the wiring diagramsand installation manuals for the wiring and settings for the indoor, outdoor.
4. See the indoor unit’s wiring diagram when installing optional parts for the indoor unit.
5. Only one indoor unit may be connected to the BEV unit.
See the indoor unit’s wiring diagram for when connecting the remote control.
6. Alwaysuse the sky air connection adapter for the indoor unit when using a central control unit.
Refer to the manua
l attached the
unit when connecting. (In FXAQ~MHV1, it isunnecessary.)
7. Cool/heat changeover of indoor units connected to BEV unit cannot be carried out.
In case of asystem with BEV unit only, cool/heat selector is required.
8. Connect the attached thermistor to the R3T.
9. Symbolsshow as follows. (BLU: blue, RED: red, WHT: white, BLK: black)
Power supply
To outdoor unit
Control box
To indoor unit
50
~
220-240V
60
~
220-240V
BEV unit
