Wiring Diagrams for Reference SiE39-404
282 Appendix

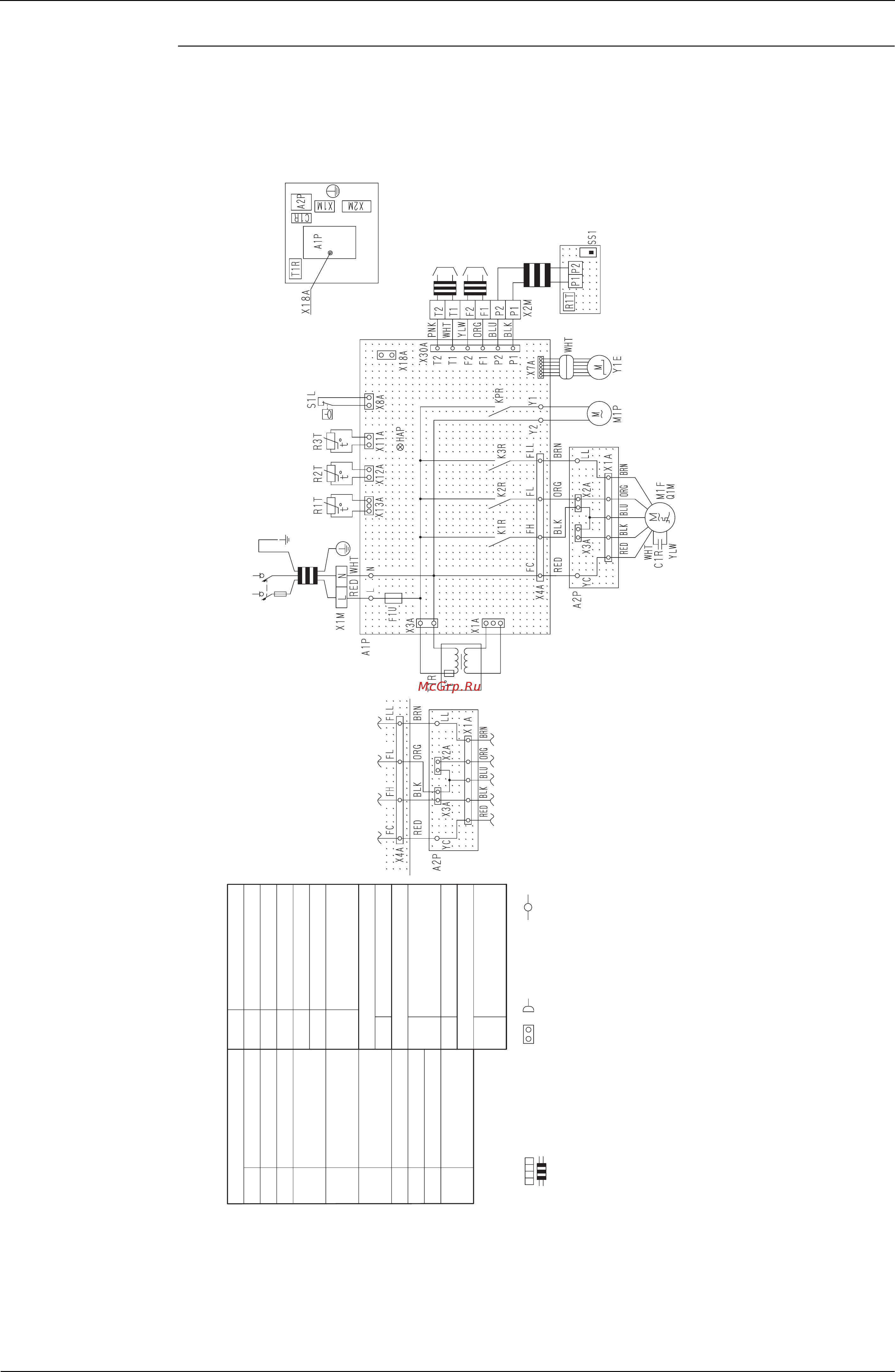

FXMQ40M / 50M / 63M / 80M / 100M / 125MVE
3D039620A
A1P
A2P
C1R
F1U
F1U
HAP
K1R-K3R
KPR
M1F
Q1M
Printed circuit board
Terminal board
Capacitor (M1F)
Fuse (훾, 5A, 250V)
40 • 50 • 63 • 80 Type
Fuse (훾, 10A, 250V)
100 • 125 Type
Light emitting diode
(Service monitor-green)
Magnetic relay (M1F)
Magnetic relay (M1P)
Motor (Indoor fan)
Thermo switch
(M1F embedded)
R1T
R2T•R3T
S1L
T1R
X1M
X2M
Y1E
Thermistor (Air)
Thermistor (Coil)
Float switch
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block (Control)
Electronic expansion
valve
SS1
R1T
Selector switch
(Main/Sub)
Thermistor (Air)
Wired remote control
Indoor unit
M1P Motor (Drain pump)
Optional parts
X18A
Connector (Wiring adaptor
for electorical appendices)
Connector for optional parts
Notes:
1. : Terminal block, , : Connector, : Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in accordance with the attached instruction manual.
4. When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation manual attached the unit.
5. In case high of low E.S.P. operation, change the wiring connection of X2A as shown upper figure.
6. S
ym
bolsshowsas follows. (PNK; pink, WHT: white, YLW: yellow, ORG: orange, BLU: blue, BLK: black, RED: red,
BRN: brown)
7. Use copper conductors only.
Note 5
Note: 3
Transmission wiring
central remote control
Note: 4
Input from outside
Wired remote control
(Optional accessory)
Power supply
Electric partsbox
220-240V
~
50Hz
220V
~
60Hz
