SiE39-404 Troubleshooting by Indication on the Remote Controller
Troubleshooting 235
2.52 “UH” Malfunction of System, Refrigerant System Address
Undefined
Remote
Controller
Display
UH
Applicable
Models
All models of indoor units
RXYQ5~48M
Method of
Malfunction
Detection
Malfunction
Decision
Conditions
Supposed
Causes
Improper connection of transmission wiring between outdoor unit and outdoor unit outside
control adaptor
Defect of indoor unit PC board
Defect of outdoor unit PC board (A1P)

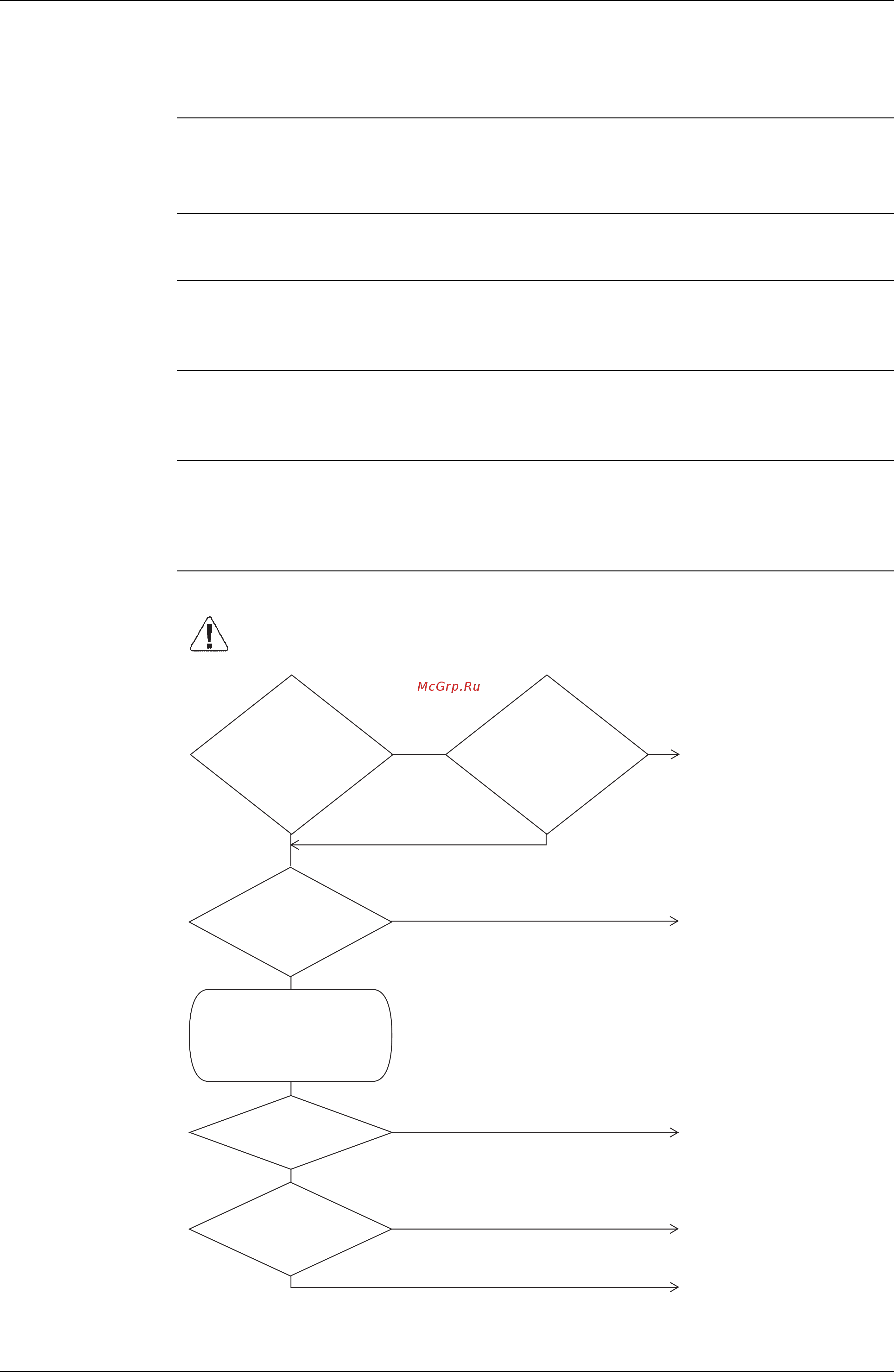

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2831)
Caution
After fixing incorrect wiring,
push and hold the RESET
button on the master outdoor
unit PC board for 5 seconds.
Normal
Is
electricity
being introduce for
the first time after
installationor after an indoor
or outdoorunit PC
board has been
replaced?
Is
indoor - outdoor and
outdoor - outdoor unit
transmission wiring
normal?
Normal
Doesa malfu
nction
occur?
Does
a "UH" malfunction occur
for all indoor units in
the system?
Does
a malfunction
occur even after 12
minutes elapses from the
time when electricity is
introducedto indoor
and outdoor
units?
Replace indoor unit PC board.
Replace outdoor unit PC
board (A1P).
After fixing incorrect wiring,
push and hold the RESET
button on the outdoor unit
PC bo
ard for 5 seconds
Replace whichever is
defective.
∗ The unit will not run for up to
12 minutes.
YES
YES
YES
NO
YES
NO
NO
YES
YES
NO
