Wiring Diagrams for Reference SiE39-404
288 Appendix

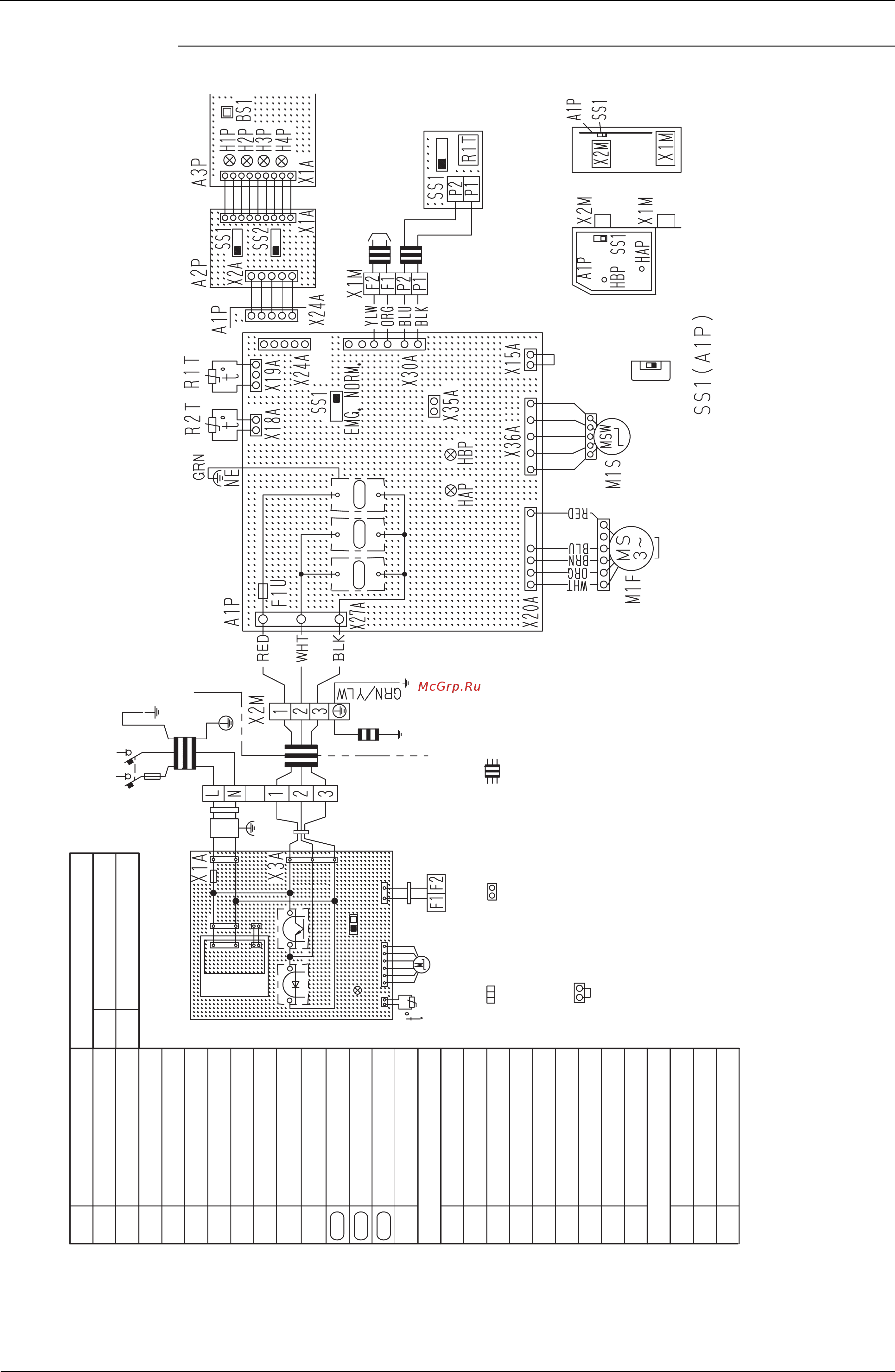

FXAQ20MH / 25MH / 32MH / 40MH / 50MHV1
3D046348A
A1P
F1U
HAP
HBP
M1F
M1S
R1T
R2T
SS1
X1M
X2M
PC
RC
TC
Printed circuit board
Fuse (훾, 3A, 250V)
Light emitting diode
(Service monitor green)
Light emitting diode
(On-green)
Motor (Indoor fan)
Motor (Swing flap)
Thermistor (Air)
Thermistor (Coil liquid)
Selector switch (Emergency)
Ter minal block (Control)
Ter minal block (Power)
Power circuit
Signal receiver circuit
Signal transmission circuit
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
Printed circuit board
Printed circuit board
Push button (On/off)
Light emitting diode (On-red)
Light emitting diode
(Timer-green)
Light emitting diode
(Filter sign-red)
Light emitting diode
(Defrost-orange)
Selector switch (Main/sub)
Selector switch
(infrared address set)
Receiver/display unit
infrared remote control
X15A
X24A
X35A
Connector (Float switch)
Connector
(infrared remote control)
Connector
(Group control adaptor)
Connector for optional parts
Notes:
1. : Terminal, : Connector, : Field wiring
2. Remote control model variesaccording to the combination
system, confirm engineering materialsand catalogs, etc.
before connecting.
3. X24A is connected when the infrared remote control kit is
being used.
4. : Showsshort circuit connector.
5. Symbolsshowsas follows: RED: red, WHT: white,
GRN: green, BLK: black, ORG: orange, BRN: brown, BLU:
blue, YLW: yellow.
6. Confirm the method of setting the selector switch (SS1,
SS2)
of wired remote control and infrared remote control by
ins
tallation manual and engineering data, etc.
7. The BEV unit showsan outline, please refer to a wiring
diagram of BEV unit pasting in detail.
8. In case using central remote control, connect it to the unit in
accordance with the attached installation manual.
Receiver/display unit
(Attached to infrared
remote control)
Power supply
RC TC PC
Note: 3
Wired remote control
Control box (Indoor)
Side
Emg.
Norm.
Front
Forwarding of setting point
Note: 8
Transmission wiring
central remote control
220-240V
~
50
R1T
SS1
Thermistor (Air)
Selector switch (Main/sub)
Wired remote control
Note: 7
BEV unit
Note: 4
