SiE39-404 Troubleshooting by Indication on the Remote Controller
Troubleshooting 205
2.28 “J8” Malfunction of Oil Equalizing Pipe Thermistor (R7T)
Remote
Controller
Display
J8
Applicable
Models
RXYQ5~48M
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by oil equalizing pipe thermistor.
Malfunction
Decision
Conditions
When the oil equalizing pipe thermistor is short circuited or open.
Supposed
Causes
Faulty oil equalizing pipe thermistor (R7T)
Faulty outdoor unit PC board

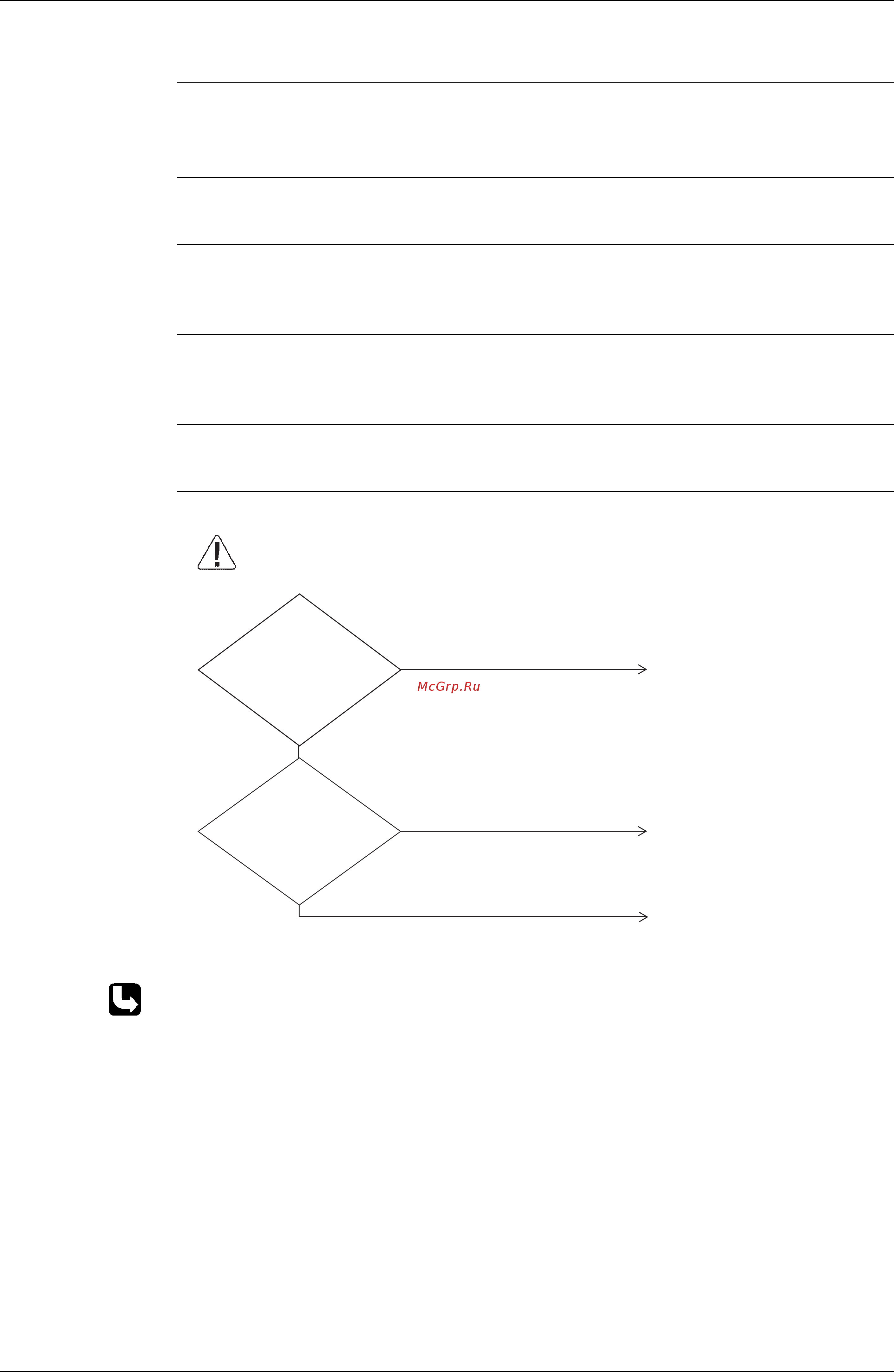

Troubleshooting
∗2: Refer to thermistor resistance / temperature characteristics table on P311.
(V3075)
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Is the
resistance
measured after
removing the thermistor
(R7T) from outdoor unit PC
board normal?
(3.5 kΩ to
360 kΩ)
Replace outdoor unit PC board
(A1P).
Connect thermistor and operate
unit again.
Replace thermistor (R7T).
Is
the connector
for oil equalizing
pipe thermistor
connected to X37A on
outdoor unit PC
board (A1P)?
NO
NO
YES
YES
