Daikin RXYQ16M7W1B [251/344] Troubleshooting
![Daikin RXYQ16M7W1B [251/344] Troubleshooting](/views2/1707433/page251/bgfb.png)
Troubleshooting (OP: Central Remote Controller) SiE39-404
240 Troubleshooting

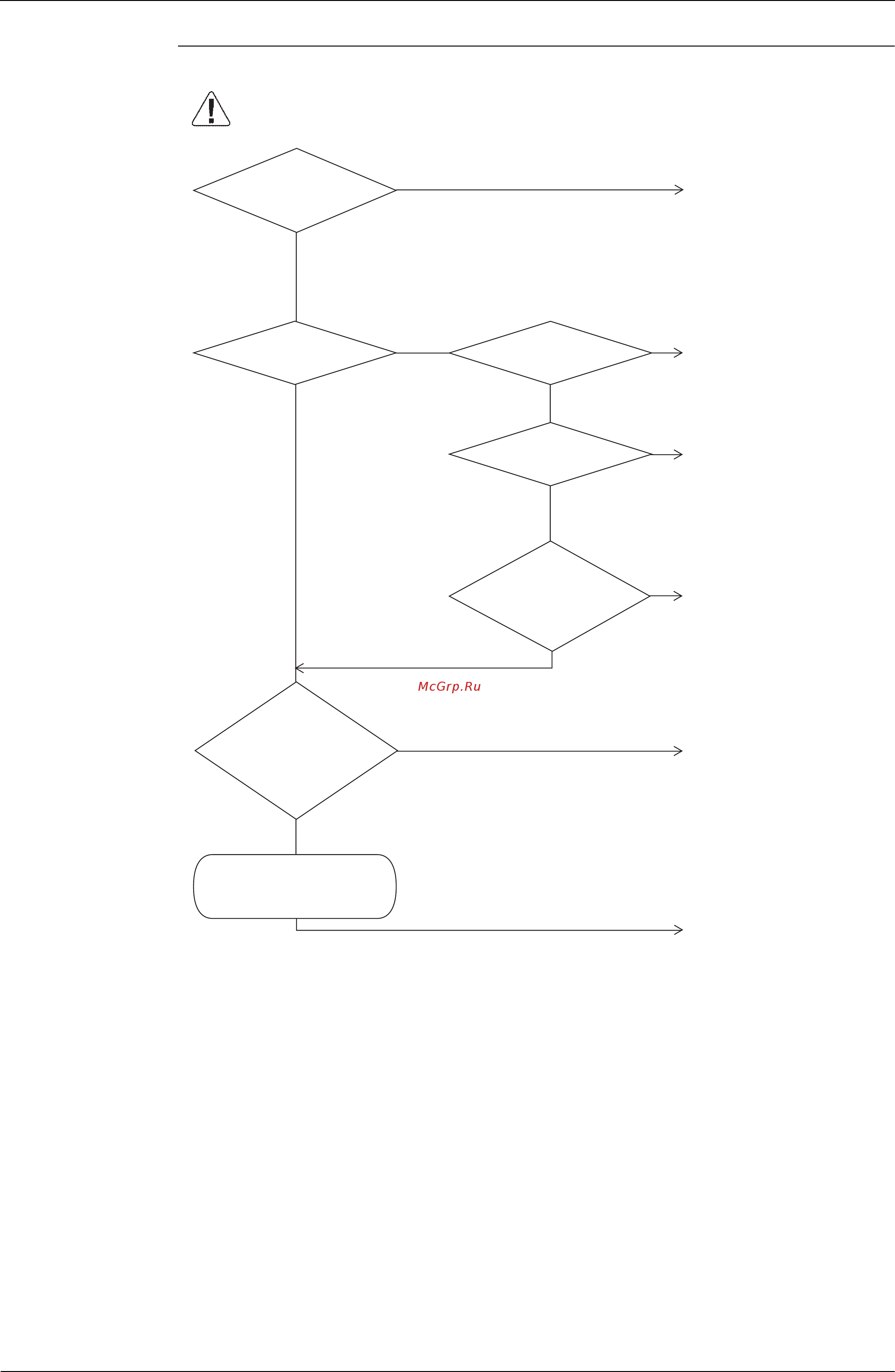

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2834)
Caution
Cannot be used in
combination with a wiring
adaptor for electrical
appendices. Remove the
wiring adaptor for electrical
appendicesand reset the
power supply for all optional
controllers for centralized
control simultaneously.
Schedule timer and data
station cannot be used in
combination. Disconnect
either the schedule timer or
datastation
and reset the
power
supply for all optional
controllers for centralized
control simultaneously.
Schedule timer and parallel
interface cannot be used in
combination. Disconnect
either the schedule timer or
parallel interface and reset
the power supply for all
optional controllers for
centralized control
simultaneously.
Disconnect the schedule
timer's individual / comb
ined
connector and res
et the
power supply for all optional
controllers for centralized
control simultaneously.
Arrange so that the
connector for setting master
control is connected to one
controller for centralized
control and reset the power
supply for all optional
controllers for centralized
control simultaneously.
Disconnect the connector for
setting master control from
the master controller,
connect to another optional
controller for centralized
control and simultaneously
res
et all optional controller
s
for centralized control again.
The controller connected by
the connector for setting
master control when the
malfunction is cleared is
defective and must be
replaced.
Reset the power supply for
all optional controllers for
centralized control
simultaneously.
Is
the wiring adaptor for
electrical appendices
connected?
Isaschedule timer
connected?
Are
there two
or more optional
controllers for centralized
control connected with the
connector for setting
master
control?
Isa pa
rallel interface
connected?
Is the
schedule timer's
individual/combined
connector
connected?
Isa datastation
connected?
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
If the malfunction isstill not cleared:
YES
