SiE39-404 Wiring Diagrams for Reference
Appendix 279

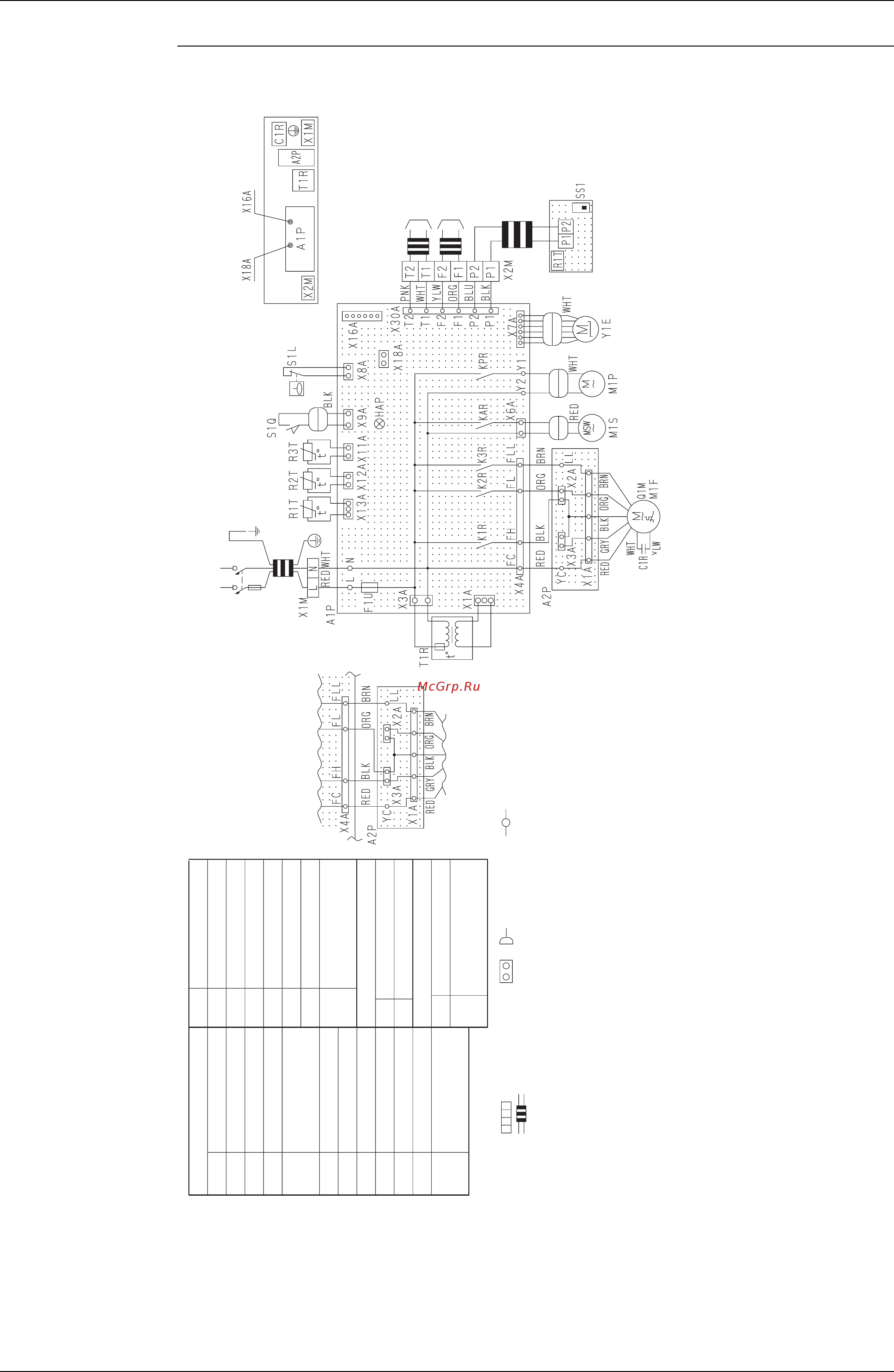

FXKQ25M / 32M / 40M / 63MVE
A1P
A2P
C1R
F1U
HAP
K1R-K3R
KAR
KPR
M1F
M1P
M1S
Q1M
Printed circuit board
Terminal board
Capacitor (M1F)
Fuse (훾, 5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic relay (M1F)
Magnetic relay (M1S)
Magnetic relay (M1P)
Motor (Indoor fan)
Motor (Drain pump)
Motor (Swing flap)
Thermo switch
(M1F embedded)
R1T
SS1
Thermistor (Air)
Selector switch (Main/Sub)
Wired remote control
Indoor unit
1. : Terminal block, , : Connector, : Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in accordance with the
attached installation manual.
4. When connecting the input wires from outside, forced off or on/off control operation
can be selected by remote control.
In details, refer to the installation manual attached the unit.
5. In case high E.S.P. operation, change over the wiring connection from X2A to X3A.
6. Symbolsshowsas follows. (PNK: pink, WHT: white, YLW: yellow, ORG: orange,
BLU: blue, BLK: black, RED: red, BRN: brown, GRY: gray)
7. Use copper conductors only.
R1T
R2T•R3T
S1L
S1Q
T1R
X1M
X2M
Y1E
Thermistor (Air)
Thermistor (Coil)
Float switch
Limit switch (Swing flap)
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block (Control)
Electronic expansion
valve
X16A
X18A
Connector (Adaptor for wiring)
Connector (Wiring adaptor
for electorical appendices)
Connector for optional parts
Power supply
Note: 2
Transmission wiring
central remote control
Note: 4
Input from outside
Wired remote control
(Optional accessory)
220-240V
~
50Hz
220V
~
60Hz
Electric partsbox
Notes:
Note: 5
3D039564A
