SiE39-404 Wiring Diagrams for Reference
Appendix 283

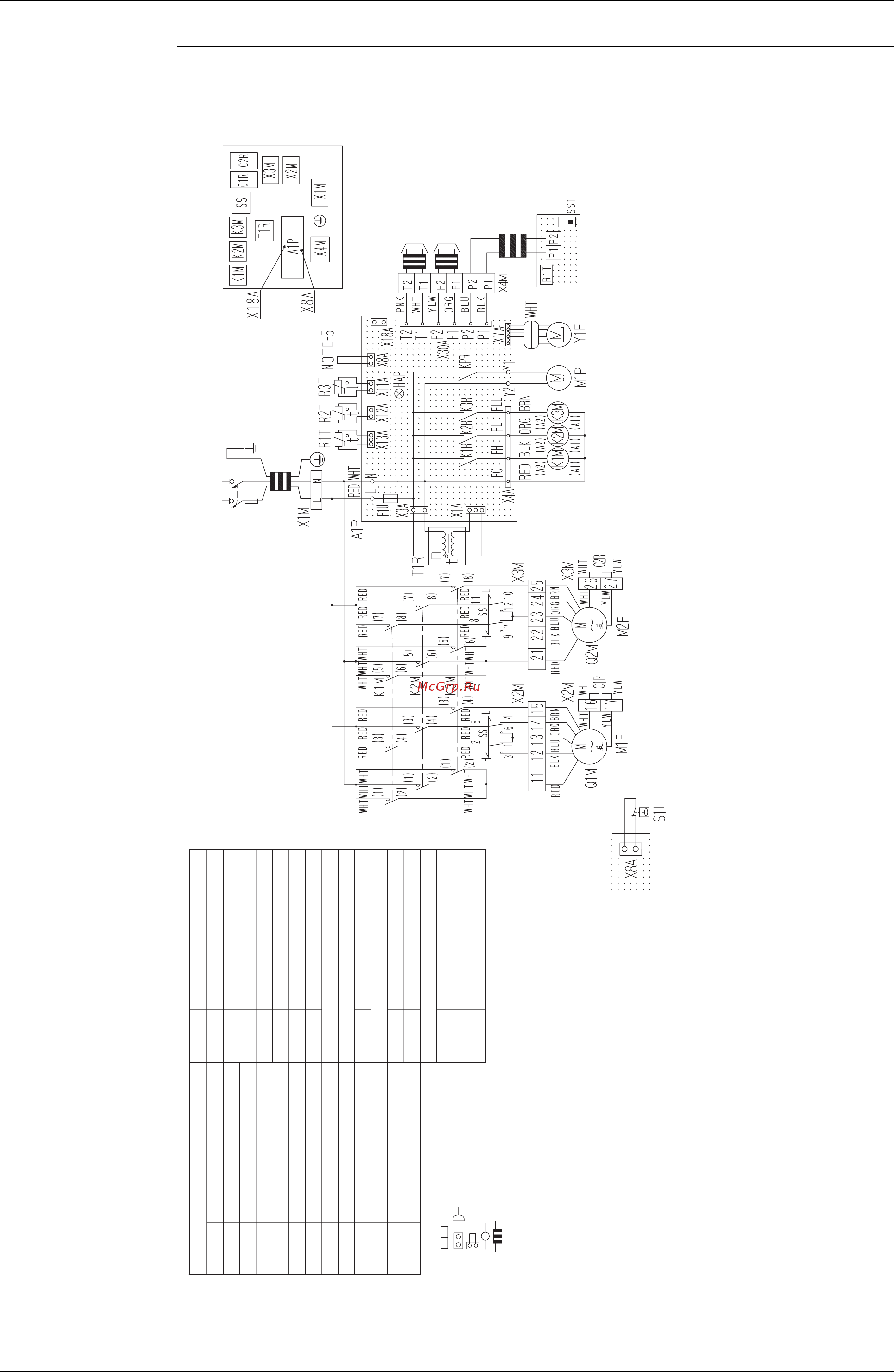

FXMQ200M / 250MVE
3D039621A
A1P
C1R•C2R
F1U
HAP
K1M
K2M
K3M
K1R-K3R
KPR
M1F•M2F
Q1M•Q2M
Printed circuit board
Capacitor (M1F • 2F)
Fuse (, 5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic contactor (M1F • 2F)
Magnetic contactor (M1F • 2F)
Magnetic contactor (M1F • 2F)
Magnetic relay (M1F • 2F)
Magnetic relay (M1P)
Motor (Indoor fan)
Thermo switch
(M1F • 2F embedded)
R1T
R2T•R3T
SS
T1R
X1M
X2M-X3M
X4M
Y1E
Thermistor (Air)
Thermistor (Coil)
Selector switch
(Static pressure)
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block
Terminal block (Control)
Electronic expansion valve
R1T
SS1
Thermistor (Air)
Selector switch (Main/Sub)
Wired remote control
Indoor unit
M1P
Motor (Drain pump)
Optional parts
X8A
X18A
Connector (Float switch)
Connector (Wiring adaptor for
electorical appendices)
Connector for optiona
l parts
Notes:
1. : Terminal block
, : Connector
: Short circuit connector
: Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in accordance with the
attached instruction manual.
4. When connecting the input wires from outside, forced off or on/off control operation
can be selected by remote control.
In details, refer to the installation manual attached the unit.
5. In case installing the drain pump, remove the short circ
uit connector of X8A and
execute the additional wiring for float switch and drain pump.
6. Symbolsshowsas follows. (PNK; pink, WHT: white, YLW: yellow,
ORG: orange, BLU: blue, BLK: black, RED: red, BRN: brown)
7. Use copper conductors only.
8. In case high E.S.P. operation, change the switch (SS) for H.
Note: 3
Transmission wiring
central remote control
Note: 4
Input from outside
Wired remote control
(Optional a
ccessory)
Power
supply
Electric partsbox
220-240V
~
50Hz
220V
~
60Hz
