SiE39-404 Troubleshooting by Indication on the Remote Controller
Troubleshooting 177
2.4 “A6” Indoor Unit: Fan Motor (M1F) Lock, Overload
Remote
Controller
Display
A6
Applicable
Models
All indoor units
Method of
Malfunction
Detection
Detection by failure of signal for detecting number of turns to come from the fan motor
Malfunction
Decision
Conditions
When number of turns can’t be detected even when output voltage to the fan is maximum
Supposed
Causes
Fan motor lock
Disconnected or faulty wiring between fan motor and PC board

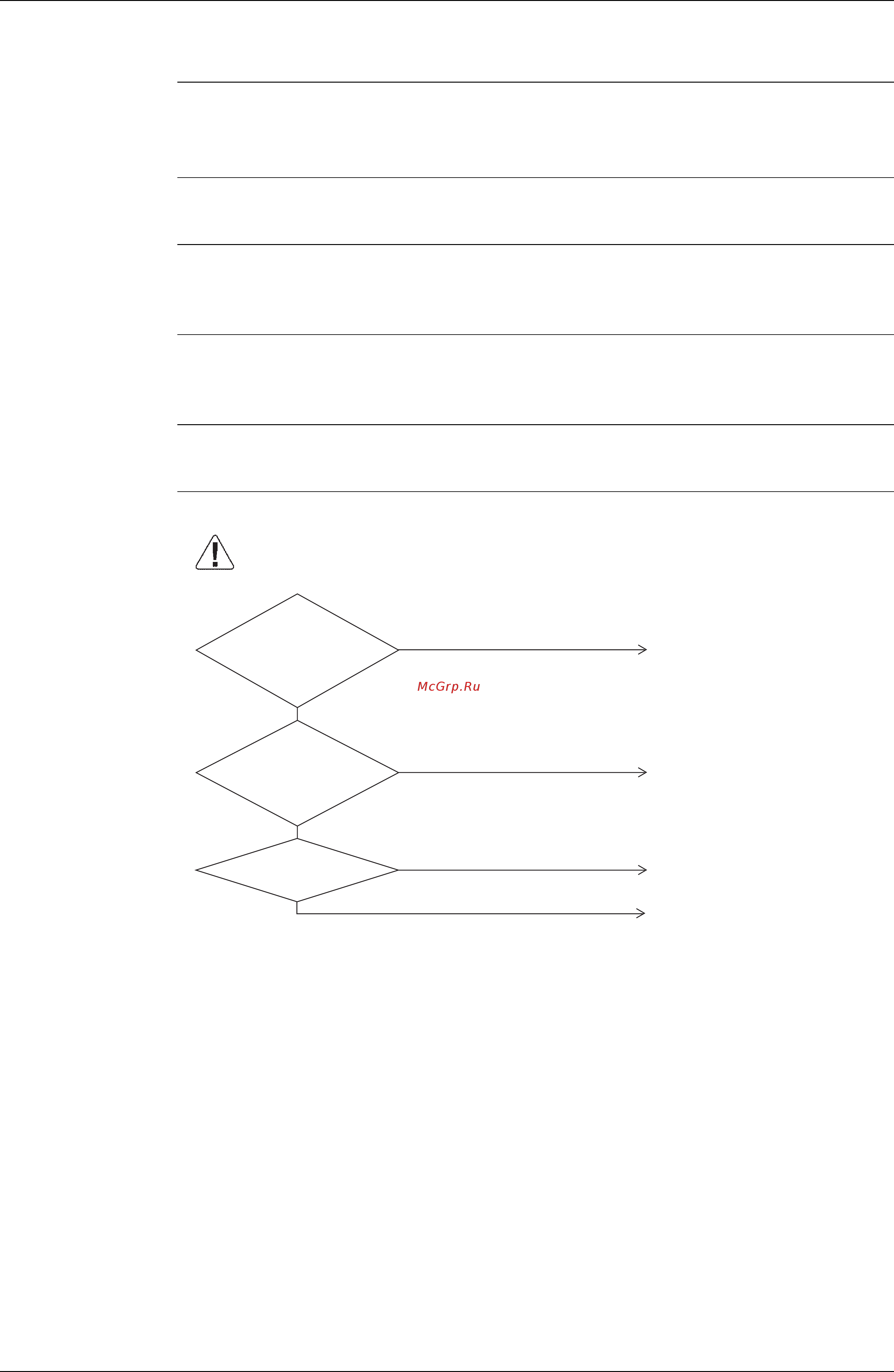

Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Connect the wiring and turn on
again.
Fix the wiring and turn on again.
Replace the indoor unit PC board.
Replace the fan motor.
(V2779)
Is the
wiring from the fan
motor securely connected
to connectors on the
indoor unit PC
board?
Wiring
between the
indoor unit PC board and
fan motor is
disconnected.
Does the fan motor run?
NO
NO
NO
YES
YES
YES
