Daikin RXYQ16M7W1B [275/344] Refrigerant pipe connection port diameters
![Daikin RXYQ16M7W1B [275/344] Refrigerant pipe connection port diameters](/views2/1707433/page275/bg113.png)

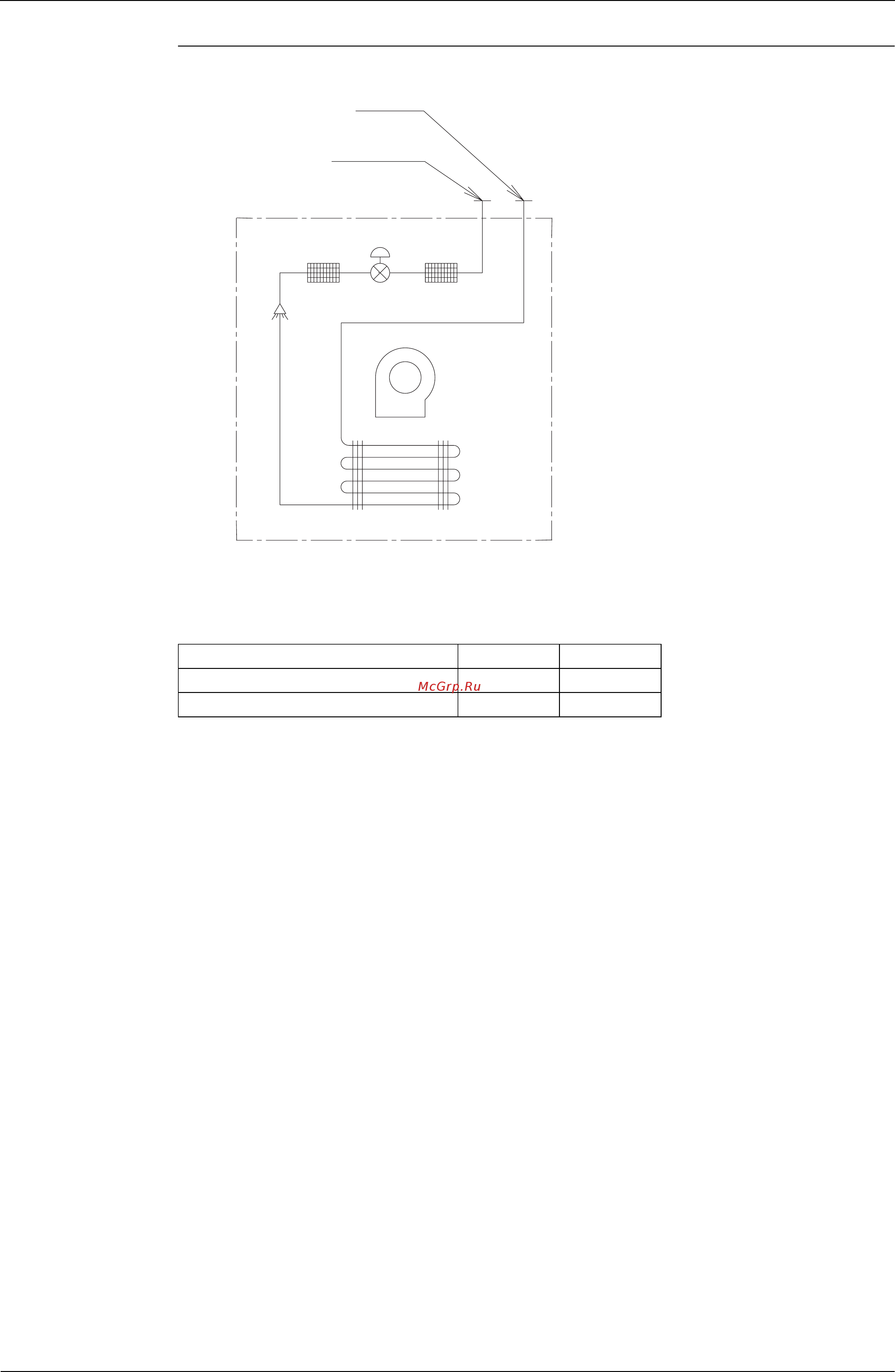

Piping Diagrams SiE39-404
264 Appendix
FXDQ
Refrigerant pipe connection port diameters
Gas side
Liquid side
Filter
Filter
Fan
Indoor heat exchanger
Electronic
expansion valve
4D043864A
(mm)
Model Gas Liquid
FXDQ20N / 25N / 32N / 40N / 50NVE φ12.7 φ6.4
FXDQ63NVE φ15.9 φ9.5
