Field Setting SiE39-404
134 Test Operation
Setting by pushbutton switches
The following settings are made by pushbutton switches on PC board.
In case of multi-outdoor unit system, various items should be set with the master unit.
(Setting with the slave unit is disabled.)
The master unit and slave unit can be discriminated with the LED indication as shown below.
(Factory setting)
There are the following three setting modes.
c Setting mode 1 (H1P off)
Initial status (when normal) : Used to select the cool/heat setting. Also indicates during
“abnormal”, “low noise control” and “demand control”.
d Setting mode 2 (H1P on)
Used to modify the operating status and to set program addresses, etc. Usually used in
servicing the system.
e Monitor mode (H1P blinks)
Used to check the program made in Setting mode 2.

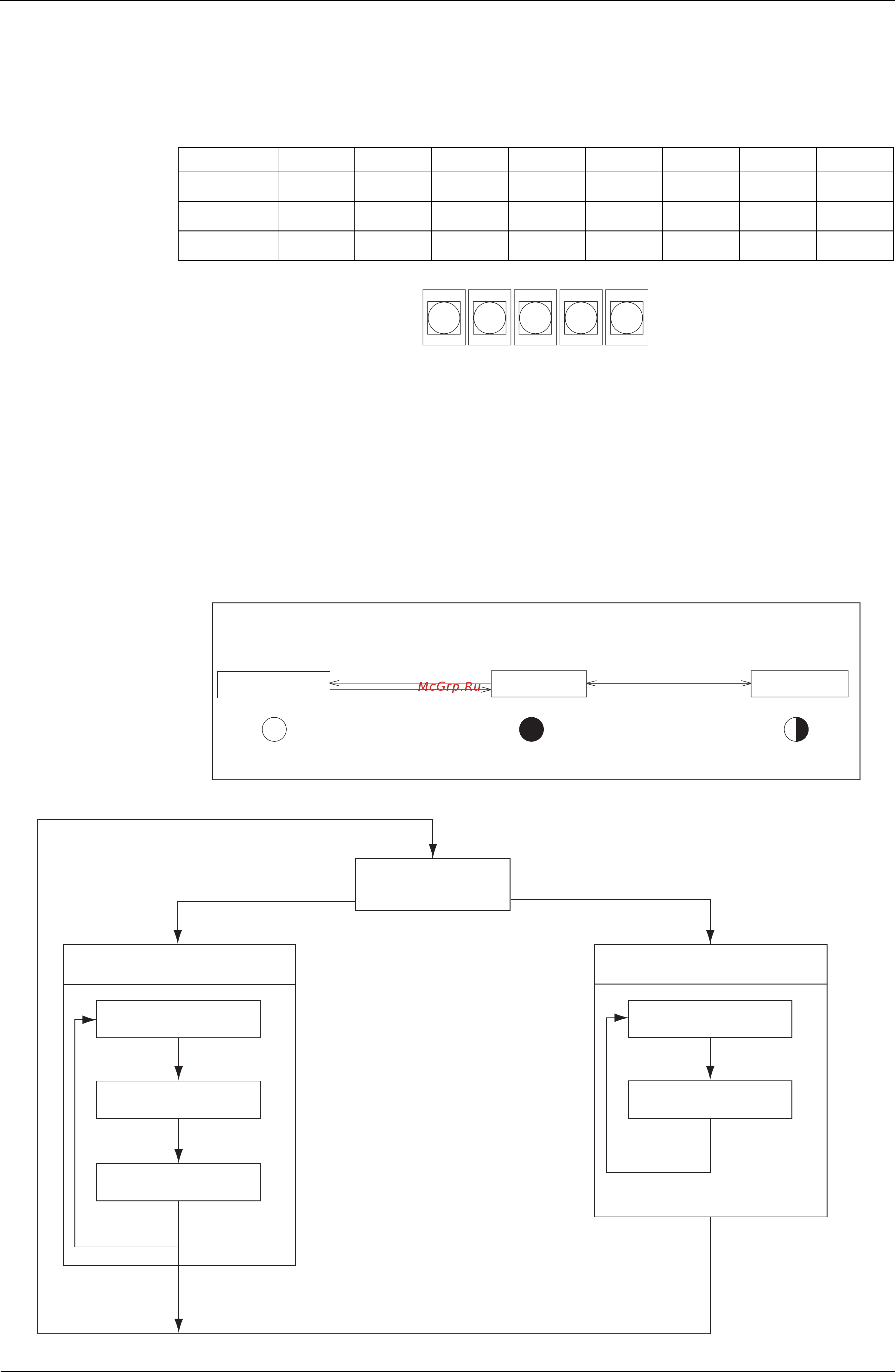

Mode changing procedure
Mode changing procedure
H1P H2P H3P H4P H5P H6P H7P H8P
Master unit
77877778
Slave unit 1
77777779
Slave unit 2
77777777
BS1 BS2 BS3 BS4 BS5
MODE
SET
RETURN
TESTRESET
(V2760)
H1PH1PH1P
MODE
Push the BS1 (MODE button) one time.
Off
Push and hold the BS1
(MODE button) for 5 seconds.
(Normal)
Push the BS1 (MODE button)
one time.
Setting mode 2
Setting mode 1
Monitor mode
MODE
Blinking
(V2761)
Using the MODE button, the modes can be changed as follows.
MODE
On
Press BS1 (MODE button) for more than 5sec.
Setting mode 2
Setting item selection (Set)
Setting condition
selection (Set)
Setting condition
(Contents) display
Press BS3
(RETURN button)
Press BS3
(RETURN button)
Press BS3
(RETURN button)
Press BS1
(MODE button)
Setting mode 1
(Initial condition)
‘Set): Select mode with BS2 (SET button) in each selection step.
Press BS3
(RETURN button)
Press BS1 (MODE button)
Monitor mode
Check item selection (Set)
Press BS3
(RETURN button)
Contents display
Press BS1
(MODE button)
(V2762)
