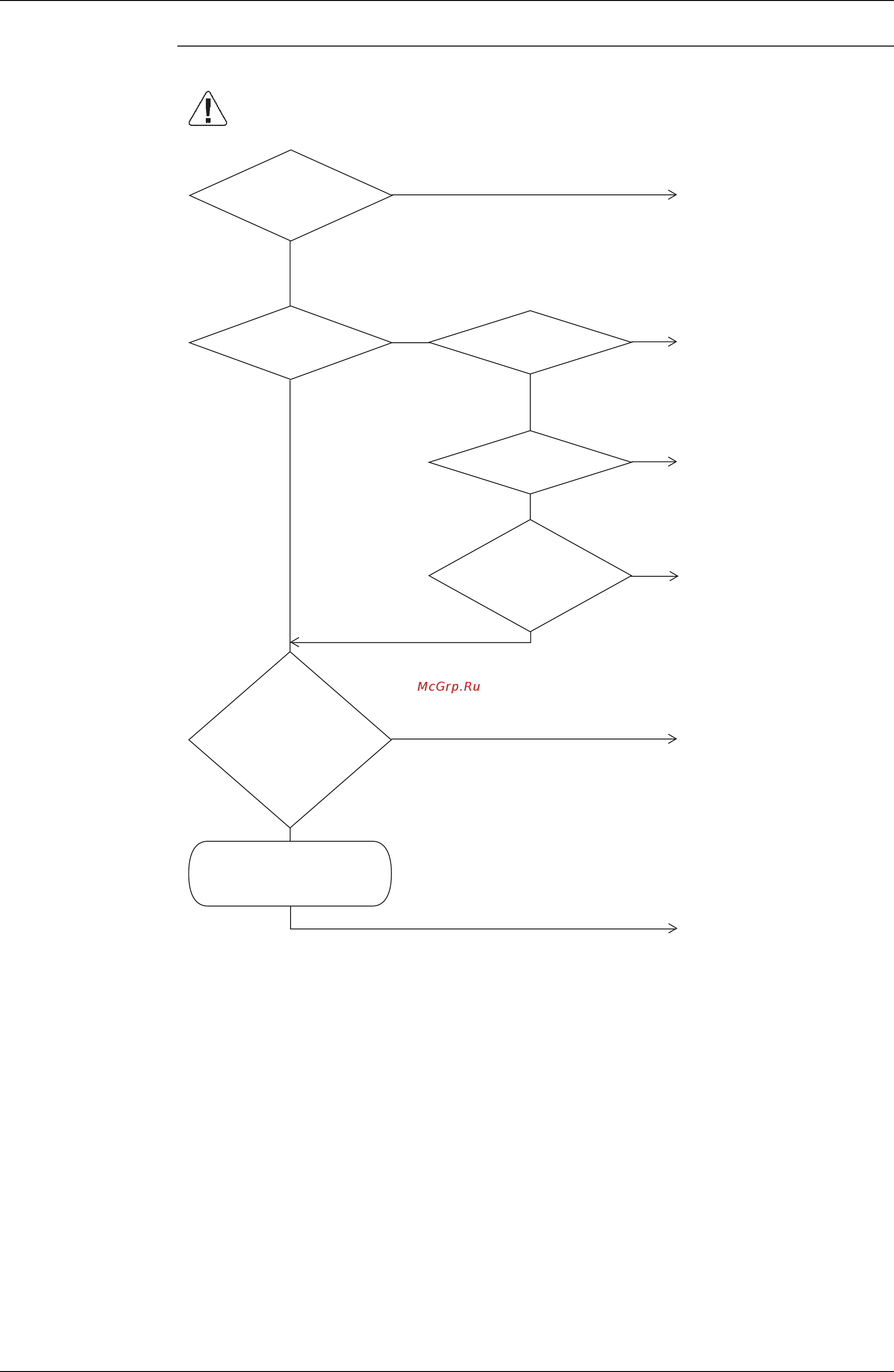

SiE39-404 Troubleshooting (OP: Schedule Timer)
Troubleshooting 247
Troubleshooting
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Caution
Disconnect the schedule
timer's individual / combined
connector and reset the
power supply for all optional
controllers for centralized
control simultaneously.
Arrange so that the connector
for setting master control is
connected to one controller
for centralized control and
reset the power supply for all
optional controllers for
centralized control
simultaneously.
Disconnect the connector for
setting master control from
the master controller, connect
to another optional controller
for centralized control a
nd
simultaneously reset all
optional controllers for
centralized control again. The
controller connected by the
connector for setting master
control when the malfunction
is cleared is defective and
must be replaced.
Reset the power supply for
all optional controllers for
centralized control
simultaneously.
Is the schedule
timer connected?
Are
there two or
more optional
controllers
for centralized control
connected with the
connector for setting
master
control?
Is the schedule
timer's individual/combined
connector connected?
Cannot be used in
combination with a wiring
adaptor for electrical
appendices. Remove the
wiring adaptor for electrical
appendicesand reset the
power supply for all optional
controllers for centralized
control simultaneously.
Is the wiring
adaptor for electrical
appendices
connected?
Schedule timer and data
station ca
nnot be used in
combination. Disconnect
either the schedule timer or
datastation and reset the
power supply for all optional
controllers for centralized
control simultaneously.
Isa datastation
connected?
Schedule timer and parallel
interface cannot be used in
combination. Disconnect either
the schedule timer or parallel
interface and reset the power
supply for all optional
controllers for centralized
control simultaneously.
Isa parallel interface
connected?
(V2839)
YES
YES YES
NO
NO
NO
YES
NO
YES
NO
NO
YES
If the malfunction isstill not cleared:
