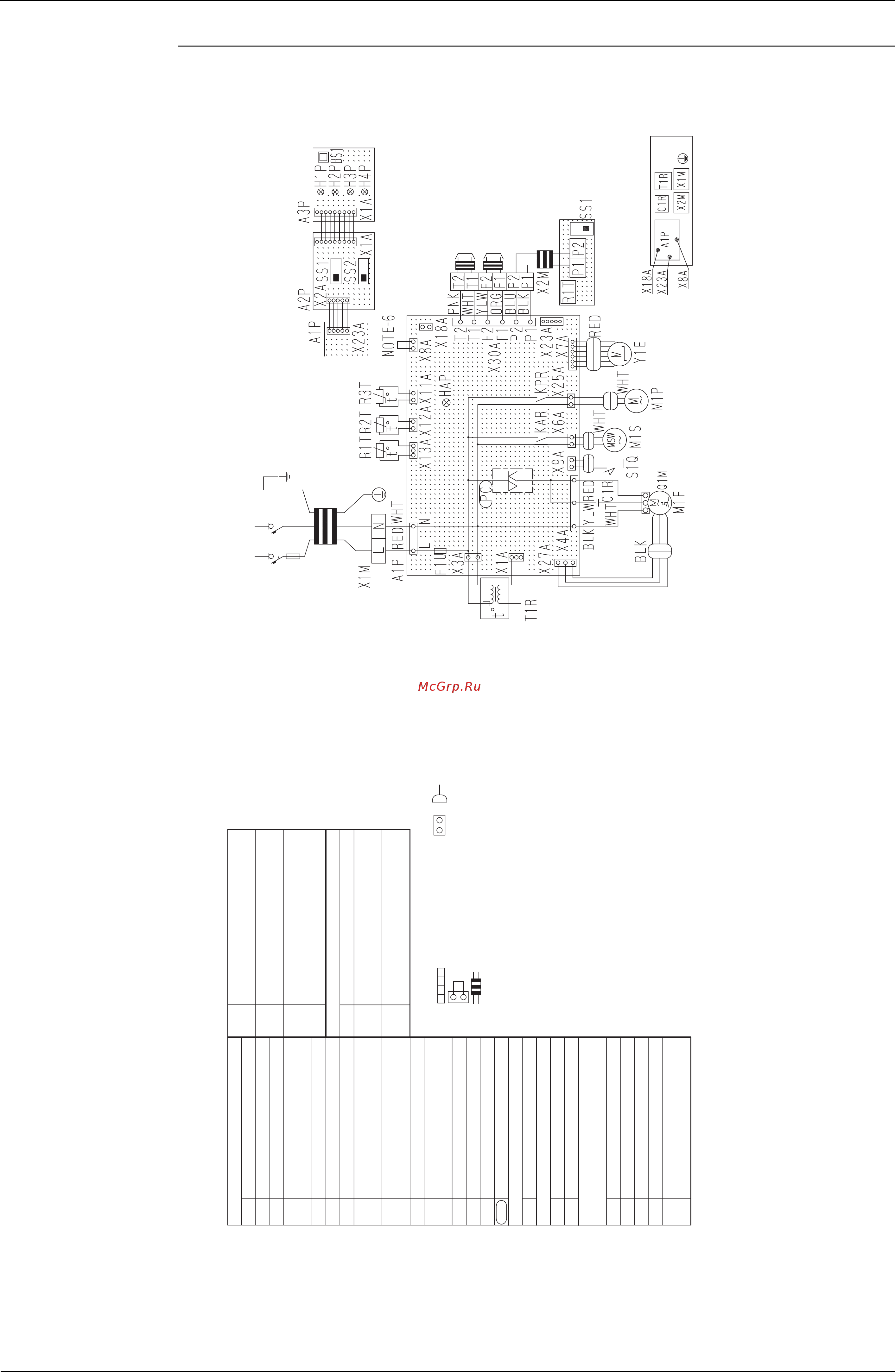

Wiring Diagrams for Reference SiE39-404
284 Appendix
FXHQ32M / 63M / 100MVE
3D039801C
A1P
C1R
F1U
HAP
KAR
KPR
M1F
M1S
Q1M
R1T
R2T
R3T
S1Q
T1R
X1M
X2M
Y1E
PC
Printed circuit board
Capacitor (M1F)
Fuse (훾, 5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic relay (L1S)
Magnetic relay (M1P)
Motor (Indoor fan)
Motor (Swing flap)
Thermo switch (M1F embedded)
Thermistor (Air)
Thermistor (Coil liquid)
Thermistor (Coil gas)
Limit switch (Swing flap)
Transformer (220-240V/22V)
Ter min al block (Power)
Ter min al block (Control)
Electronic expansion valve
Phase control circuit
H3P
H4P
SS1
SS2
Light emitting diode (Filter
sign-red)
Light emitting diode
(Defrost-orange)
Selector switch (Main/sub)
Selector switch (Wireless
address set)
Indoor unit
M1P
Motor (Drain pump)
Optional parts
R1T
SS1
Thermistor (Air)
Selector switch (Main/Sub)
Wired remote control
A2P
A3P
BS1
H1P
H2P
Printed circuit board
Printed circuit board
Push botton (On/off)
Light emitting diode (On-red)
Light emitting diode
(Timer-green)
Receiver/Display u
nit (Atta
ched to
infrared remote control
X8A
X18A
X23A
Connector (Float switch)
Connector (Wiring adaptor for
electrical appendices)
Connector (Infrared remote
control)
Connector for optional parts
Notes:
1. : Terminal block, , : Connector
: Short circuit connector
2. : Field wiring
3. In case using central remote control, connect it to the unit in
accordance with the attached instruction manual.
4. X23A is connected when the infrared remote control kit isbeing
used.
5. When connecting the input wires from outside, forced off or on/off
control operation can be selected by remote control. In details,
refer to the installation manual attached the unit.
6. In case installing the dr
ain p
ump, remove the short circuit
connector of X8A and execute the additional wiring for float switch
and drain pump.
7. Symbolsshowsas follows.
(PNK; pink, WHT: white, YLW: yellow, ORG: orange, BLU: blue,
BLK: black, RED: red)
8. Use copper conductors only.
Note: 3
Transmission wiring
central remote control
Note: 5
Input from outside
Note: 4
Receiver/display unit
(infrared remote control)
Wired remote control
(Optional accessory)
Power supply
Electric partsbox
220-240V
~
50Hz
220V
~
60Hz
